General Information
20221016C 7
At the end of this manual, you will find an index and a glossary,
which will help you when studying the manual.
1.3 System Components
A basic AP50 system may consist of the following units (refer to
Figure 1-1):
• AP50 Control Unit with accessories
• Heading sensor
• Rudder Feedback Unit with transmission link
• Junction Unit
• Drive Unit
The basic system can be expanded with remote control unit,
hand held remote and steering lever.

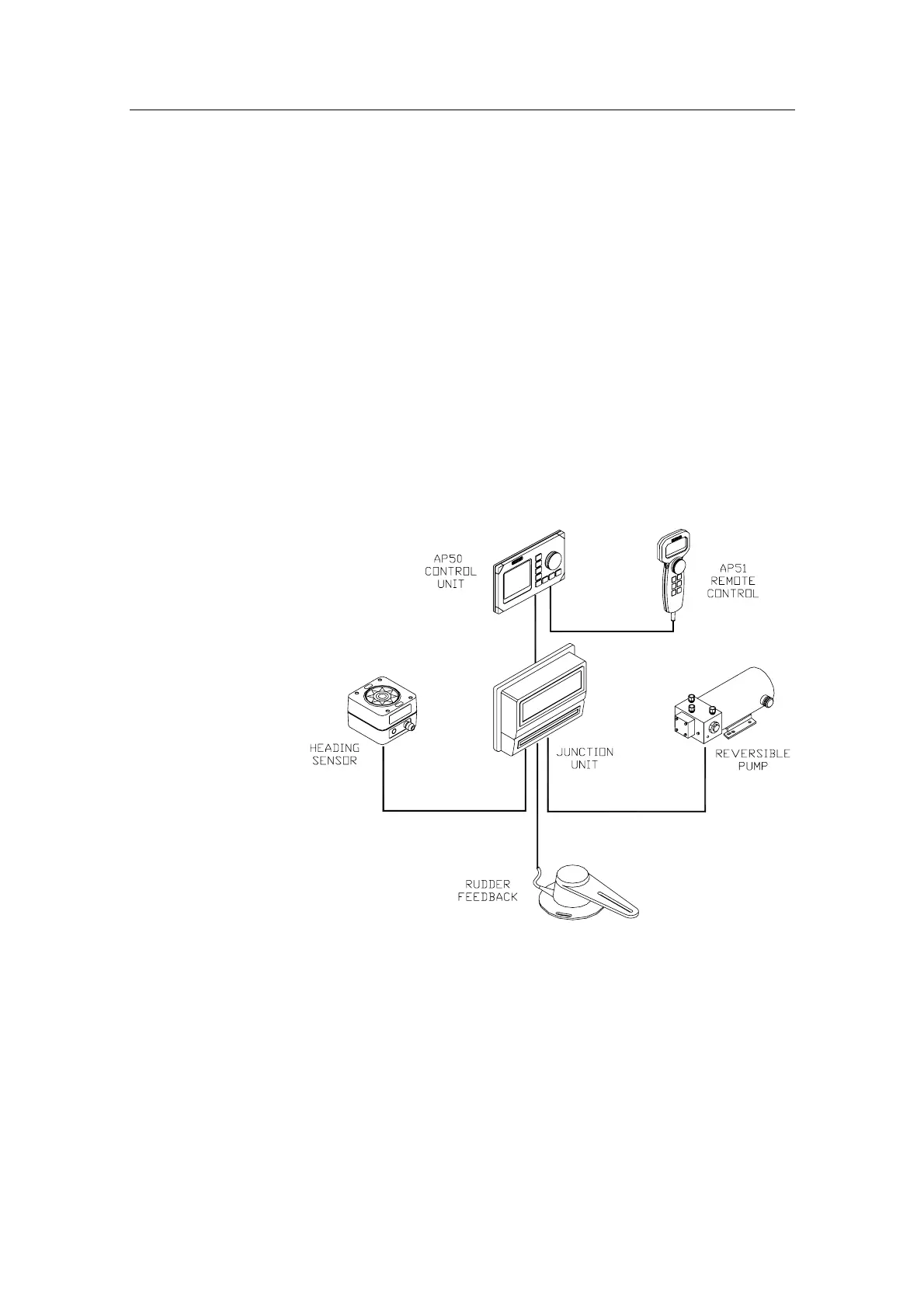

Figure 1-1 AP50 Basic system with AP51 Remote Control
For more information about available system components, refer
to the AP50 Instruction Manual.
