Troubleshooting
4
C451
4-71
2

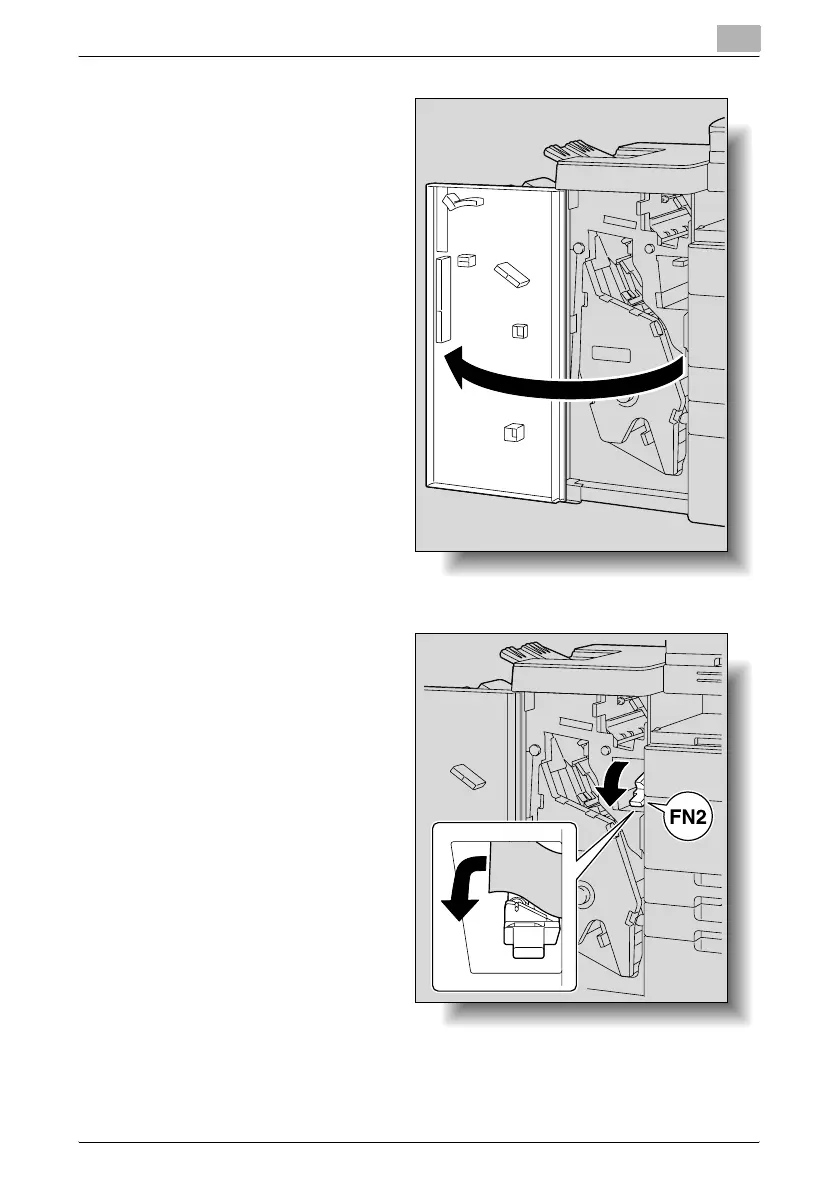

Open the mach
ine’s
front door.
3
Lower guide lever FN2,
and then remove any pa-
per.
4
Return guide lever FN2 to its original position.
340
342
