Troubleshooting
4
C451
4-95
–

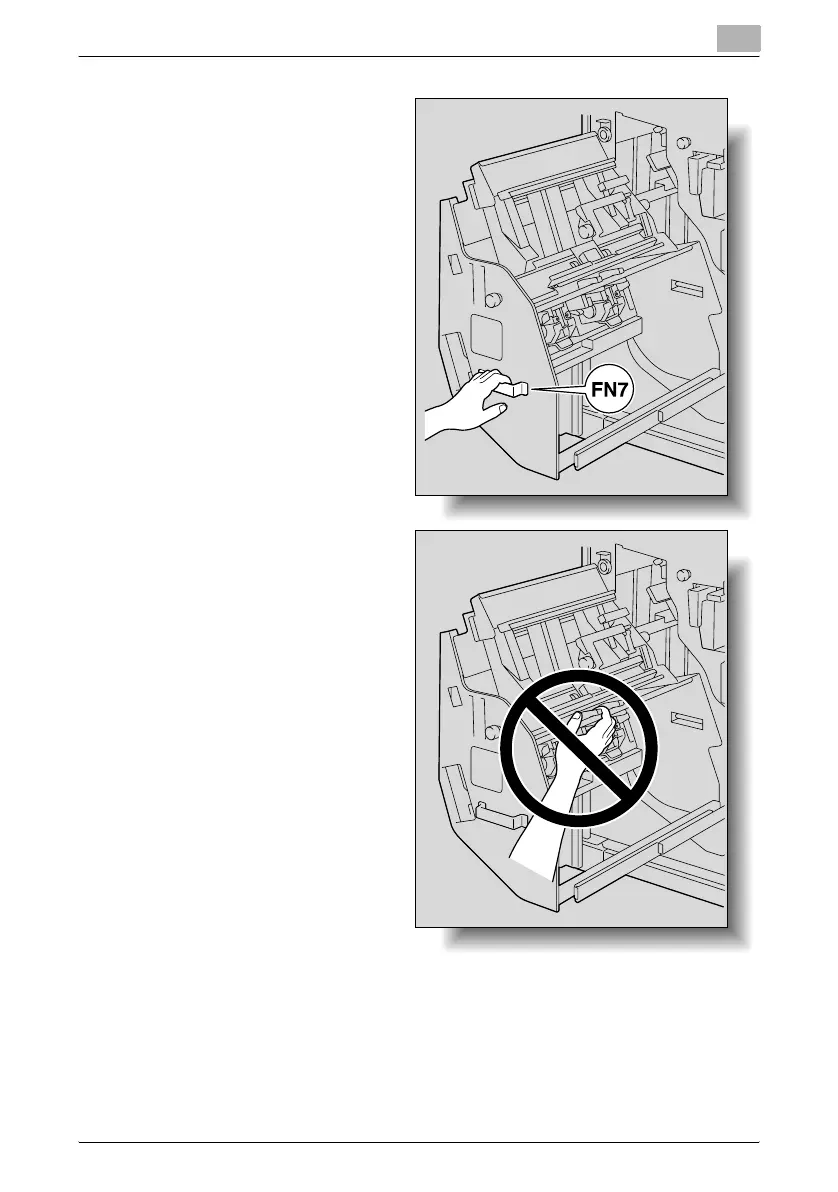

When returning the
stacker unit to its
original position,
grab handle FN7,
otherwise your hand
or fingers may be
pinched.
9
Close the front door.
364
366
