Chapter 8 Appendix
8-5

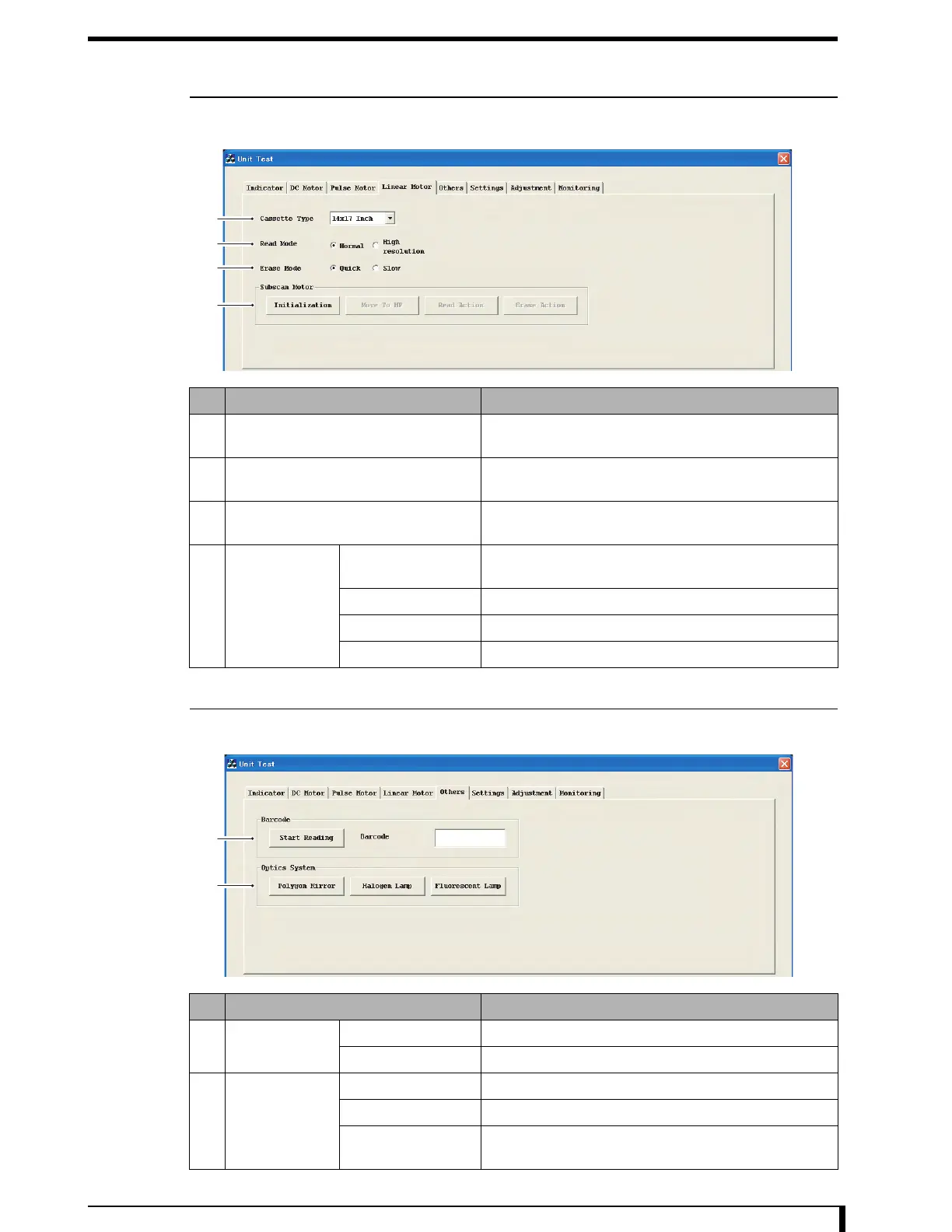

8.1.4 [Linear Motor] Panel
Confirmation of the operation of the subscan unit can be performed in the [Linear Motor] panel.
8.1.5 [Others] Panel
Confirmation of the barcode reader and the optical unit actions can be performed in the [Others] panel.
No. Item/button Description
1 Cassette Type Specify the cassette size to be the standard when the
subscan unit is to be operated.
2 Read Mode Specify the mode of the subscan unit during the
confirmation of the read action.
3 Erase Mode Specify the operating speed during the confirmation of
the erase action.
4 Subscan Motor [Initialization] Move other mechanism away before starting the
operation of the subscan unit.
[Move To HP]
Move the holding plate (optical unit) to the home position.
[Read Action]
Move the
holding plate
to the second front side as in the read action.
[Erase Action]
Move the holding plate to the home position with erase action.
No. Item/button Description
1 Barcode [Start Reading] Instruct the barcode reader to start the read.
Barcode The barcode that was read is displayed.
2 Optics System [Polygon Mirror] Confirm that the polygon mirror rotates properly.
[Halogen Lamp] Confirm that the halogen lamp turns on properly.
[Fluorescent Lamp] Confirm that the fluorescent lamp (hot-cathode tube
lamp) turns on properly.
1
2
3
4
1
2
