26 OPERATION MANUAL
SERVICE AND MAINTENANCE

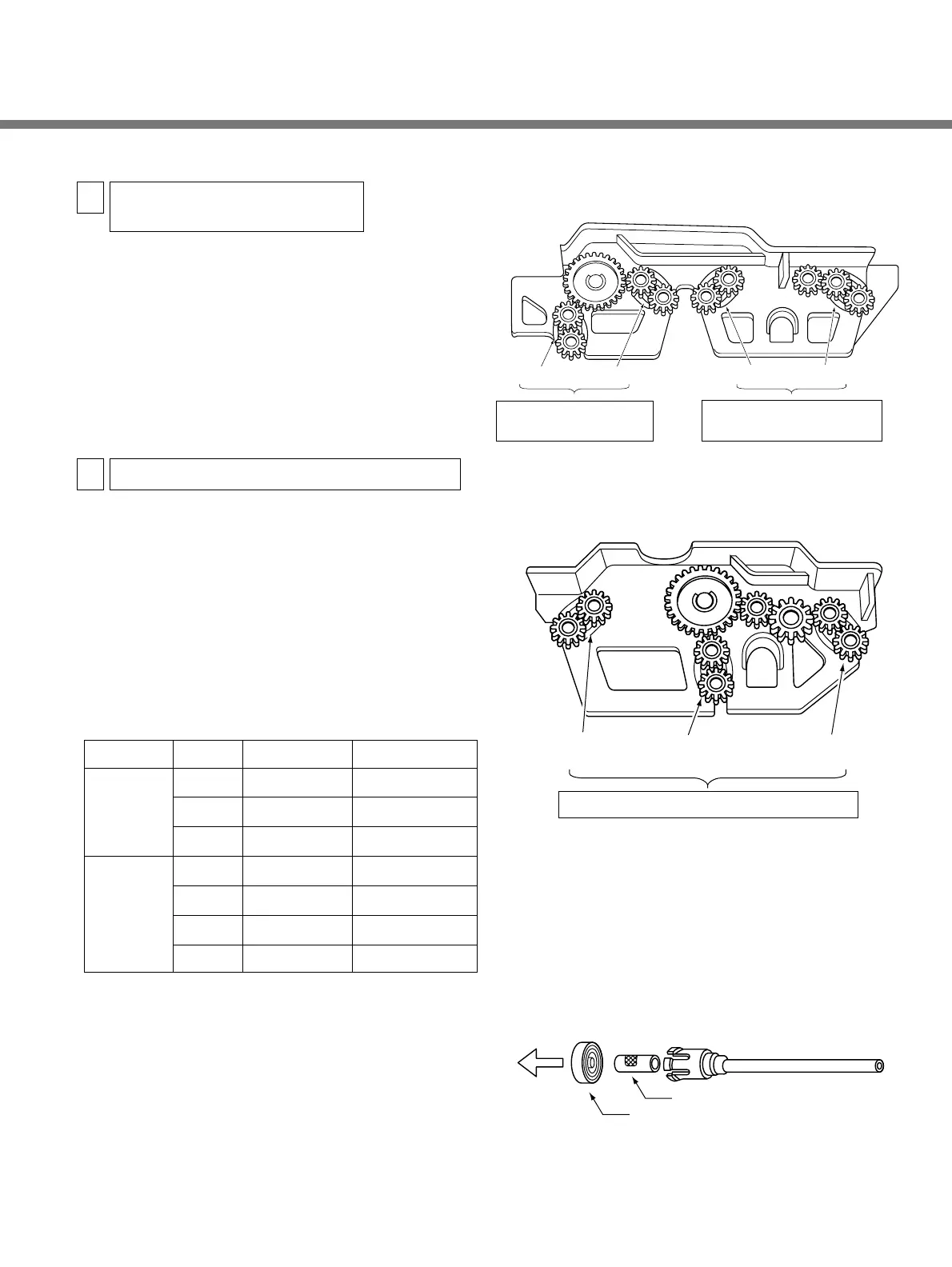

(1) FIX Roller Spring Replacement
After every six months, change the springs on the
rollers that have been in the fixer.
There are two different spring lengths (See the table)
and different places where they are attached, so be
careful to replace them properly. The diagram shows
where the springs are located.
(1)DEV and WASH Roller Spring Replacement
Once every year, change all of the springs on the DEV
rack and the springs on the wash water side of the
FIX/WASH rack.
There are two different spring lengths (See the table)
and different places where they are attached, so be
careful to replace them properly. The diagram shows
where the springs are located.
Table of Roller Spring Replacement
(2)Cleaning the Replenishment Tanks and
Replenishment Hoses
q Scrub the tanks with a sponge (or clean cloth) and
warm water (under 104<).
w Remove the caps in the replenisher supply pipe.
Take out the filters and wash them.
Semiannual Service and
Maintenance
3
Annual Service and Maintenance
4
DEV Rack Springs
™3rd Pair ™1st Pair™2nd Pair
Change once every year(Same on the other side)
FIX/WASH Rack Springs
™4th Pair
Change once every year
(Same on the other side)
™1st Pair
™2nd Pair
™3rd Pair
Change once every 6 months
(Same on the other side)
Replenisher Supply Pipe
™Cap
™Filter
Rack Roller Spring Length Replace
1st pair 74 mm Every year
DEV 2nd pair 80 mm Every year
3rd pair 74 mm Every year
1st pair 80 mm Every 6 month
2nd pair 74 mm Every 6 month
FIX/WASH
3rd pair 74 mm Every year
4th pair 74 mm Every year
To Next Page
