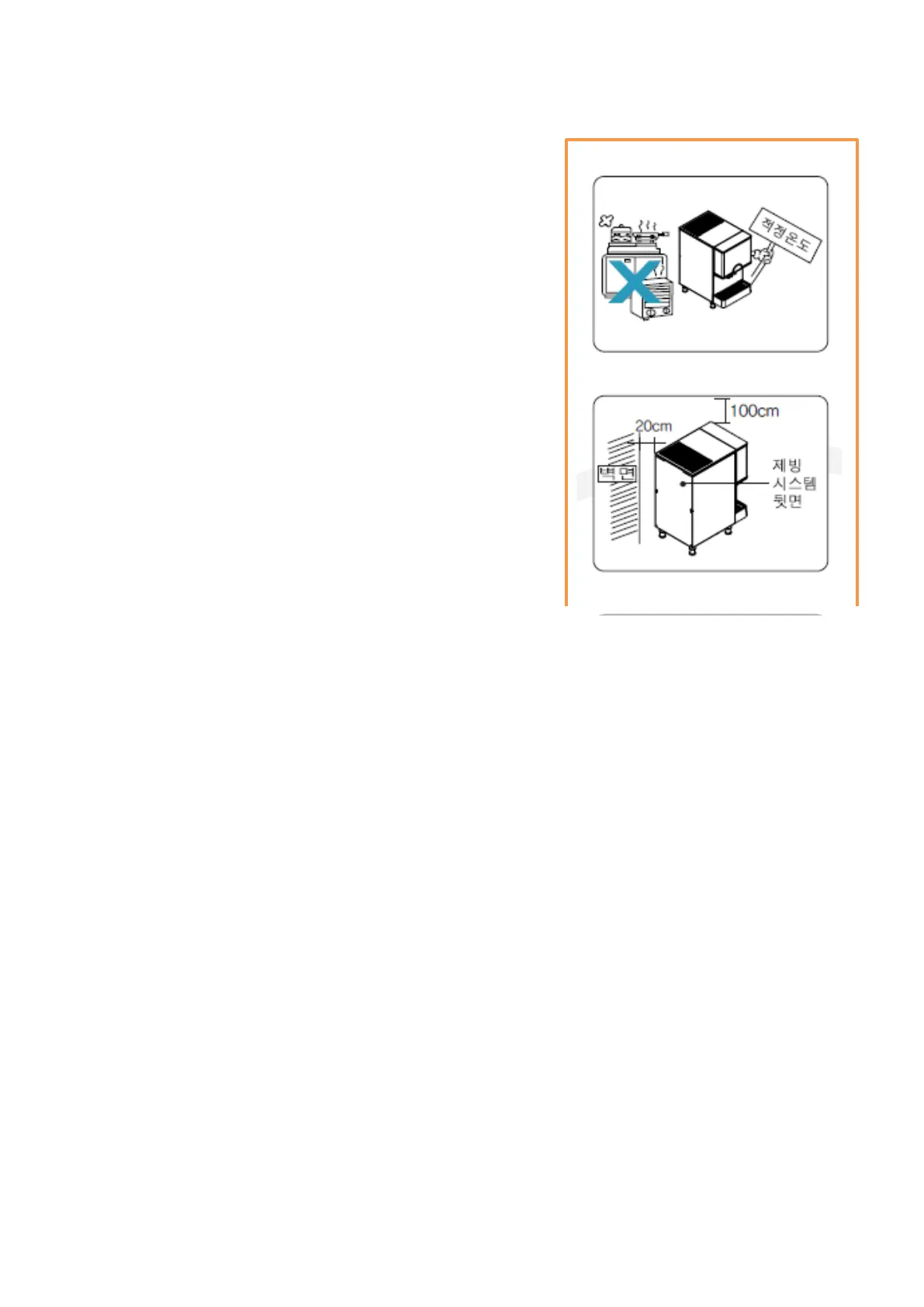

4. How to install
⊙Install in an area without a heat source and good ventalation.
◆ Install in a place where there is no heating device such as a
fireplace or a gas range, and do not install in an area outside
the range of 50-100F.
◆ For normal operation, install the ice maker at least 8"
away from the wall.
◆ For cleaning and maintenance of the auger, a 40" space
should be reserved above the top of the ice maker.
※ Never block the upper vents and do not place any load on it.
8"
40"
6
Ice dispenser must be placed in a well ventilated area
If the ventilation is poor, the ICE MAKING ability will decrease
Installation must be on a flat surface
Unstable installation may cause vibration and noise.
Install on surface with less than 1˚ gradient
It is recommended to install it on a flat surface because
there is a possibility that the product will fall and cause
injury when the installation is on an uneven surface .
