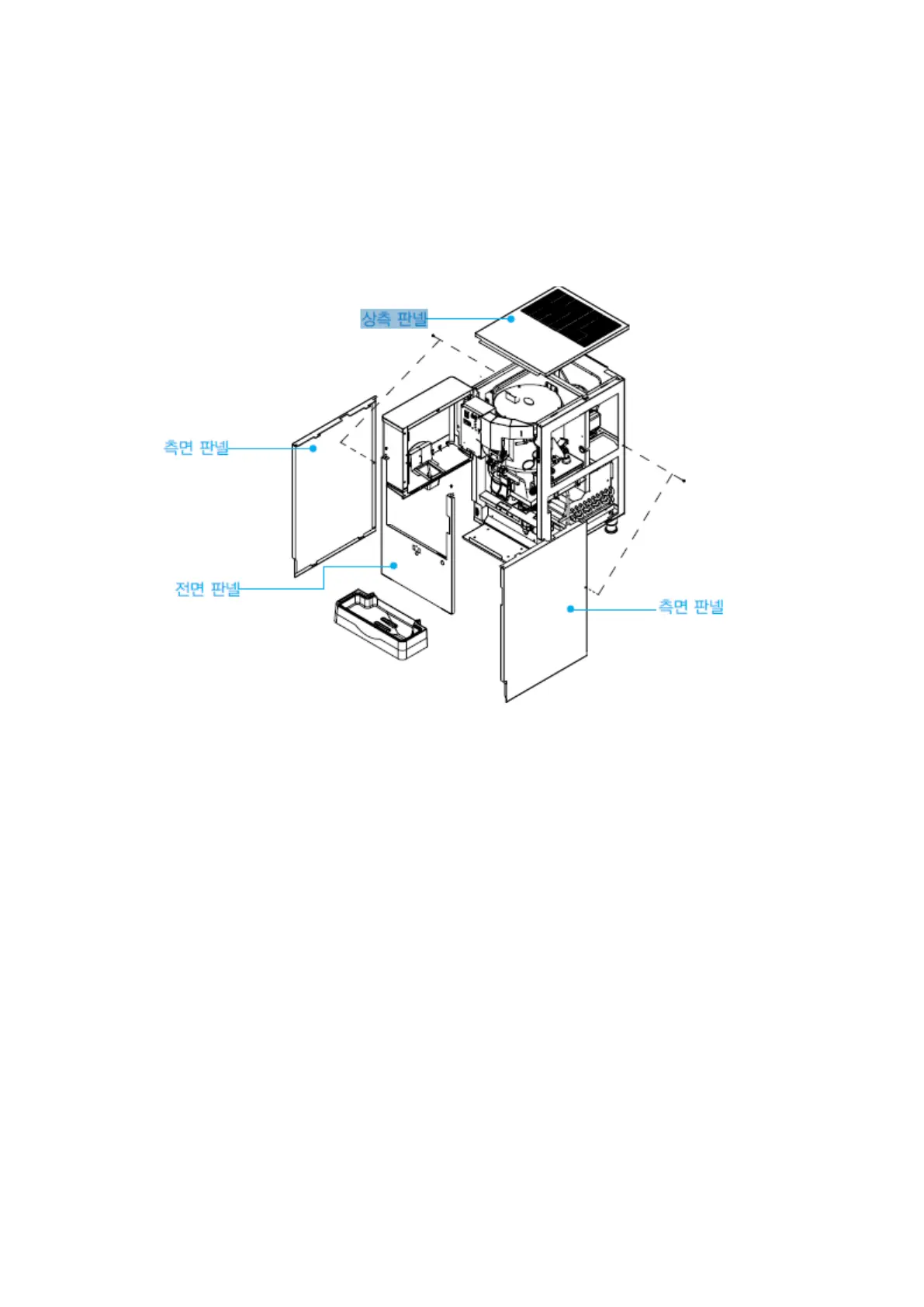

Panel disassembly method

1. Upper panel: Open the front door and lift the upper panel, then the back magnets will

be separated

and disassembled.

2. Front panel: Remove the lower set screws of the drain box, then loosen the set screws

on the top of the front panel and pull out the front panel on both sides.

3. Side panel: Open the door, loosen the screws on the top of the front panel, push the

front panel forward, and slide the side panel forward to remove it.

Please assemble the unit in the reverse order of disassembly.
