Connection of water supply and drainage
[Connection of water and drain hoses]
Division
Proper water temperature
Water pressure
Hose to be used
ICE MAKING water supply
50 ~ 90F 15-70psi
OD ø1/4"
PE TUBE
ICE MAKING drainage -
-
ID ø3/4" hose
If the temperature of the ICE DISPENSER water supply is too high, the ICE DISPENSER capability
may be reduced
9
If the water pressure is too low, it may not be possible to produce ice. In this case, an auxiliary
booster pump should be installed.

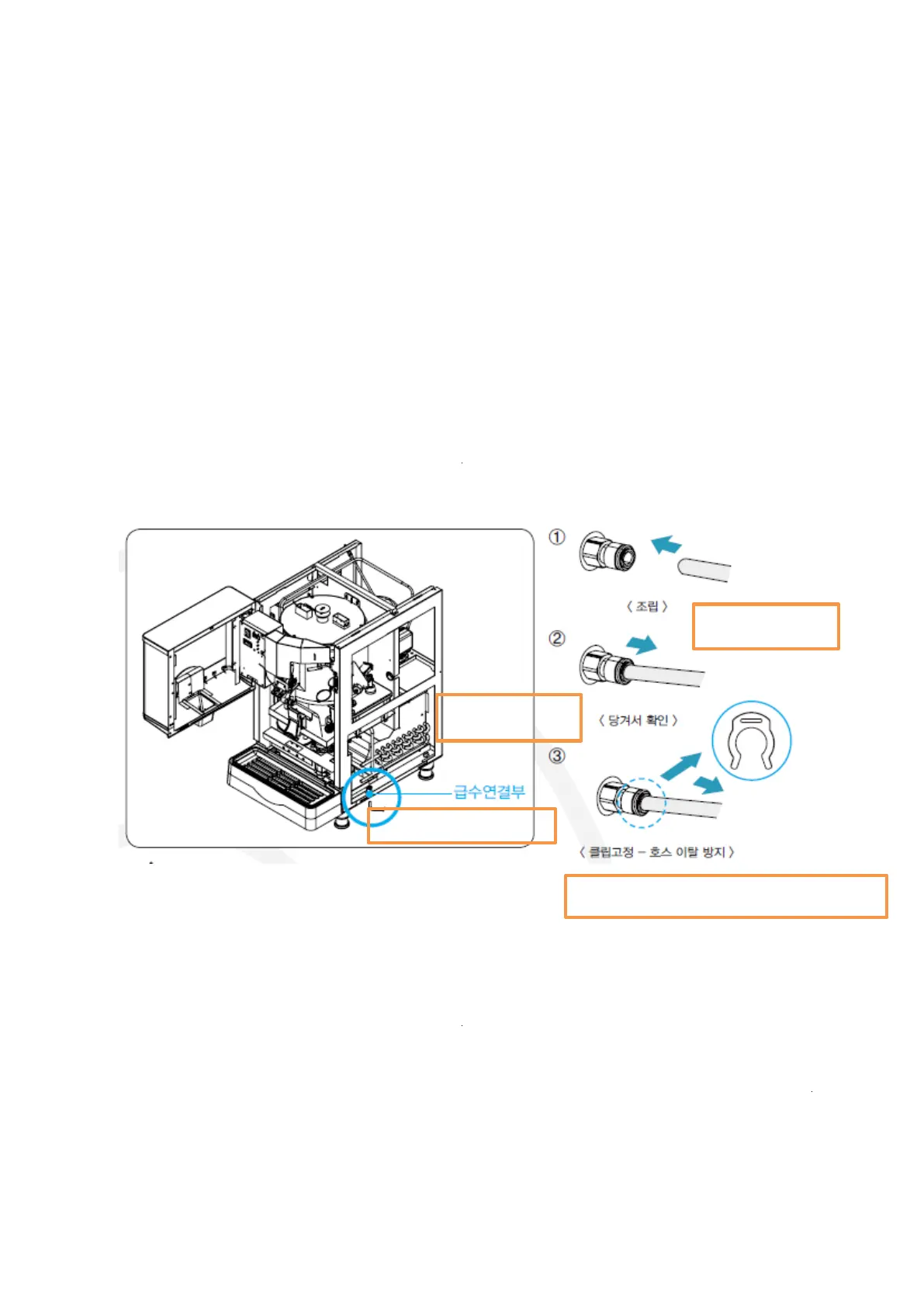

Connect the ø1/4" PE TUBE to the bottom right of the product as shown in the picture and secure
the clip to prevent hose detachment.
ASSEMBLE
PULL AND CONFIRM
WATER CONNECTION
FIX CLIP TO PREVENT HOSE DETACHMENT
After the installation is complete, please switch on the ice dispenser and check for possible leaks in the water supply and
drain.
Connect a hose with an inner diameter of Φ3/4" or more for the ice making drain hose.The drain outlet should be
at least 2" above the drain floor level.
(If the drain hose is not angled correctly(1/4" drop per foot), the drained water may flow back into the ice
maker,contaminate the ice and damage the floor.)
Be careful not to bend the drain hose during the installation and also confirm that the hose is not exposed to fire or sharp objects
which may result in the hose leaking.
(The manufacturer will not be held liable in the event of damage caused.)
