GENERAL INFORMATION
1)

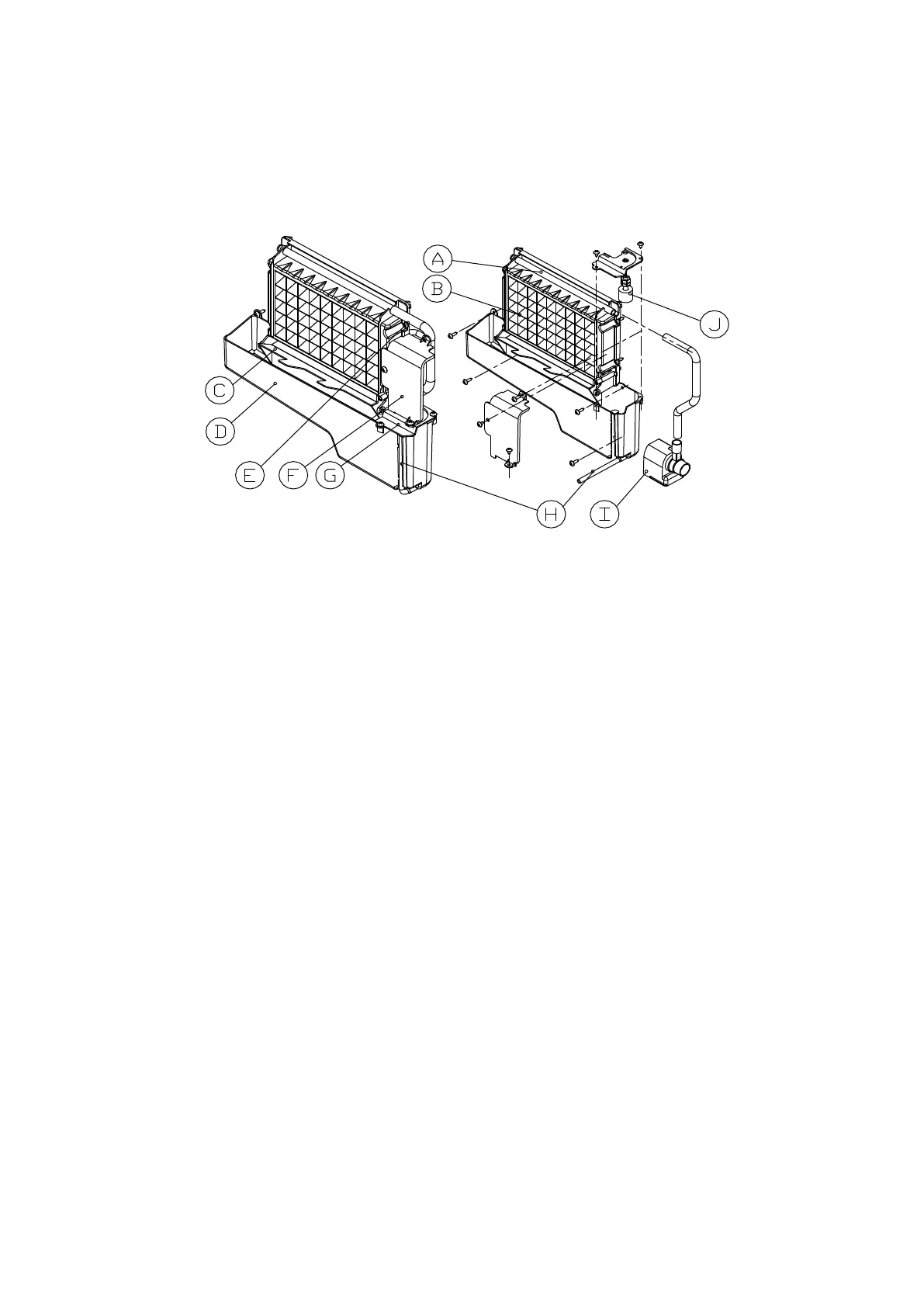

Ice-making and its water t ank parts
A. Water dividing pipe：with nine little holes, water will flow out from these little hole s. And if no
water flows out, can be disassembled and cleaned.
B. Evaporator (ice-making m odule)
C. Ice full detecting board: Use to detect the inner cabinet is full of ice or not, and to check the the
ice-harvest process is over or not.
D．Water tank：
E．Water supplying pipe ：
F．Cover boar d on the right side of the evaporator：
G．Water level switch installing plate：
H．Water drain pipe of the
water tank：when ice-mak
ing, this pipe should be clamped in the slot of
the water tank wall; And when draining, this pipe sho uld be pulled out.
I．Water pump：
J．Water level detecting switch
