7

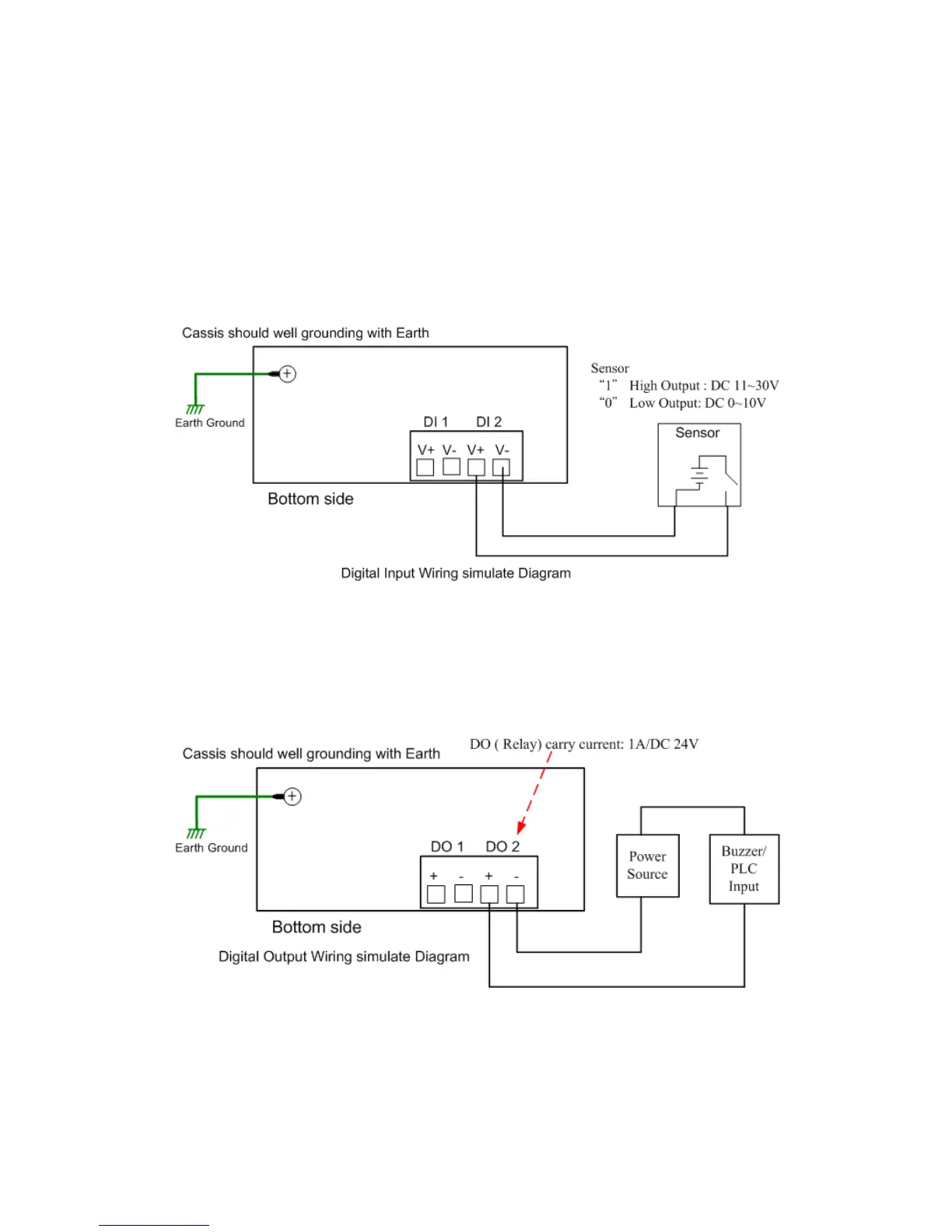

2.3 Wiring Digital Input
JetNet 5010G provides 2 digital inputs. It allows users to connect the termination units’
digital output and manage/monitor the status of the connected unit. The Digital Input pin
can be pulled high or low; thus the connected equipments can actively drive these pins
high or low. The embedded software UI allows you to read and set the value to the
connected device.
The power input voltage of logic low is DC 0~10V. Logic high is DC 11~30V.
Wire the digital input just like wiring the power input introduced in chapter 2.2.
2.4 Wiring Digital Output
JetNet 5010G provides 2 digital outputs, also known as Relay Output. The relay contacts
are energized (open) for normal operation and will close for fault conditions. The fault
conditions include power failure, Ethernet port link break or other pre-defined events
which can be configured in JetNet 5010G UI.
Wiring digital output is exactly the same as wiring power input introduced in chapter 2.2.
2.5 Wiring Earth Ground
To ensure the system will not be damaged by noise or any electrical shock, we suggest
you to make exact connection with JetNet 5010G with Earth Ground.
On the bottom side of JetNet 5010G, there is one earth ground screw. Loosen the earth
ground screw by screw drive; then tighten the screw after earth ground wire is connected.
