Korg M50 User Manual

23
3

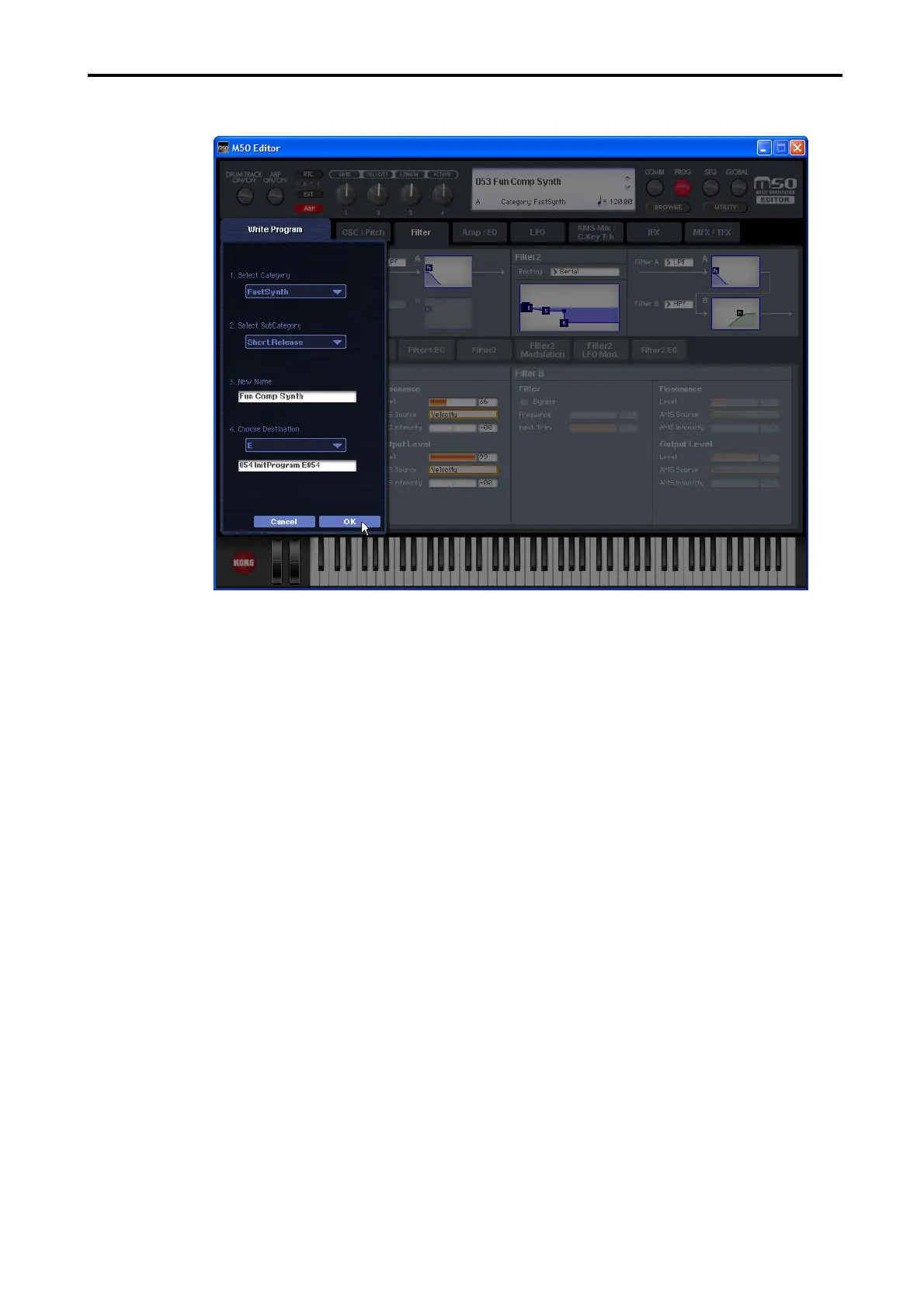

Specify the program name, category, and save destination, and click the [OK] button.
Note:
If you execute a menu command (such as Swap Oscillator) on the M50 itself, the data in the
Editor and the data in the M50 may lose synchronization. In this case, execute a UTILITY menu
command (such as Receive Current Prog) in the Editor to receive a data dump of the current data.

Korg M50 Specifications

General

Polyphony	80 voices
Sound Engine	EDS (Enhanced Definition Synthesis)
Outputs	L/MONO, R, Headphones
MIDI	In, Out, Thru
Storage	SD card slot
Keyboard	61 keys, 73 keys, or 88 keys
Effects	2 master effects
Sequencer	16-track, 128 songs
Display	TouchView graphical interface
Arpeggiator	2 arpeggiators
Presets	608 Programs, 384 Combinations
Controllers	Joystick
Key Action	M50-61/73: Semi-weighted, M50-88: RH3 (Real Weighted Hammer Action 3)
Connectivity	USB
