Korg MS-20 Kit User Manual

10

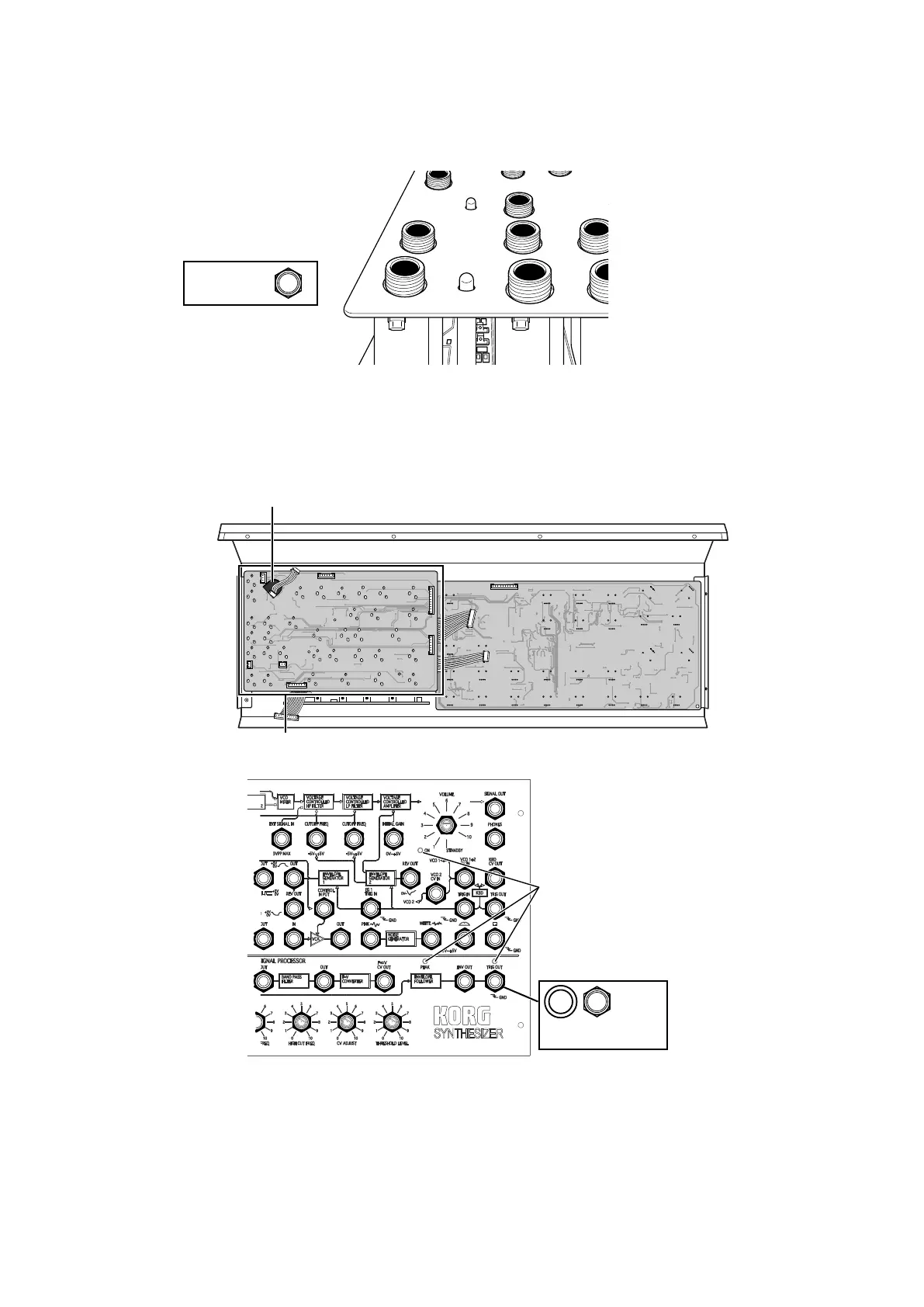

6. Installing the spacer sheet on the panel jack circuit board
Make sure that the three LEDs are correctly positioned, and then install the spacer sheet.
Secure all of the jacks with the included nuts (A).
Caution: Be sure to firmly tighten the nuts so the spacer sheet does not move out of place.
Caution: Be careful that the LEDs are not scratched with the tools.
7. Attaching the panel jack circuit board to the front panel with the included washers (A) and nuts
(A)
Caution: Be careful to avoid injuries to your hands from the terminals.
Caution: Be careful that the panel is not scratched when the included box-end wrench is used to tighten the nuts.
Panel jack circuit board
Feed the wiring harness for the switch VR
circuit board through the hole.
Verify that the LEDs
fit through the front
panel.
Washer (A)
Nut (A)
Nut (A)

Korg MS-20 Kit Specifications

General

External Signal Processor	Yes
Power Supply	AC adapter
Type	Analog Monophonic Synthesizer
Oscillators	2 VCOs
Envelopes	2 EGs (Envelope Generators)
Patch Points	Yes
Keyboard	37 keys
Dimensions	493 x 257 x 208 mm
Connectivity	1/4" Audio Output
