Korg MS-20 Kit User Manual

9
Verify that the LEDs
fit through the front
panel.
Nut (C)

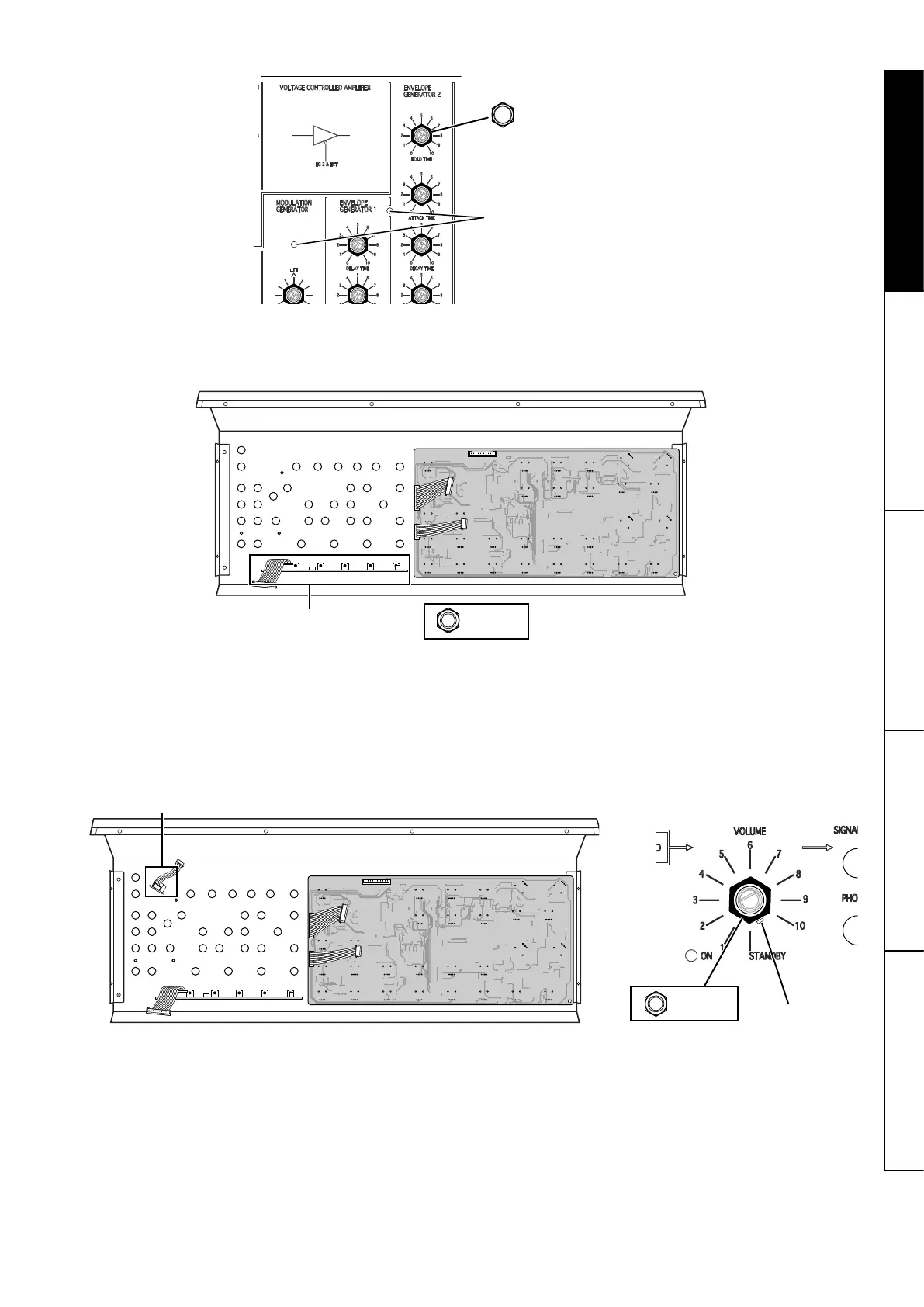

4. Attaching the VR circuit board (small) to the front panel with the included nuts (B)
Caution: Be careful to avoid injuries to your hands from the terminals.
Caution: Be careful that the panel is not scratched when the included box-end wrench is used to tighten the nuts.
VR circuit board (small)
Nut (B)
5. Attaching the switch VR circuit board to the front panel with the included nuts (B)
Disconnect the wiring harness (to be connected to the panel jack circuit board) from the switch VR circuit board, and then attach
the switch VR circuit board to the front panel.
Make sure that the orientation is correct by aligning the guide pins with the guide holes on the panel, and then secure it with the
included nuts.
Caution: Be careful that the panel is not scratched when the included box-end wrench is used to tighten the nuts
switch VR circuit board
guide pin
Nut (B)

Korg MS-20 Kit Specifications

General

External Signal Processor	Yes
Power Supply	AC adapter
Type	Analog Monophonic Synthesizer
Oscillators	2 VCOs
Envelopes	2 EGs (Envelope Generators)
Patch Points	Yes
Keyboard	37 keys
Dimensions	493 x 257 x 208 mm
Connectivity	1/4" Audio Output
