Assembling the bottom panel section

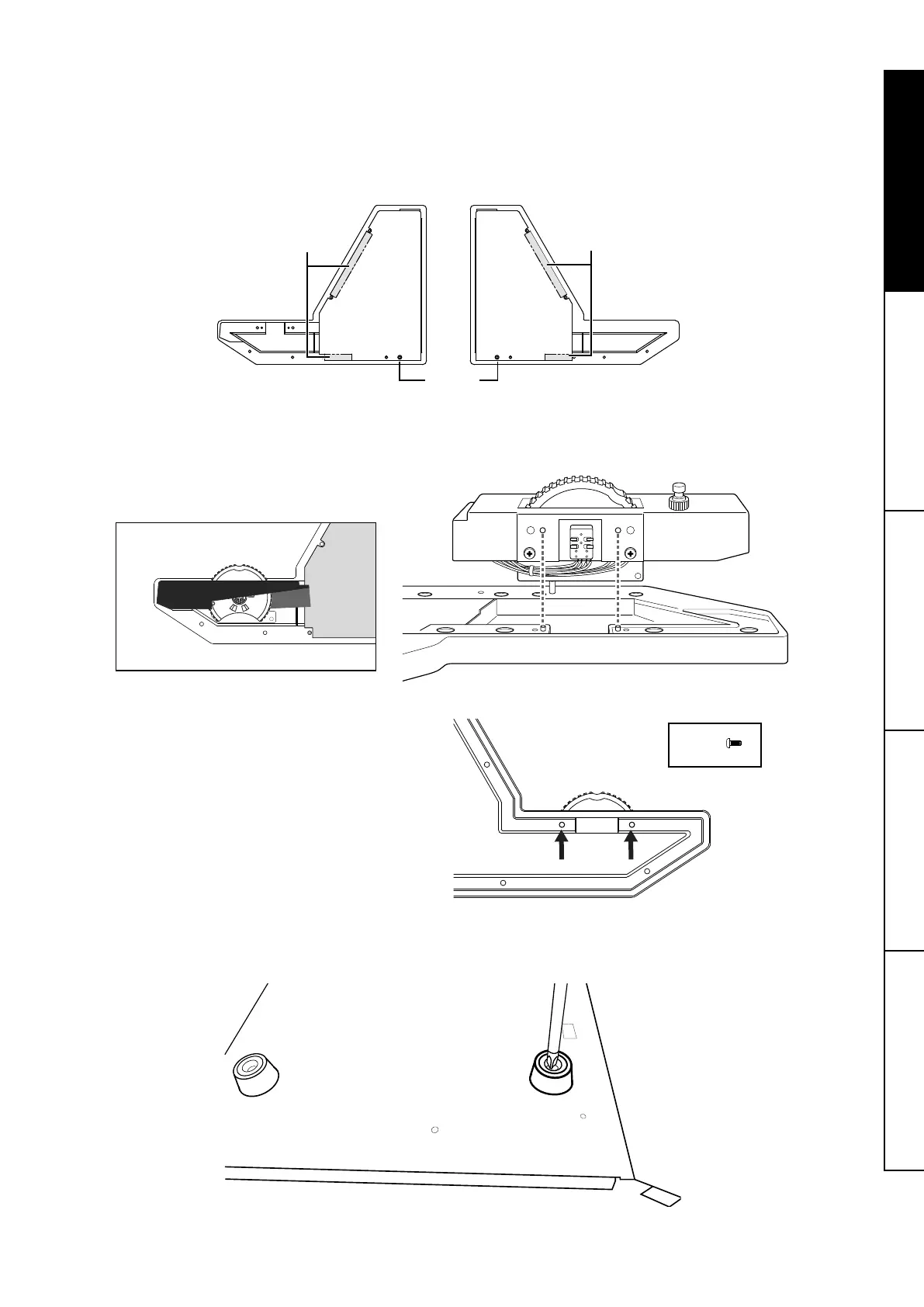

1. Affixing the side shields
Affix the left side shield to the left side panel.
Peel the backing paper from the double-sided tape on the shield, and then use the guide pins on the side panel as reference to
affix the shield so that it does not extend from the panel.
Affix the right side shield to the right side panel in the same way.
double-sided tape
double-sided tape
guide pin
2. Attaching the wheel unit to the left side panel with screws
Using the guides as a reference, install the wheel unit, and then secure it with the two screws.
Caution: Be careful not to pinch the cable during this process .
3. Attaching the rubber feet to the bottom panel
Install the rubber feet in the four locations on the bottom panel. Insert the rubber feet into the installation holes in the bottom
panel, and then insert the tip of the screwdriver into the center of the rubber feet and secure them.
Caution: Be careful to avoid injuries from the tip of the screwdriver.
Screw
To Next Page
