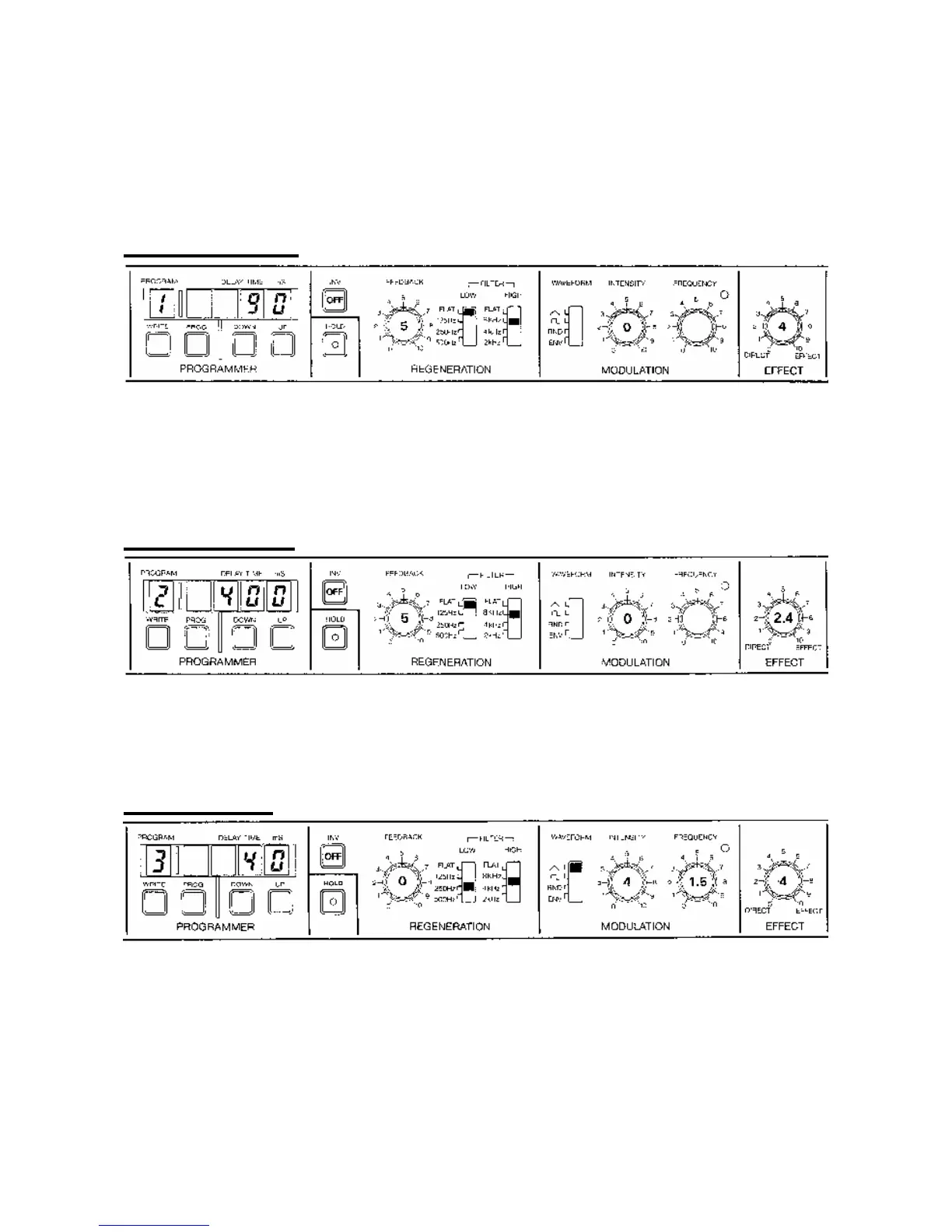

SETTING CHART
1 Short delay
Used to obtain a normal delay effect. Adjust the feedback and delay time according to the application. Shorten the delay
time to achieve a slapback effect (50 milliseconds (approximately)).
2 Long delay
Used to obtain a long sound delay of 400 milliseconds. Longer echo effects can be obtained by increasing the delay
times.
3 Doubling
Used to obtain doubling effect on guitar chords, strings or vocal. The input is given a vibrato effect and when mixed
with the original signal doubling is achieved.

Korg SDD-3000 Specifications

General

Type	Digital Delay
Sampling Frequency	48 kHz
AD/DA Conversion	24-bit
Input Impedance	1 MΩ
Output Impedance	1 kΩ
Controls	Delay Time, Feedback, Modulation Depth
Total Harmonic Distortion	0.05%
Weight	1.5 kg
Modulation	LFO (Sine, Square, Random)
