Korg X3 User Manual

B.ReiBove
the Floppy Disk Drive

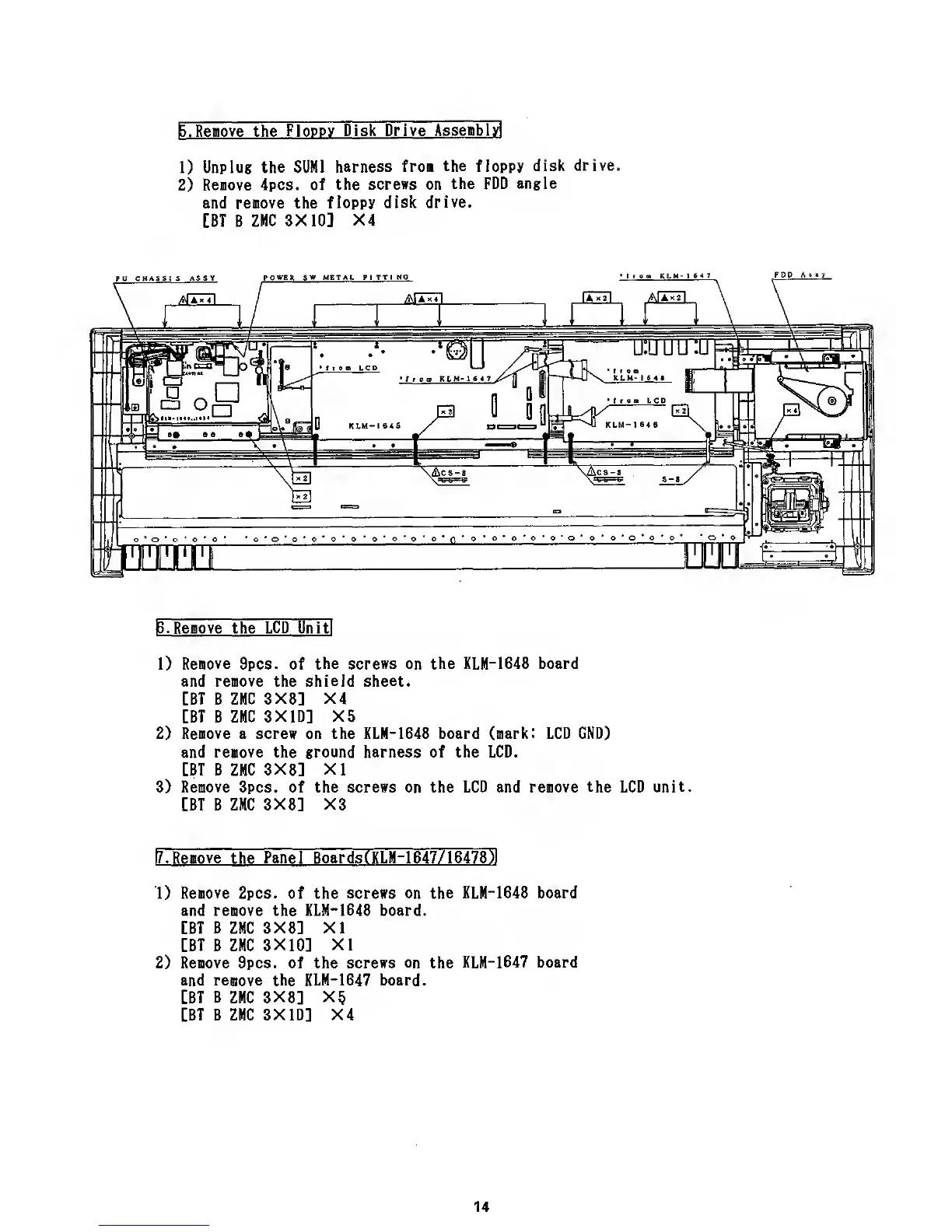

Assemble
1)
Unplug
the SUMl
harness froi the floppy
disk
drive.
2)
Remove 4pcs. of
the
screws
on
the FDD
angle
and remove
the floppy disk
drive.
CBT B
ZHC 3X10]
X4
»U
CHASSI) ASSY
POWER
SW
METAU PITTIHO
f
r 0 D
K
LM- 1
«4J FDD A
«
I
r
B. Remove the LCD Unit
1)
Remove
9pcs. of
the screws on the KLN-1648 board
and remove the shield sheet.
CBT B ZMC
3X8] X4
CBT B ZMC
3X10]
X5
2)
Remove a screw on the XLM-1648 board (mark: LCD GND)
and remove the ground harness of the LCD.
CBT B ZMC
3X8] XI
8)
Remove 3pcs. of the screws
on
the LCD and
remove the LCD unit.
CBT B ZMC
3X8] X3
f7. Remove the Panel Boards(KLM-1647/16478]|
1)
Remove
2pcs. of the
screws on the KLM-1648 board
and remove the KLM~1648 board.
CBT
B
ZMC
3X8] XI
CBT B ZMC
3X10] XI
2)
Remove 8pcs. of the
screws on
the
KLM-1647 board
and remove the KLM-1847 board.
CBT
B
ZMC
3X8] X§
CBT B ZMC
3X10] X4
