Korg X3 User Manual

1

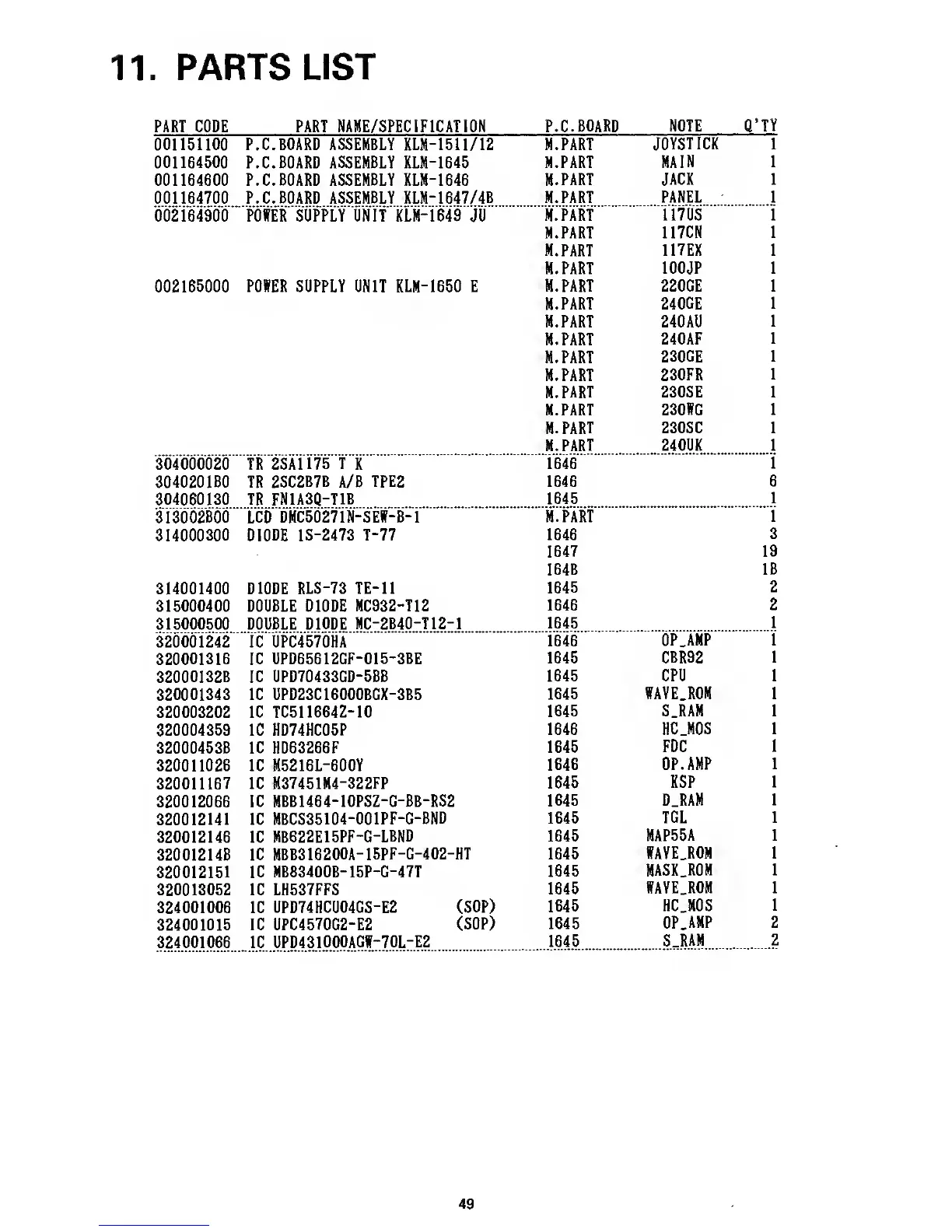

1 . PARTS
LIST
PART CODE PART NAME/SPECIFICATION
P.C.BOARD NOTE
Q’TY
00U5U00
P.C.BOARD ASSEMBLY KLM-1511/12 M.PART
JOYSTICK 1
001164500
P.C.BOARD
ASSEMBLY
KLM-1845
M.PART
MAIN 1
001164600 P.C.BOARD ASSEMBLY KLM-1646
M.PART
JACK 1
001164700 P.C.BOARD ASSEMBLY KLM-1647/48
M.PART
PANEL 1
002164900 POWER SUPPLY UNIT KLM-1649 JU
M.PART
117US 1
M.PART
U7CN 1
M.PART
117EX 1
M.PART
lOOJP 1
002165000 POWER SUPPLY UNIT KLM-1650 E
M.PART 220GE 1
M.PART 240GE
1
M.PART 240AU
1
M.PART 240AF
I
M.PART
230GE 1
M.PART
230FR
I
M.PART 230SE I
M.PART
230WG 1
M.PART 230SC 1
M.PART 240UK 1
304000020 TR 2SA1175
T
K
1646
1
304020180 TR 2SC2878 A/B
TPE2 1646
6
304060130 TR FN1A3Q-T1B
1645
1
313002800 LCD DMC50271N-SEW-B-1
M.PART
1
314000300
DIODE
lS-2473 T-77
1646
3
1647
19
1648
18
314001400
DIODE RLS-73 TE-ll
1645
2
315000400 DOUBLE DIODE
MC932-T12
1646
2
315000500 DOUBLE
DIODE MC-2840-T12-1
1645
1
320001242 1C UPC4570HA
1646
OP.AMP 1
320001316 IC
UPD65612GF*015-*3BE
1645
CBR92 1
320001328 IC UPD70433GD-5BB
1645 CPU 1
320001343 IC UPD23CI6000BGX-385
1645 WAVE.ROM 1
320003202 IC
TC51I664Z-10
1645 S.RAM 1
320004359 IC HD74HC05P
1646 HC.MOS 1
320004538
IC H063266F
1645
FDC 1
320011026 IC M5216L-600Y
1646
OP.AMP
1
320011167 IC
M37451M4-322FP 1645
KSP
1
320012066
IC
MB81464-10PSZ-G-BB-RS2
1645
D.RAM 1
320012141 IC
MBCS35104-001PF-G-BND
1645
TGL 1
320012146 IC
MB622E15PF-G-LBND
1645
MAP55A 1
320012148
IC
MB8316200A-15PF-G-402-HT 1645
WAVE ROM 1
320012151
1C MB83400B-15P-G-47T
1645
MASK.ROM 1
320013052 IC LH537FFS
1645
WAVE_ROM 1
324001006 IC
UPD74HCU04GS-E2
(SOP) 1645
HCJOS
1
324001015 IC UPC4570G2-E2
(SOP)
1645
OP.AMP 2
324001066 IC
UPD431000AGW-70L-E2
1645
S
RAM
2
49

Korg X3 Specifications

General

Polyphony	32 voices
Multitimbral	16 parts
Presets	200 programs, 200 combinations
User Patches	100 programs, 100 combinations
MIDI	In, Out, Thru
Weight	10.5 kg
Type	Workstation
Keyboard	61 keys
Sequencer	16-track
Display	LCD
Outputs	Stereo
Memory	Internal
