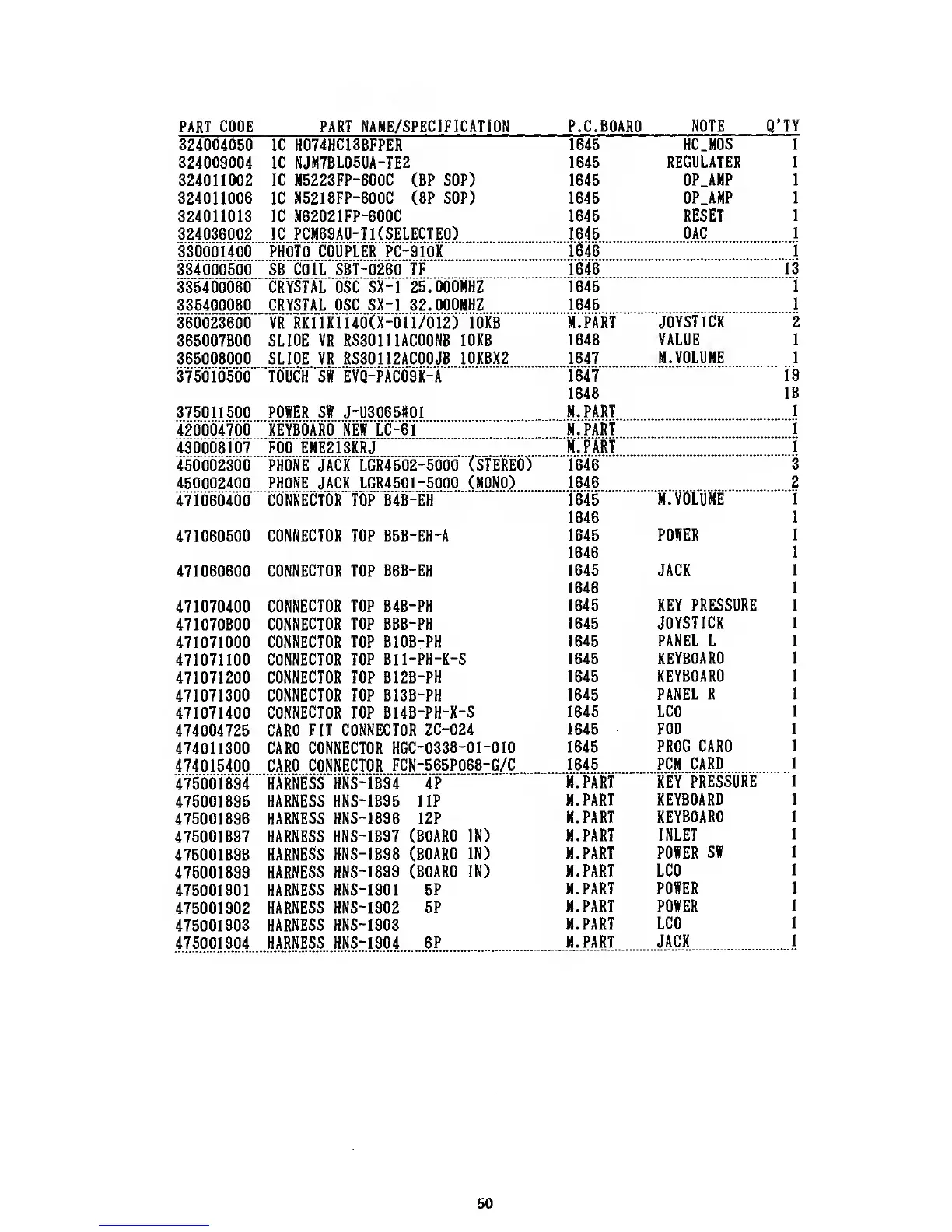

PART CODE PART NAME/SPECIFICATION
P.C.
BOARD
NOTE
Q’TY
324004050
IC
HD74HC138FPER 1645 HC.MOS
1
324009004
IC NJM78L05UA-TE2
1645
REGULATER 1
324011002 IC M5223FP-600C (8P SOP) 1645
OP.AMP 1
824011006
IC
M5218FP-600C (8P SOP) 1645
OP.AMP 1
324011013 IC M62021FP-600C
1645 RESET
1
324036002 IC PCM69AU-T1 (SELECTED) 1645
DAC
1
330001400 PHOTO COUPLER PC-910K
1646
1
334000500 SB COIL SBT-0260 TF
1646
13
336400060
CRYSTAL
OSC SX-1
25.000MHZ 1645
1
335400080 CRYSTAL OSC SX-1
32.000MHZ 1645
1
360023600 VR Mi lkii40()( -011/612) imb
M.PART
JOYSTICK 2
365007800 SLIDE VR RS30111AC00N6 10KB
1648 VALUE
1
365008000 SLIDE VR RS30112AC00JB
10KBX2 1647
M. VOLUME 1
375010500 TOUCH Sf EVQ-PAC09K-A
1647
19
1648
18
375011500 POWER SW
J-U3065#01
M.PART
1
420004700 KEYBOARD NEW LC-61
M.PART
1
430008107 FDD ENE213KRJ
M.PART
1
450002300 PiiONE
jjck LGE4562-5666 (STEREO)
1646
3
450002400 PHONE JACK LGR4501-5000
(MONO) 1646
2
471060400 CONNECTOR TOP B4B-EH
1645
M. VOLUME
1
1646
1
471060500 CONNECTOR TOP B5B-EH-A
1645
POWER
1
1646
1
471060600 CONNECTOR TOP
B6B-EH
1645 JACK
1
1646
1
471070400
CONNECTOR TOP B4B-PH
1645
KEY
PRESSURE 1
471070800 CONNECTOR TOP B8B-PH
1645
JOYSTICK
1
471071000
CONNECTOR TOP BIOB-PH
1645 PANEL L
1
471071100
CONNECTOR TOP Bll-PH-K-S
1645
KEYBOARD 1
471071200 CONNECTOR TOP
B12B-PH
1645
KEYBOARD 1
471071300 CONNECTOR TOP B13B-PH
1645
PANEL R 1
471071400 CONNECTOR TOP
B14B-PH-K-S
1645 LCD
1
474004725
CARD FIT CONNECTOR
ZC-024
1645
FDD 1
474011300 CARD
CONNECTOR HGC-0338-01-0I0
1645
PROG CARD
1
474015400 CARD CONNECTOR
FCN-565P068-G/C
1645 PCM
CARD
1
475001894
HARNESS HNS-1894
4P
M.PART KEY
PRESSURE
1
475001895 HARNESS HNS-1895
IIP
M.PART KEYBOARD
1
475001896 HARNESS
HNS-1896 12P
M.PART
KEYBOARD 1
475001897 HARNESS HNS-1897
(BOARD IN)
M.PART
INLET
1
475001898 HARNESS HNS-1898
(BOARD IN)
M.PART
POWER
SW
1
475001899 HARNESS HNS-1899
(BOARD IN)
M.PART LCD
1
475001901
HARNESS HNS-1901
5P
M.PART
POWER
1
475001902
HARNESS HNS-I902
6P
M.PART POWER
1
475001903 HARNESS HNS-1903
M.PART
LCD
1
475001904 HARNESS HNS-I904
6P
M.PART
JACK
1
50

Korg X3 Specifications

General

Polyphony	32 voices
Multitimbral	16 parts
Presets	200 programs, 200 combinations
User Patches	100 programs, 100 combinations
MIDI	In, Out, Thru
Weight	10.5 kg
Type	Workstation
Keyboard	61 keys
Sequencer	16-track
Display	LCD
Outputs	Stereo
Memory	Internal
