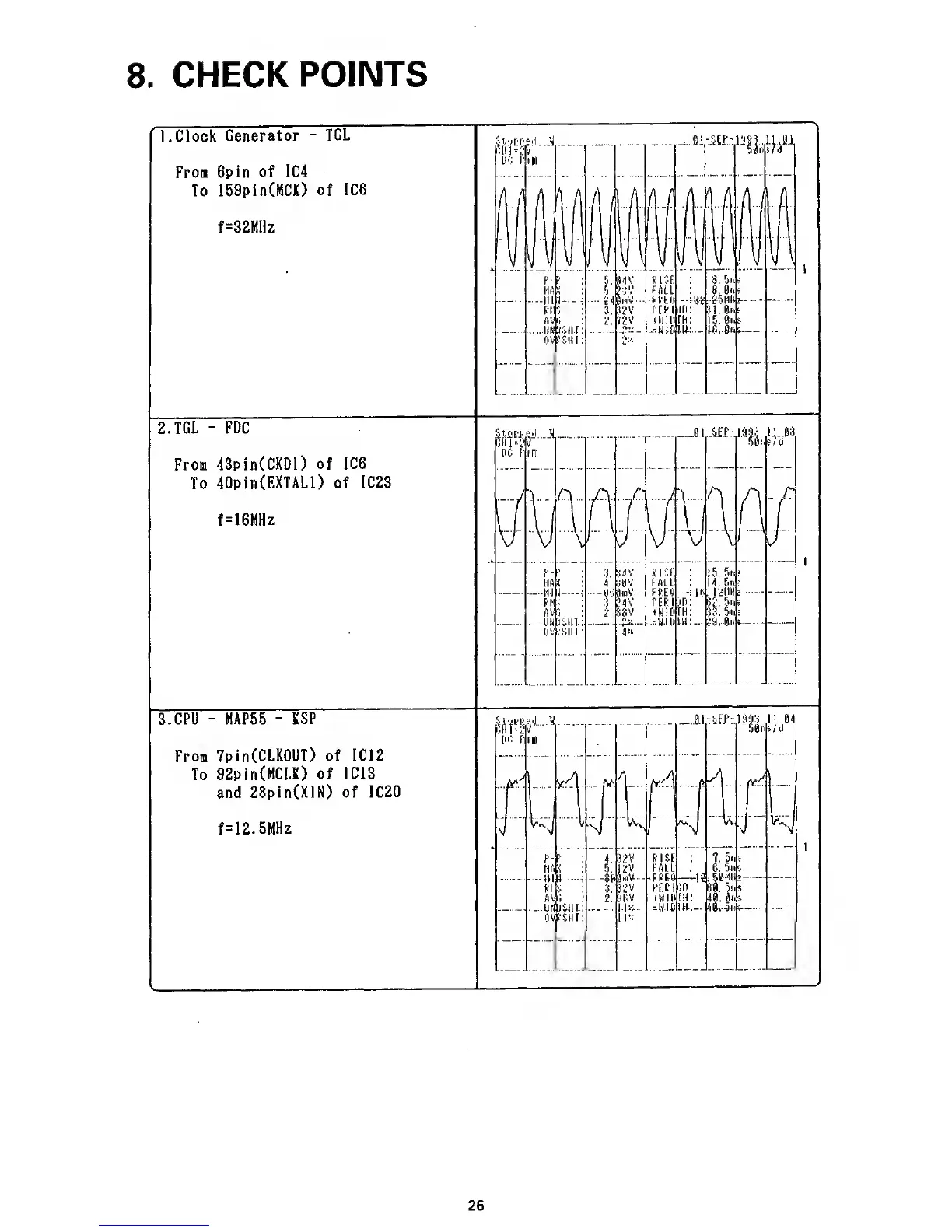

8.
CHECK
POINTS
1. Clock
Generator
-
TGL
From
6pin of IC4
To
159pin(«CK)
of IC6
f=32MHz
2.
TGL
-
FOG
From
43pin(CK01)
of IC6
To
40pin(EXTALl) of
IC23
f=16MHz
3. CPU
-
MAP55
-
KSP
From
7pin(CLK0UT) of
IC12
To
92pin(MCLK)
of IC13
and
28pin(XIN) of IC20
f=12.5HHz
