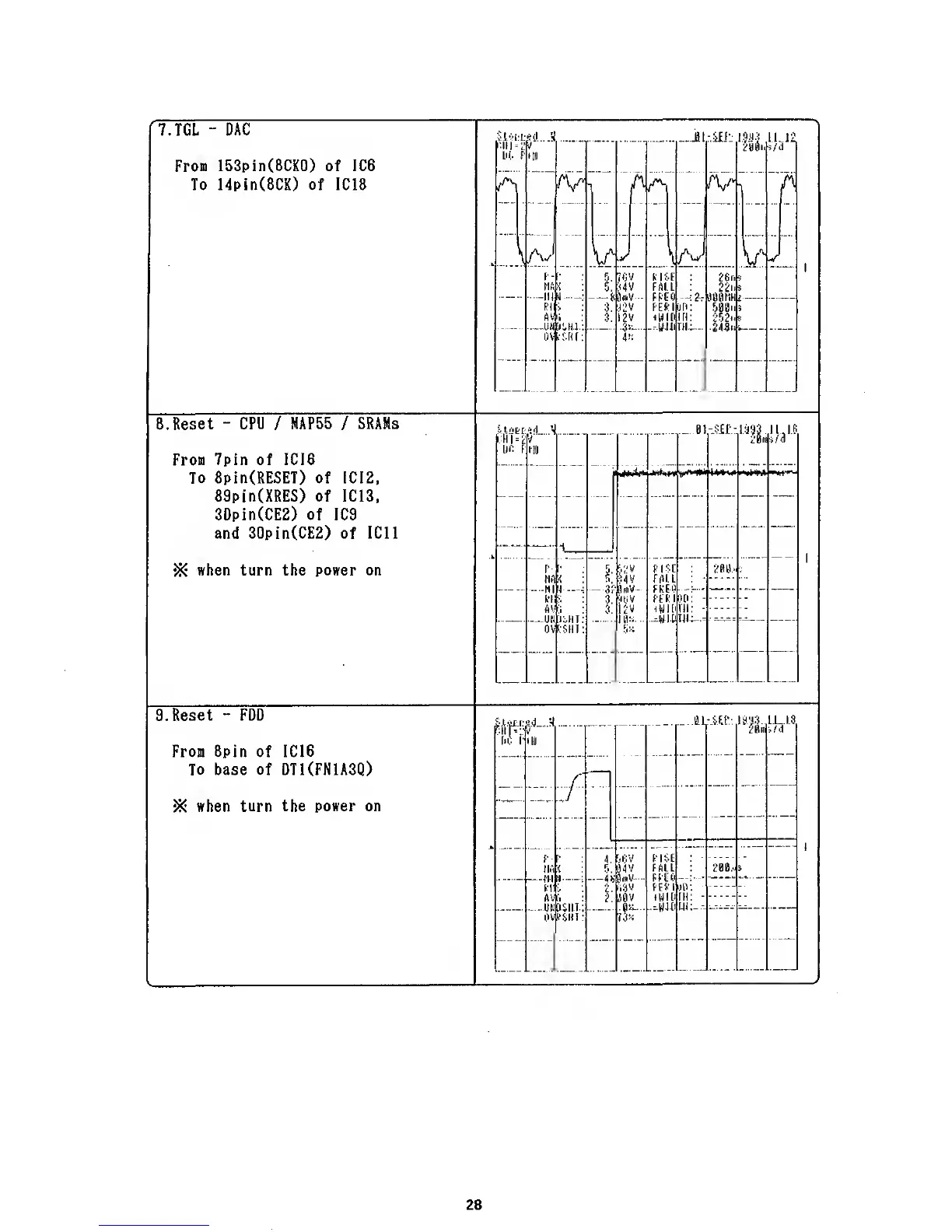

Korg X3 User Manual

7.TGL
-
DAC
Fron 153pin(BCK0) of IC6
To 14pin(BCK) of 1C18
8.
Reset
-
CPU
/
HAP55
/
SRAMs
From 7pin of IC16
To 8pin(RESET) of IC12,
89pin(XRES) of IC13,
30pin(CE2) of IC9
and 30pin(CE2)
of ICll
when turn the
power on
9.
Reset
-
FDD
Froi Spin of IC16
To base of DTKFN1A3Q)
^
when
turn the power on
