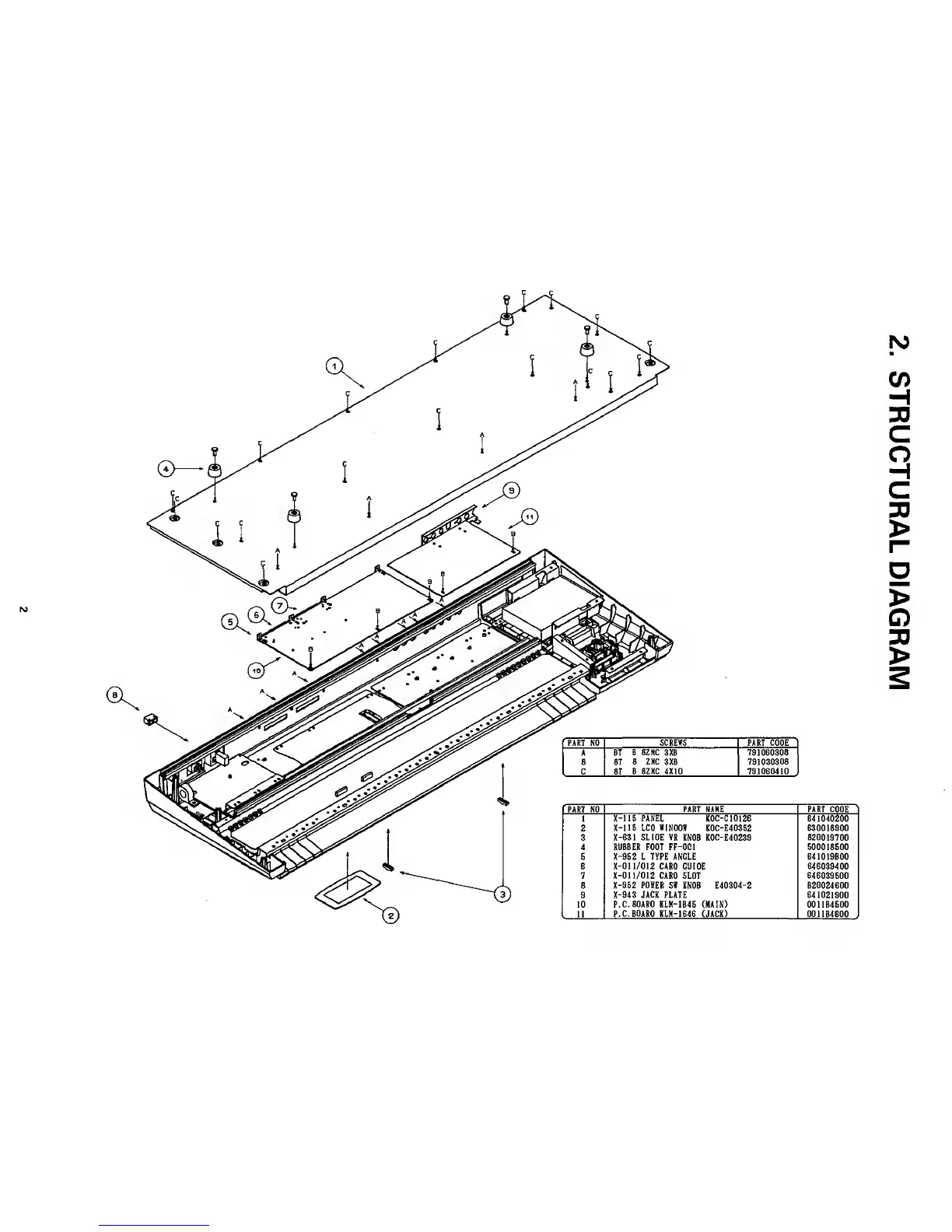

Korg X3 - 2. Structural Diagram

o
c
33
>
PART NO
SCREfS
PART CODE
A BT
B BZMC 3X8 791060308
B BT
B ZMC
3X8
791030308
C BT
B BZMC 4X10 791060410
PART NO
PART NANE PART CODE
1 X-115
PANEL K0C-C10126
641040200
2
X-115 LCD
WINDOW
KOC-E40352 630018900
3 X-631
SLIDE VR
KNOB
K0C-E40239 620019700
4 RUBBER FOOT FF-OCl 500018SOO
5 X-952 L TYPE ANGLE 641019800
6
X-Oll/012
CARD GUIDE
646039400
7
X-OI 1/012
CARD SLOT
646039500
8 X-952
POWER
Sff KNOB E40304-2
620024600
9 X-943
JACK PLATE 641021900
10
P.C. BOARD
KLM-1645 (MAIN) 001164500
11
P.C. BOARD
KLM-1646 (JACK) 001164600
DIAGRAM
