Korg X3 User Manual

MB622E15
(MAP55A)

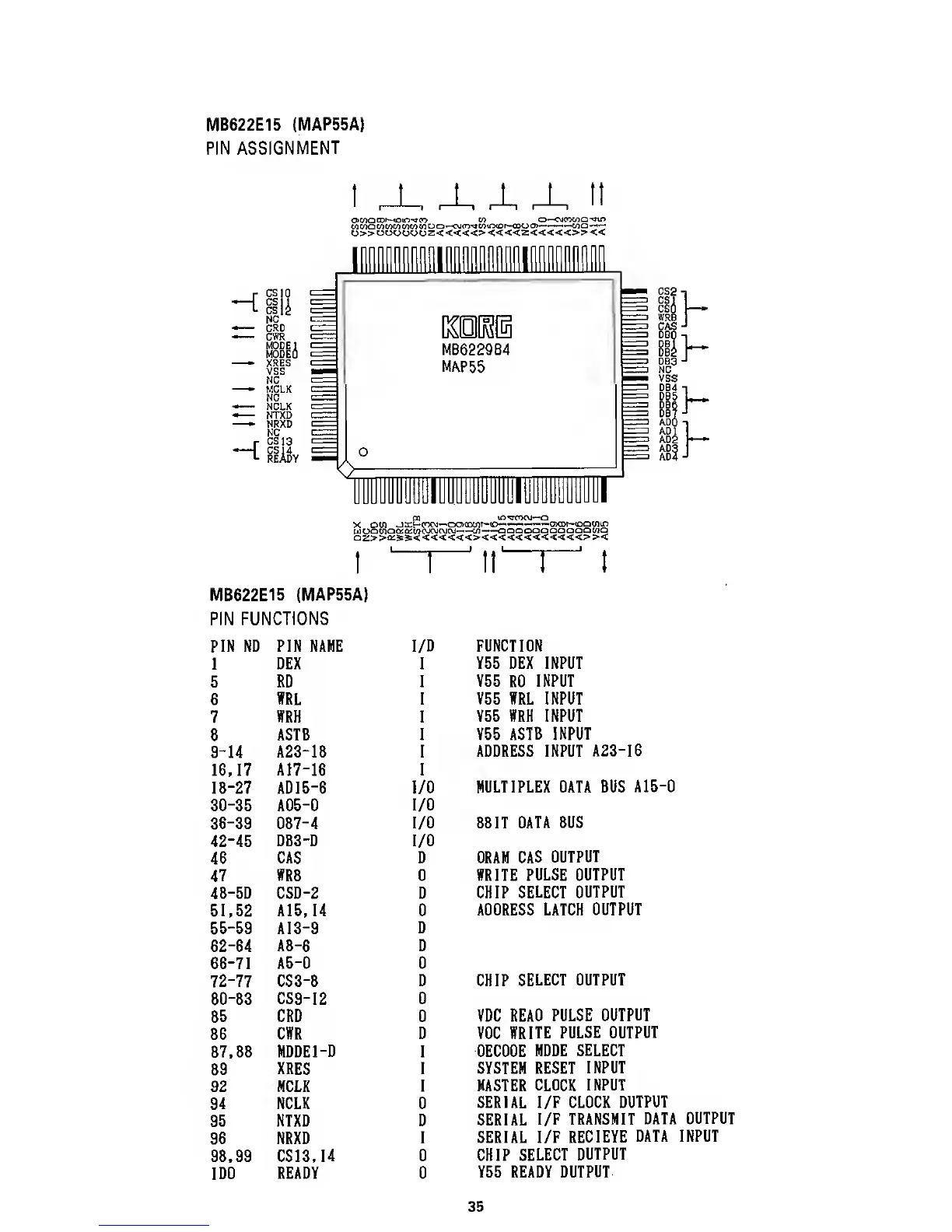

PIN
ASSIGNMENT
MB622E15
(MAP55A)
PIN
FUNCTIONS
PIN NO PIN NAME I/O
FUNCTION
1
DEX I
V55 DEX INPUT
5 RD
I
V55
RD
INPUT
6
WRL I V55
WRL
INPUT
7
ffRH I
V55 WRH INPUT
8 ASTB
I V55
ASTB INPUT
9-14
A23-18 I
ADDRESS INPUT
A23-16
16.17 A17-16
I
18-27
AD15-6
I/O
MULTIPLEX DATA BUS A15-0
30-35
AD5-0
I/O
36-39
DB7-4
I/O 8BIT
DATA BUS
42-45
DB3-0 I/O
48
CAS 0 DRAM
CAS
OUTPUT
47
WRB 0
WRITE PULSE OUTPUT
48-50
CSO-2 0
CHIP
SELECT OUTPUT
61,52
A15,14 0
ADDRESS LATCH
OUTPUT
55-59
A13-9
0
62-64
A8-6 0
66-71
A5-0 0
72-77
CS3-8
0 CHIP
SELECT OUTPUT
80-83
CS9-12 0
85 CRD 0
VDC
READ PULSE
OUTPUT
86
CWR
0
VDC WRITE
PULSE OUTPUT
87,88 MODEl-0 1
DECODE
MODE
SELECT
89
XRES I
SYSTEM RESET
INPUT
92 NCLX
I
MASTER
CLOCK INPUT
94 NCLK 0
SERIAL 1/F CLOCK
OUTPUT
95 NTXD
0
SERIAL
I/F TRANSMIT
DATA
OUTPUT
96 NRXD
I
SERIAL I/F
RECIEVE
DATA INPUT
98,99 CS13.14
0
CHIP
SELECT
OUTPUT
100
READY 0
V55 READY
OUTPUT
35
