Instructions for adjust button
●While on odometer screen, press
the Adjust button to switch from
odometer to trip A.
●While on odometer screen, press
and hold the Adjust button for 3
seconds to change the speed unit.
●Press the Adjust button to switch
from trip A to trip B.
●Press and hold the Adjust button for
3 seconds to reset the trip A .
●Press the Adjust button to switch
from hour meter A to hour meter B.
●Press and hold the Adjust button for
3 seconds to reset the hour meter A .
●Press the Adjust button to exit from
hour meter B and to go back to
odometer screen.
●Press and hold the Adjust button for
3 seconds to reset the hour meter B.
●Press the Adjust button to switch
from total hour meter to hour meter A.
●Press the Adjust button to switch
from trip B to total hour meter.
●Press and hold the Adjust button for
3 seconds to reset the trip B .
●Back to the odometer screen.
4

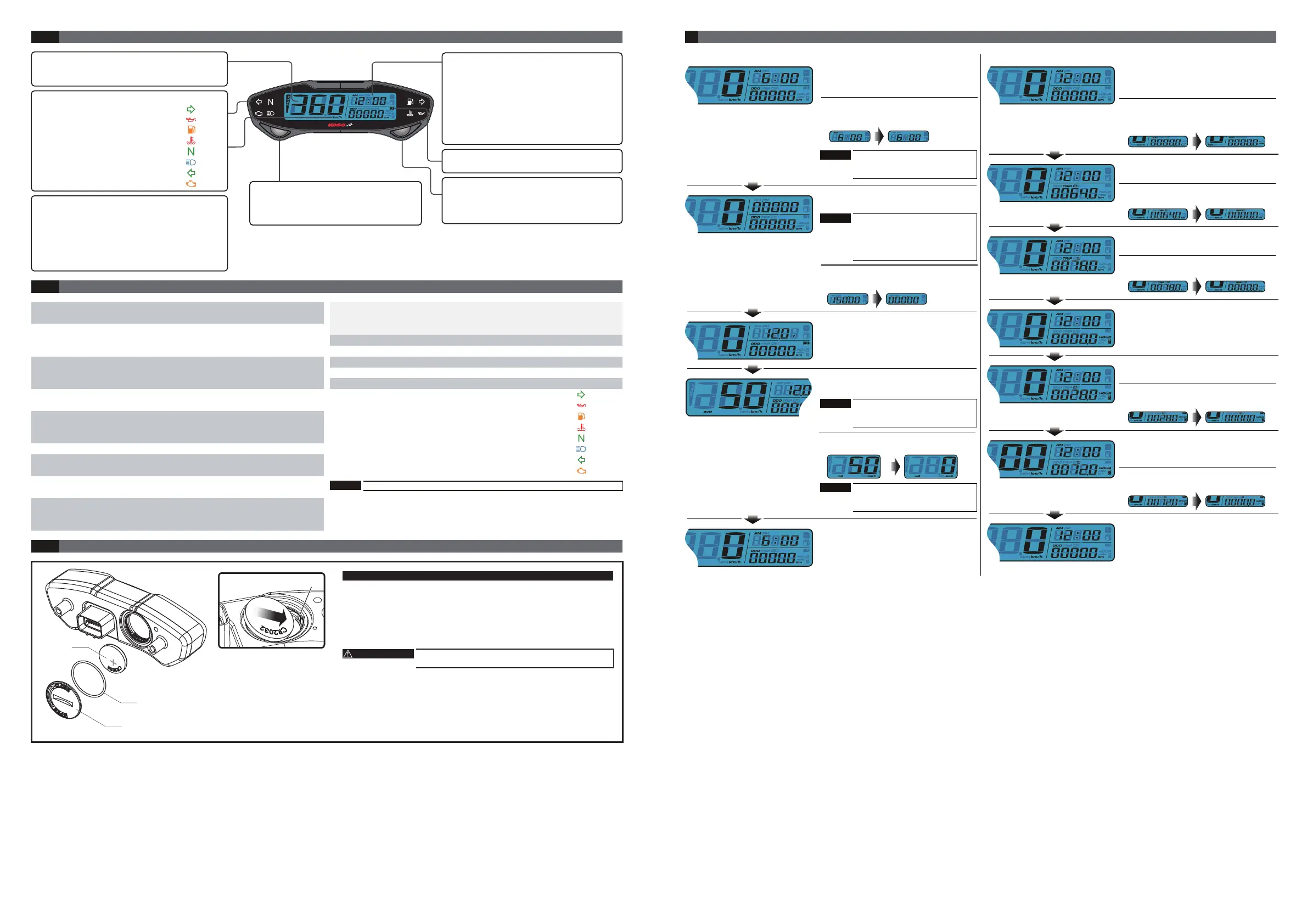

Switch Function Instructions
wh076ba01a(P3-2)
3-1
Basic Function Instruction
Speedometer
●
Display range : 0~360 km/h(0~225 MPH).
●
Display unit : 1 km/h (MPH) for alternative.
●
Clock : 24H, 12H.
●
Stopwatch function :
can be either programmed for manual
activation or by wheel activation
●
Volt meter : DC 8.0~18.0 V
●
Max Record function :
Average speed : 0~360 km/h(0~225 MPH)
Max speed : 0~360 km/h(0~225 MPH)
Max voltage : DC 8.0~18.0 V
Inner battery
●
Display range : 4 levels.
Select button
●
Press the Select button on the main
screen to switch between Clock,
Stopwatch,Volt meter,Average record.
Adjust button
●
Press the Adjust button on the main
screen to switch between ODO,Trip A、B
,Total Hour meter, Hour meter A、B.
Indicator light
●
Right indication light (Green)
●Motor oil light (Red)
●Low fuel warning light (Amber)
●Water temperature light (Red)
●Neutral
light (Green)
●
High beam light (Blue)
●Left indication light (Green)
●Engine light (Amber)
Odo meter
●
Display range : 0~99,999 km(mile).
●
Display unit : 1 km(mile).
Trip meter
●
Display range : 0.0~9,999.9 km(mile),
automatically reset after 9,999.9 km(mile).
●
Display unit : 0.1 km(mile).
●
Instructions for select button
●Press the Select button while on main
screen to switch from Clock to
Stopwatch.
●Press the Select button to switch
from Stopwatch to Volt meter.
●Press and hold the Select button for
3 seconds to reset the Stopwatch.
NOTE
If 24 hour mode is chosen,
then the AM/PM symbol will
not be displayed.
●Press the Select button to switch
from Average record to clock meter.
●Press and hold the Select button for
3 seconds to reset all records.
●Back to clock screen.
NOTE
Average speed and the Max
speed display in the 3 seconds
rotation.
NOTE
When Maintenance Symbol is
ON, please reset under this
function screen.
NOTE
When the option for manually
resetting the stopwatch is
chosen, press Select button
and hold for 6 sec. to switch
to Average record.
●Press and hold the Select button for
3 seconds to alternate 12/24 hour
modes.
●Press the Select button to switch
from Volt meter to Average record.
3-2
Functions, Settings Description
Display range : 0 ~ 360 km/h(0~225 MHP)●Speedometer
Display unit : 1 km/h(MHP), for alternative.
Display range : 00:00~23:59●Clock
Display range : 0 ~ 99,999 km(mile),
Automatically reset after 99,999 km(mile)
●
Odometer
Display unit : 1 km(mile)
Display range : 0.0 ~ 9,999.9 km(mile),
Automatically reset after 9,999.9 km(mile)
●
Trip meter A、B
Display unit : 0.1 km(mile)
Display range : 0~99,999 hour●Hour meter
Display unit : 1 hour
Display range : 0~9,999.9 hour,
Automatically reset after 9,999.9 hour
Display unit : 0.1 hour
○
Hour meter A、B
Display range : DC 8.0 ~ 18.0 V●Volt meter
Display unit : DC 0.1 V
Setting range : 0'00''00~9'59''99●Stopwatch
Setting unit : 0.01 sec.
Setting range : 300 ~ 5,000 km, may be
cleared manually.
Setting unit : 1 km
●Maintenance Mileage
●MAX Record Average speed：0~360 km/h(0~225 MPH)
Max speed：0~360 km/h(0~225 MPH)
Max voltage：DC 8.0~18.0 V
-10 + 60 ℃●Operating temperature
JIS D 0203 S2●Specification
120.0 x 38.8 x 34.2 mm
Right indication light (Green)
Motor oil light (Red)
Low fuel warning light (Amber)
Water temperature light (Red)
Neutral light (Green)
High beam light (Blue)
Left indication light (Green)
Engine light (Amber)
●Meter Size
Around 70 g●Meter Weight
●Indicator
●Inner battery Level Display range : 4 Levels
NOTE
Any design and specification changes, will not be notify.
3-3
Battery replancement
Follow this procedure for proper installation.
●The meter includes an internal battery(CR2032).This battery shall
be replaced only when power runs out.
●In order to install the battery properly, push the battery as show
on Figure A to make sure the battery is placed underneath the
① metal tab.
PUSH
①
Figure A
Not following this procedure could reuslt in
permanent damage to the meter.
WARNING!
CR2032
Inner waterproof rim
Battery cover
