Koso RX-4 - Bracket Installation Instructions; Wiring Installation Instructions

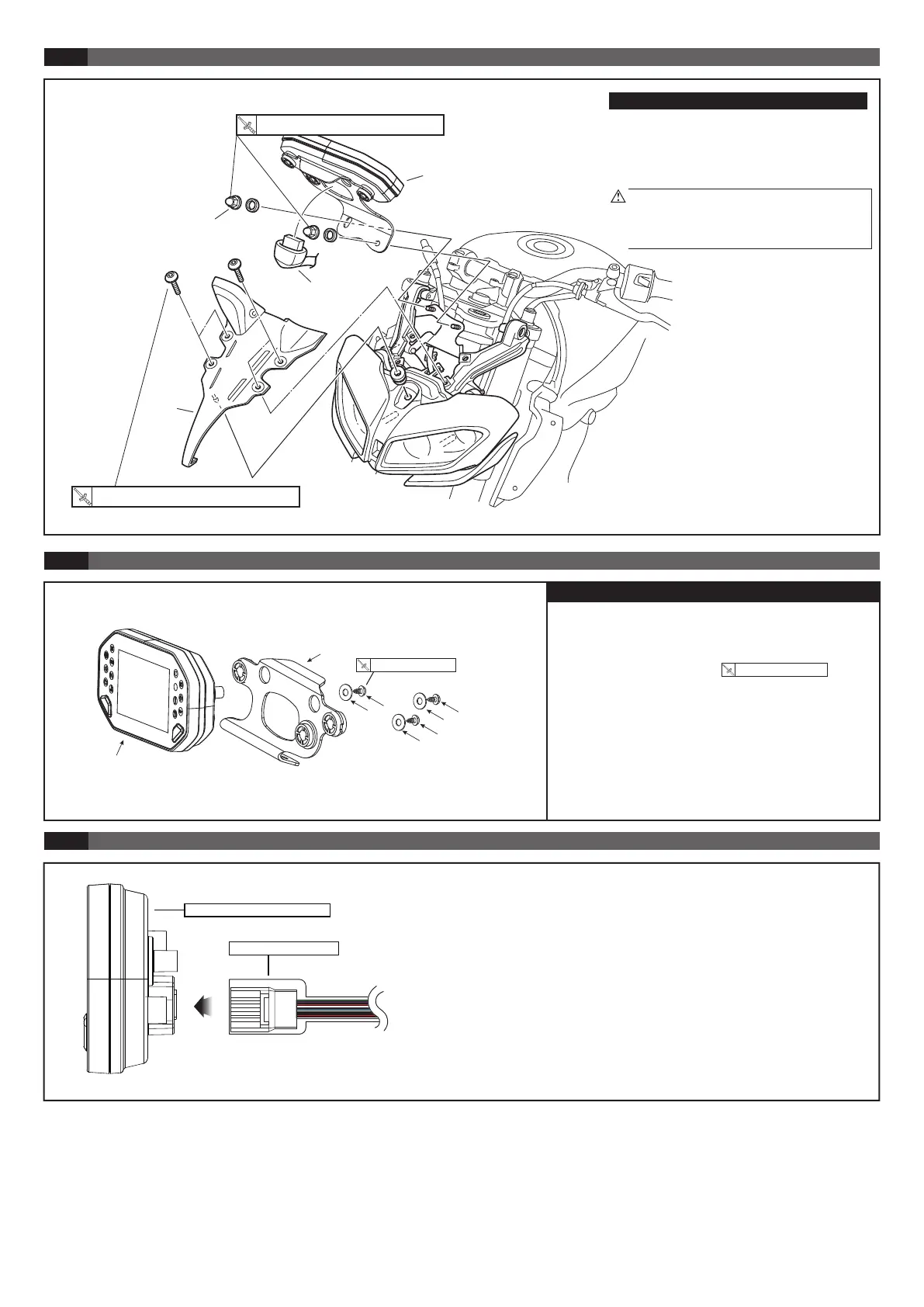

Vehicle installation instruction(2)2-2
❶ LCD Meter (With Bracket)
❷ Original Meter wire
❸ Headlight unit cover
1.Screw X2(OEM screws)
wh081ba08a(P17-2)
Bracket Installation instructions
2-3
1. LCD Meter (Accessory 1)
2. Meter bracket (Accessory 2)
3. M5 washer X3 (Accessory 3)
4. M5 screw X3 (Accessory 4)
0.9 Nm (9 kgf.cm)
Follow the steps below during installation.
Please install in the following order
Before installing, please assemble
according to the drawing.
(Refer to 2-3 installation
instructions for fixing the meter to the bracket).
Wiring Installation Instructions
2-4
LCD Meter (Accessory 1)
Original Meter wire
5 N・m (0.5 kgf・m, 3.6 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
1.
❸
❶
❷
1.
2.
3.
4.
4.
4.
3.
3.
0.9 Nm (9 kgf.cm)
