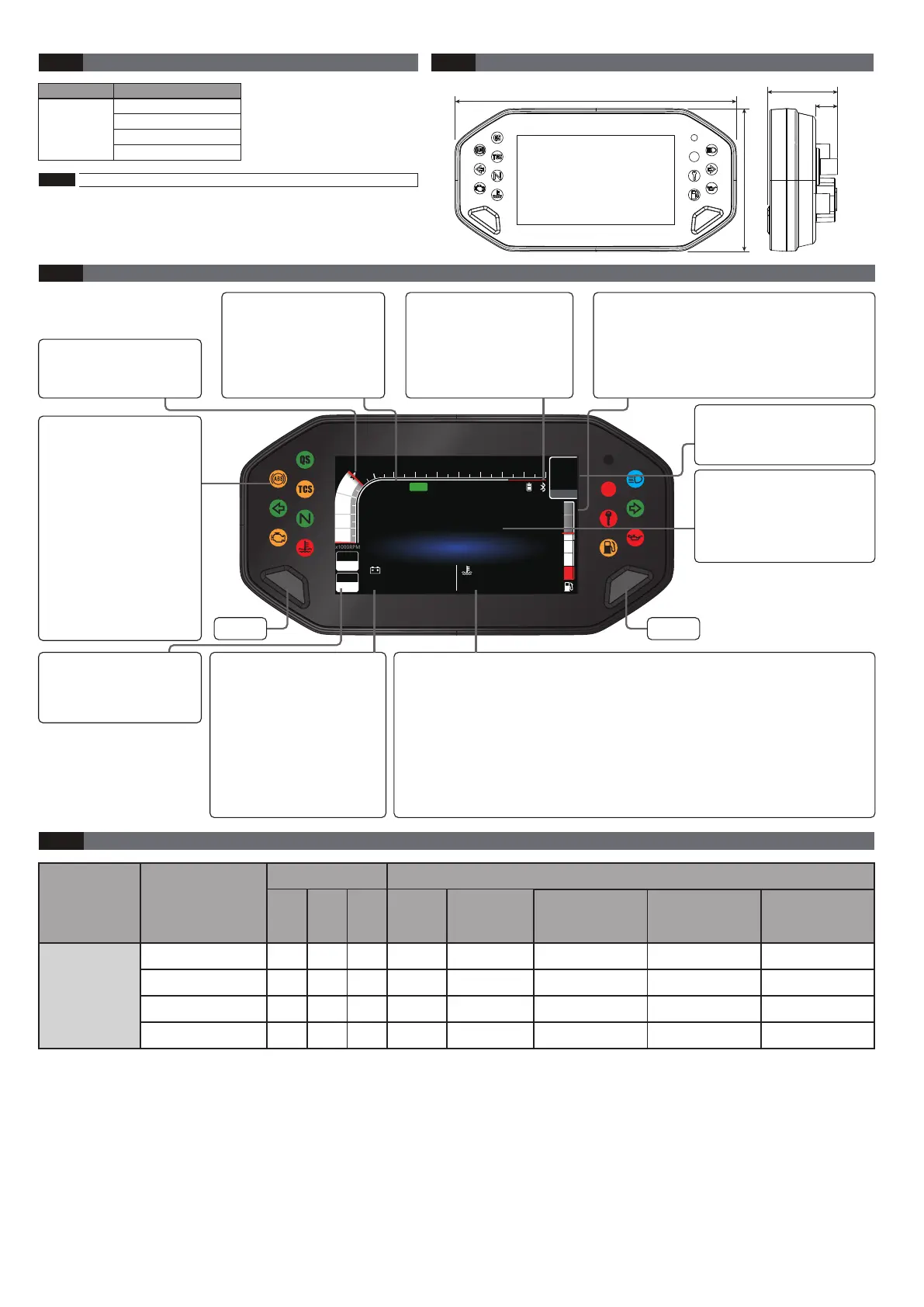

Koso RX-4 - Meter Size; Basic Function Instructions

wh081ba08a(P17-3)
x1000RPM
0
1
2
3
4
5
6 7 8 9 10 11 12 13
x1000RPM
0
1
2
3
4
5
6 7 8 9 10 11 12 13
0
1
1/2
MODE
A
TCS
OFF
ECO
13:59
RPM
4000
km/h
60
GEAR
4
999.9
Time Trip
hr
9999.9
Trip 1
km
12.5
V
95
°C
Basic Function Instructions
3-3
Clock
●Display range :
00:00 ~ 23:59 (24H),
1:00 ~ 12:59 (12H)
ECO Indicator
●Display range : display,No display
Phone battery
●Display range : 3 segments.
Bluetooth® connection status
●Display range :
Steady(connected),
OFF(Unconnected)
Fuel meter
●Display range : 6 levels
Fuel warning
●Display unit : 1 level (16.6 %)
●Display range : The warning value for low fuel shall be
1 segment and below, the warning signal will blink.
Voltmeter
●Display range : DC 8.0 ~ 18.0 V
●Display unit : DC 0.1 V
Time Trip
●Display range : 0 ~ 999.9 H
●Display unit : 0.1 hr
Time 1, 2
●Display range : 0 ~ 999.9 H
●Display unit : 0.1 hr
Coolant temperature warning
●Display range : 0 ~ 250 ℃ (32 ~ 482 ℉)
●Display unit : 1 ℃ (℉)
Trip meter 1, 2
●Display range : 0.0~9,999.9 km (mile),
may return to zero manually
●Setting unit : 0.1 km (mile)
Current fuel consumption
●Display range : 0 ~ 40.0 km/L, 2.5 ~ 99.9 L/100km, 0 ~ 99.9 MPG(US), 0 ~ 99.9 MPG(UK)
●Display unit : 0.1 km/L, 0.1 L/100km, 0.1 MPG(US), 0.1 MPG(UK)
Average fuel consumption
●Display range : 0 ~ 40.0 km/L, 2.5 ~ 99.9 L/100km, 0 ~ 99.9 MPG(US), 0 ~ 99.9 MPG(UK)
●Setting unit : 0.1 km/L, 0.1 L/100km, 0.1 MPG(US), 0.1 MPG(UK)
Tachometer
●
Display range :
MT-09 : 0 ~ 13,000 RPM
Indicator
●ABS light (Amber)
●Left indicatior light(Green)
●Engine light (Amber)
●QS Quick switch signal (Green)
●TCS Traction control signal (Amber)
●Neutral light (Green)
●
Coolant temperature warning light(Red)
●RPM shift light (Red)
●IMMO anti-theft light(Red)
●Low fuel warning light (Amber)
●High beam light (Blue)
●Right indicatior light(Green)
●Motor oil light (Red)
TCS display
●Display range : 1, 2, OFF
Driving mode
●Display range : STD, A, B
Gear Meter
●Display range :
－, N, 1 ~ 6
Speedometer
●Display range :
0 ~ 360 km/h (0 ~ 225 MPH)
●Display unit :
1 km/h (MPH)Switchable
Adjust
Select
170 mm
42.5 mm
14.5 mm
86.2 mm
Meter Size
3-2
Corresponding No. of the Vehicle
3-1
Model
MT-09
Meter part No.
BS2-83500-00
BS2-83500-10
BS2-83500-20
BS2-83500-30
The “meter part No.” may be found on the original part manual.
NOTE
Default valueIndicator function
TCS ABS QS
Speed
unit
Temperature
unit
Fuel consumption
unit
Shift light warning
(Steady)
Shift light warning
(Flash)
Model
Original meter
part No.
MT-09
BS2-83500-00 V V V km/h ℃ km/L 9250 11250
BS2-83500-10 V V V mph ℉ MPG(UK) 9250 11250
BS2-83500-20 V V V mph ℉ MPG(US) 9250 11250
BS2-83500-30 V V V km/h ℃ km/L 9250 11250
Vehicle Series Function Comparison Table
3-5
