Introduction
Variable displacement pump number
The type label (arrow) is located on the hydraulic pump housing (next to where the pump is
installed on the diesel engine)
Variable displacement motor number
The type label (arrow) is located on the hydraulic motor, on the right in driving direction.
Rear axle number
The type label (arrow) is located on the upper side of the differential housing, at the rear.
Front axle number
The type label (arrow) is located on the upper side of the differential housing, at the front.

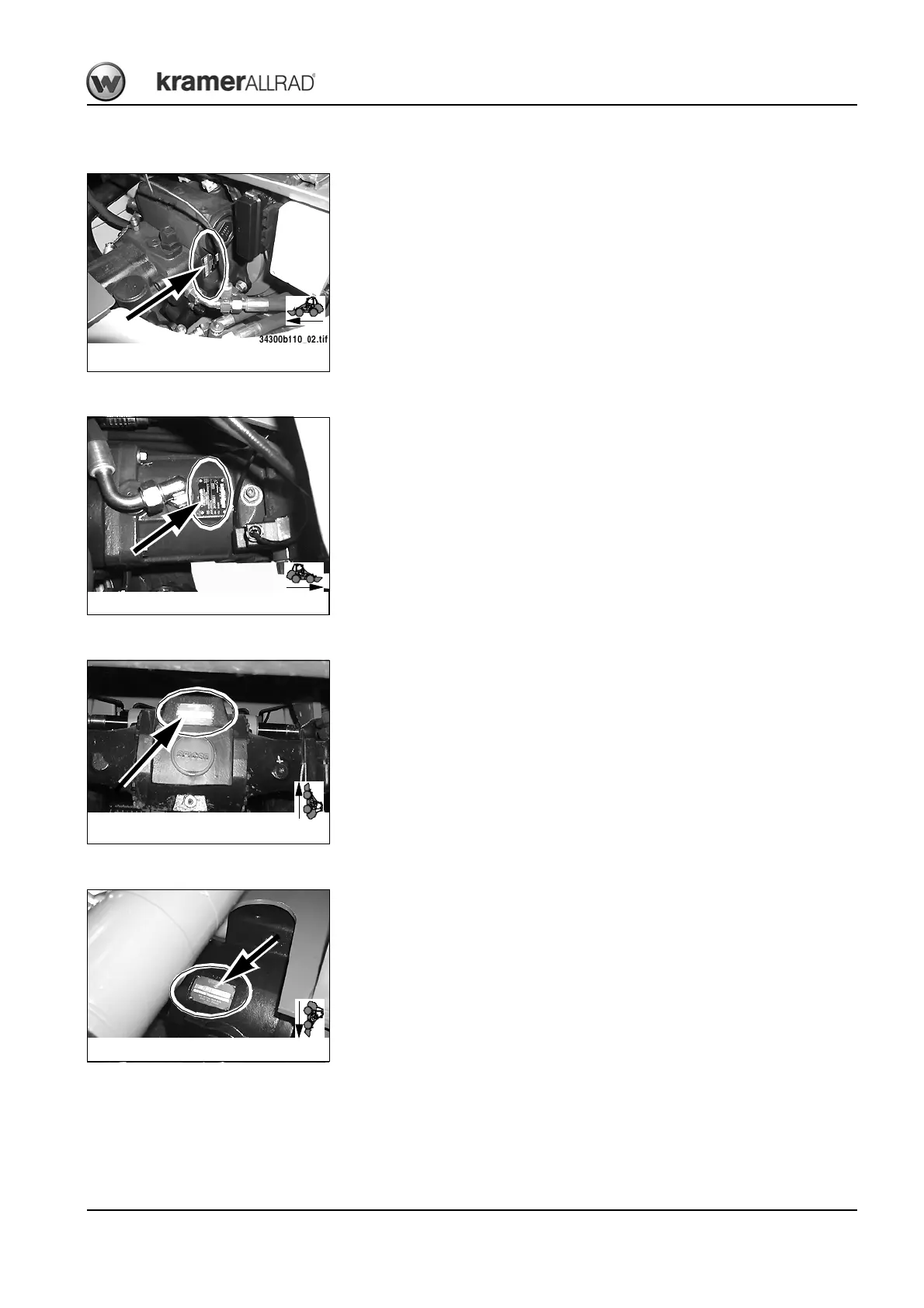

Fig. 5: Hydraulic pump type label
Fig. 6: Hydraulic motor type label
Fig. 7: Rear axle and gearbox type label
Fig. 8: Front axle type label
