Operation
Changing direction (forwards/reverse)
For reasons of safety, changing direction (forwards/reverse) during machine
travel is only possible if drive speed is reduced to less than 15 kph!
☞ Select the driving direction
• Reduce engine speed: remove your foot from the accelerator pedal
• Slow down your drive speed to less than 15 kph
• Select the driving direction with switch 103, or stop the machine with tip switch 102
• Apply the parking brake at machine standstill
3.26 Differential lock (self-locking differential)
Switching the differential lock ON and OFF
The differential lock neutralises the compensating effect of the differential, i.e. traction is
distributed evenly to the front and rear wheels.
• Both the front and the rear axle of the machine are fitted with a
self-locking differential
• The lock value is 45 % for each axle.
The differential is locked automatically and cannot be switched on or off!
F
51 53

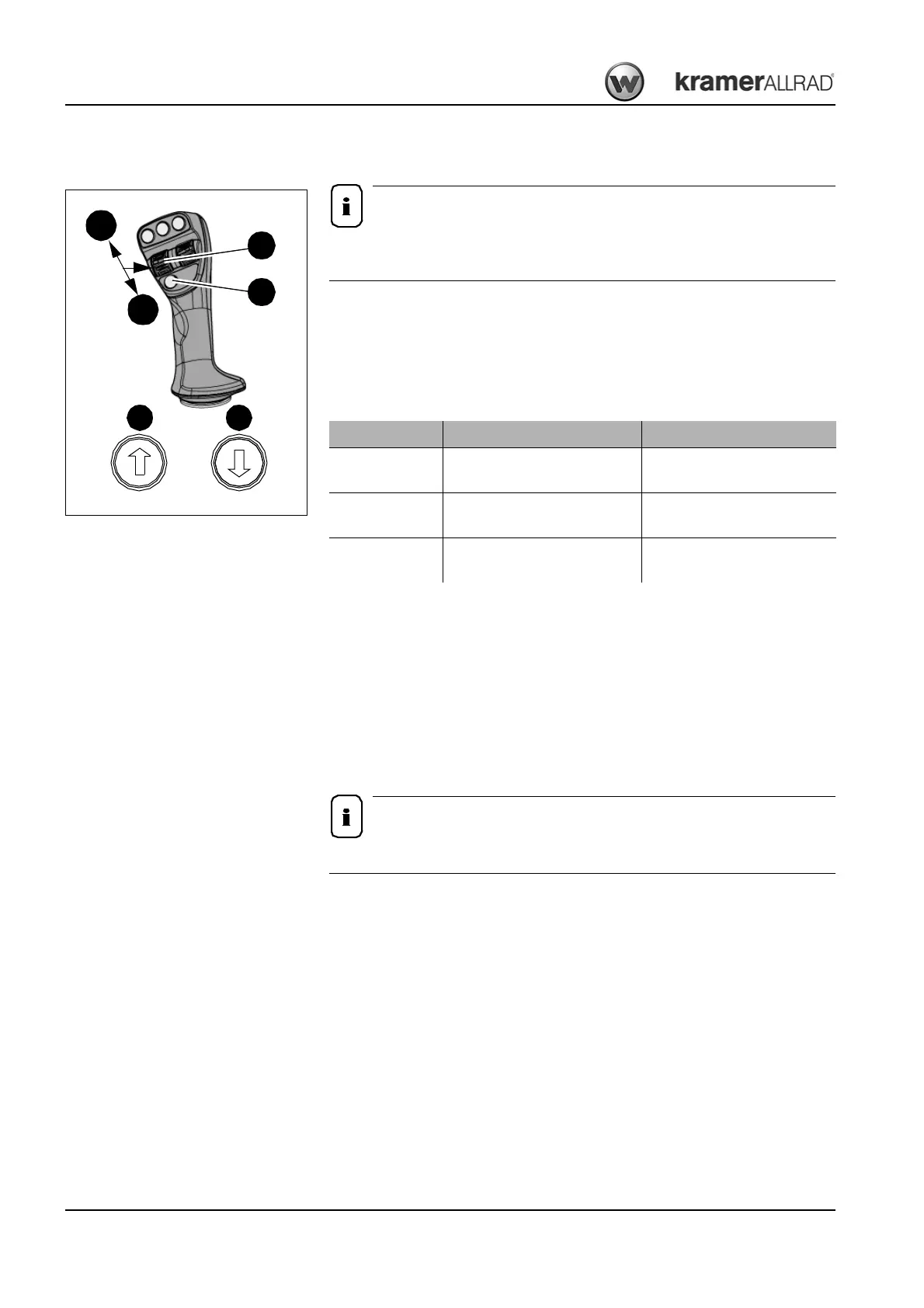

Fig. 62: Changing direction
R
103
102
Driving direction Operation Telltale on instrument panel
Forwards
Press switch 103 on the control
lever (joystick) forwards F
Telltale 51 comes on
Reverse
Press switch 103 on the control
lever (joystick) backwards R
Telltale 53 comes on
Neutral
Press tip switch 102 on the con-
trol lever (joystick)
Telltale 51/53 goes out
