Kramer 712N User Manual

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the 711N and the 712N
8
5.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors

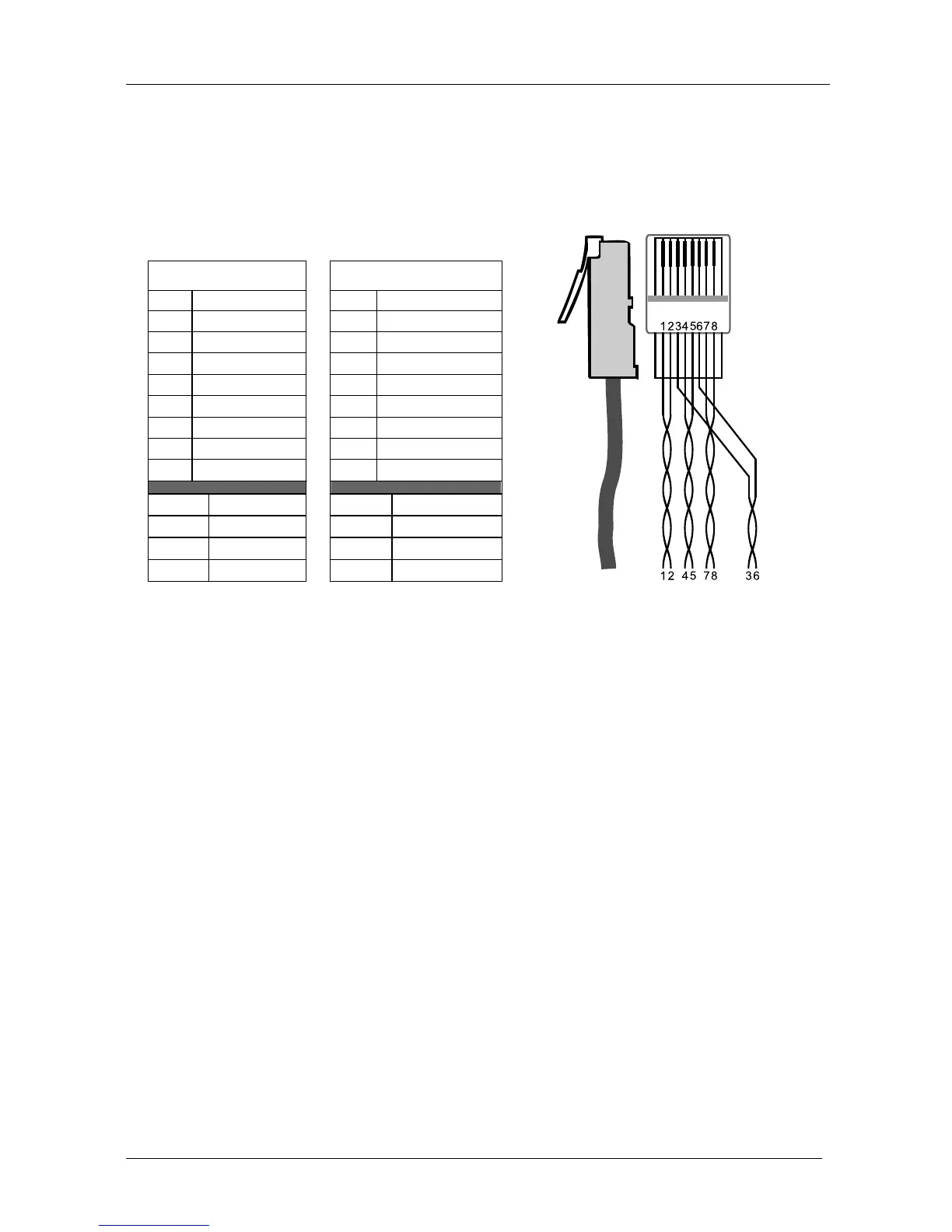

Table 3 and Figure 6 define the CAT 5 PINOUT, using a straight pin-to-pin
cable with RJ-45 connectors:
Table 3: CAT 5 PINOUT
EIA /TIA 568A EIA /TIA 568B
PIN Wire Color PIN Wire Color
1 Green / White 1 Orange / White
2 Green 2 Orange
3 Orange / White 3 Green / White
4 Blue 4 Blue
5 Blue / White 5 Blue / White
6 Orange 6 Green
7 Brown / White 7 Brown / White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8 Pair 4 7 and 8
Figure 6: CAT 5 PINOUT
