4 Putting into operation
Main indication 1
To access the contents of main display 1, press touch button 61
repeatedly.

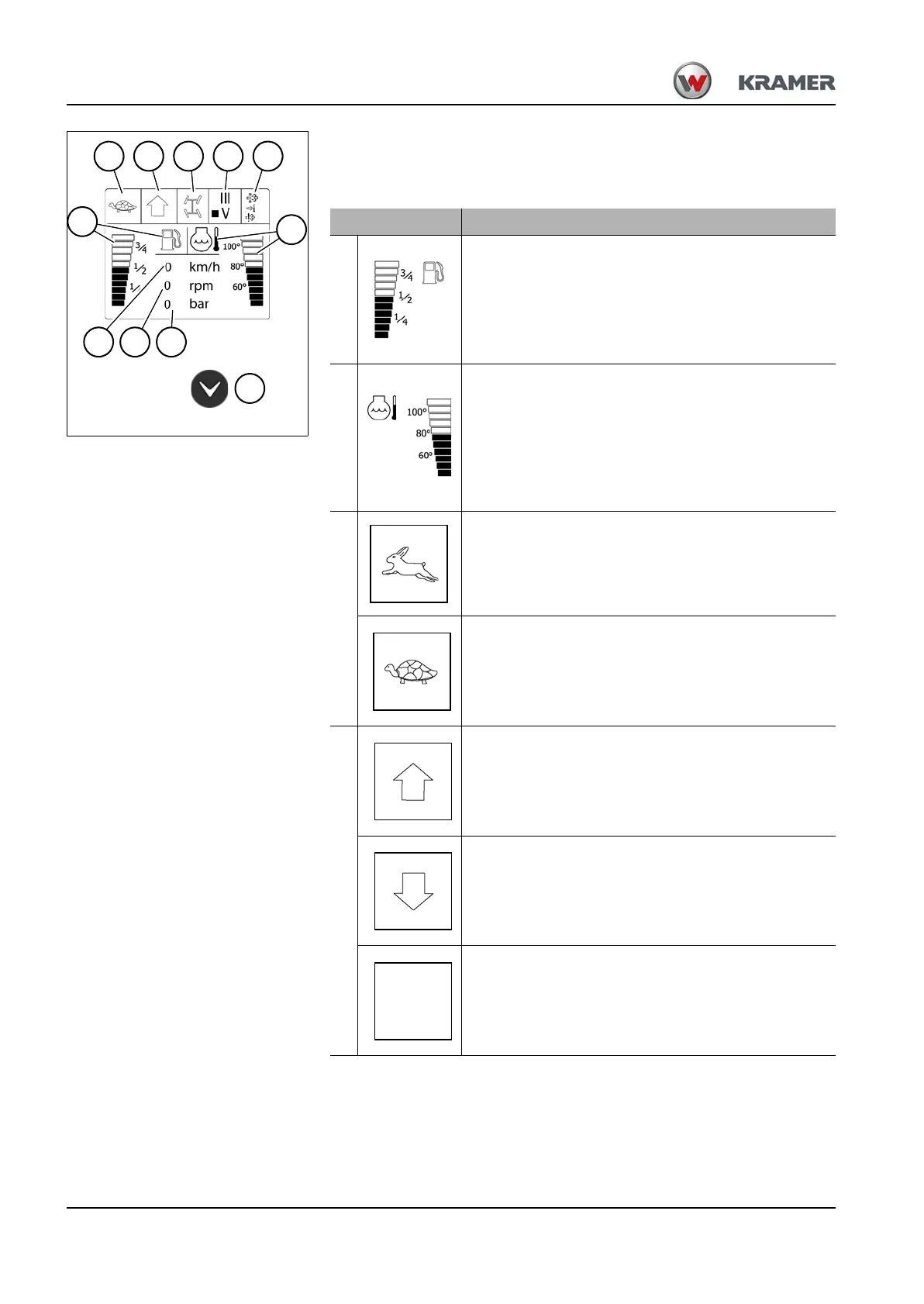

Fig. 78
B
A
C D E F G
H I J
61
Indication Meaning
A
Indication – fuel level/spare fuel
Indicates the fuel level detected by a resistance-
based sensor in the tank.
If the level is down to spare, the tank symbol starts
flashing and an acoustic warning sounds every
10 seconds.
B
Indication – coolant temperature
Indicates the engine coolant temperature detected by
a sensor.
When the maximum coolant temperature allowed is
reached, control lamp 75 on the indicating instrument
illuminates and an acoustic warning sounds
– see chapter 7 “Cooling system” on page 7-34.
C
Indicator display – high speed range (hare)
Illuminates if high speed is enabled with switch 57
– see chapter 5 “Overview of speed ranges” on
page 5-18.
Indicator display – work speed range (turtle)
Illuminates if work speed is enabled with switch 57
– see chapter 5 “Overview of speed ranges” on
page 5-18.
D
Indicator display – forward travel direction
Illuminates if forward machine travel is enabled
– see chapter 5 “Selecting a travel direction and
starting machine travel” on page 5-20.
Indicator display – reverse travel direction
Illuminates if reverse machine travel is enabled
– see chapter 5 “Selecting a travel direction and
starting machine travel” on page 5-20.
Indicator display – neutral travel direction
Illuminates if the travel direction is disabled
– see chapter 5 “Selecting a travel direction and
starting machine travel” on page 5-20.
