Operation 5
Putting the additional control circuit (proportional controls) into
operation
Connecting the flexible lines incorrectly results in incorrect
operation and/or uncontrolled movements of the attachment!
Failure to observe this can cause serious injury or death.
► Ensure that the flexible lines of the attachment are correctly connected
to the machine.
► Follow the instructions in the Operator’s Manual of the attachment
manufacturer.
► Check the response direction of the control elements before using the
attachment.
1. Lower the loader unit and apply the parking brake.
2. Stop the engine, but do not switch off ignition.

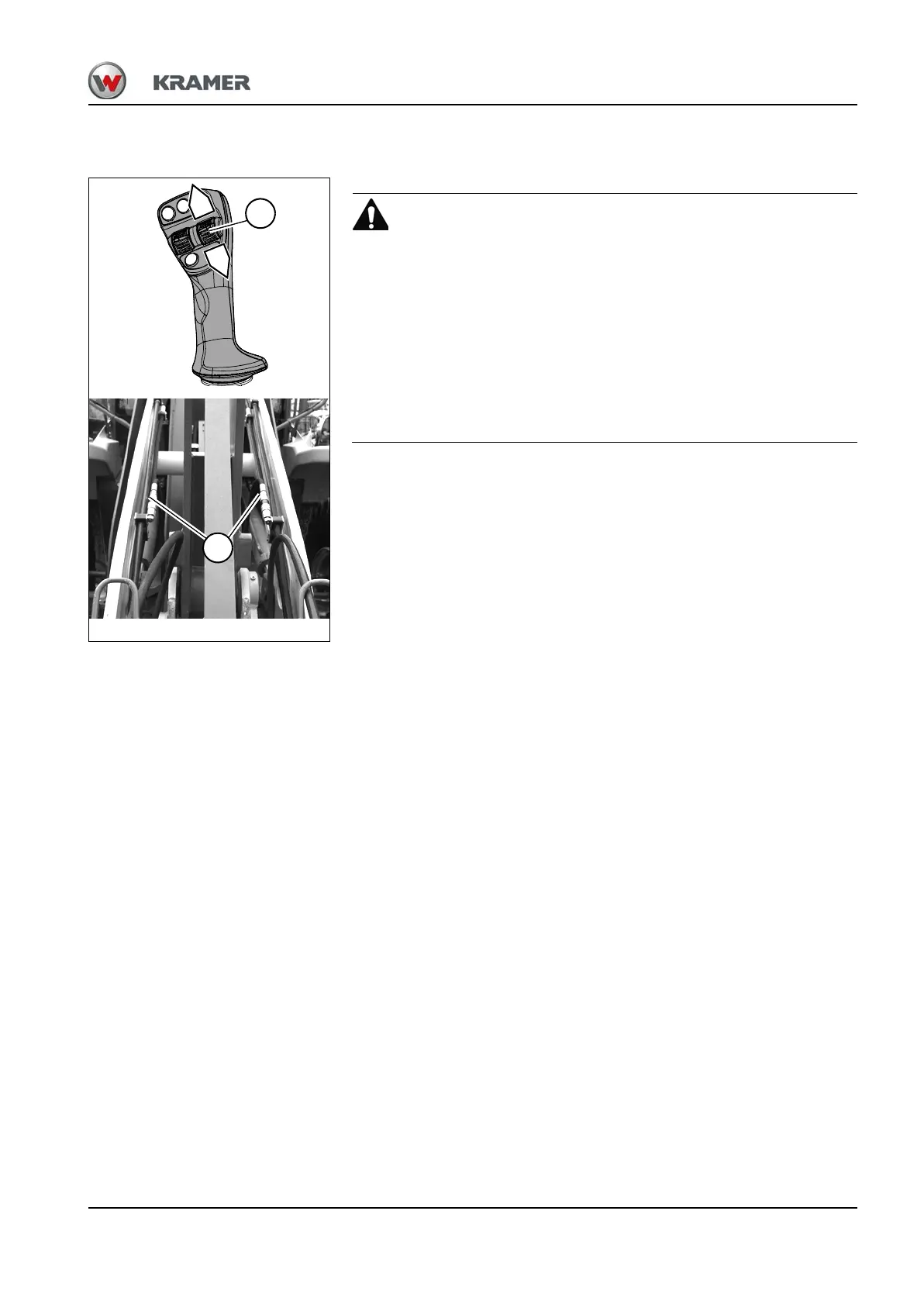

3. Release the pressure at the plug couplings. Press and hold the rocker
switch 86 in positions C and E for about 5 seconds each.
➥ Pressure in hydraulic lines is released.
4. Switch off the starter and remove the starting key.
5. Remove the flat connector plugs A from the dummy sockets and insert
them in the flat connector plugs on the attachment.
6. Start the engine.
7. Operate the additional control circuit (proportional controls) with the
scroll wheel 86 on the joystick.
