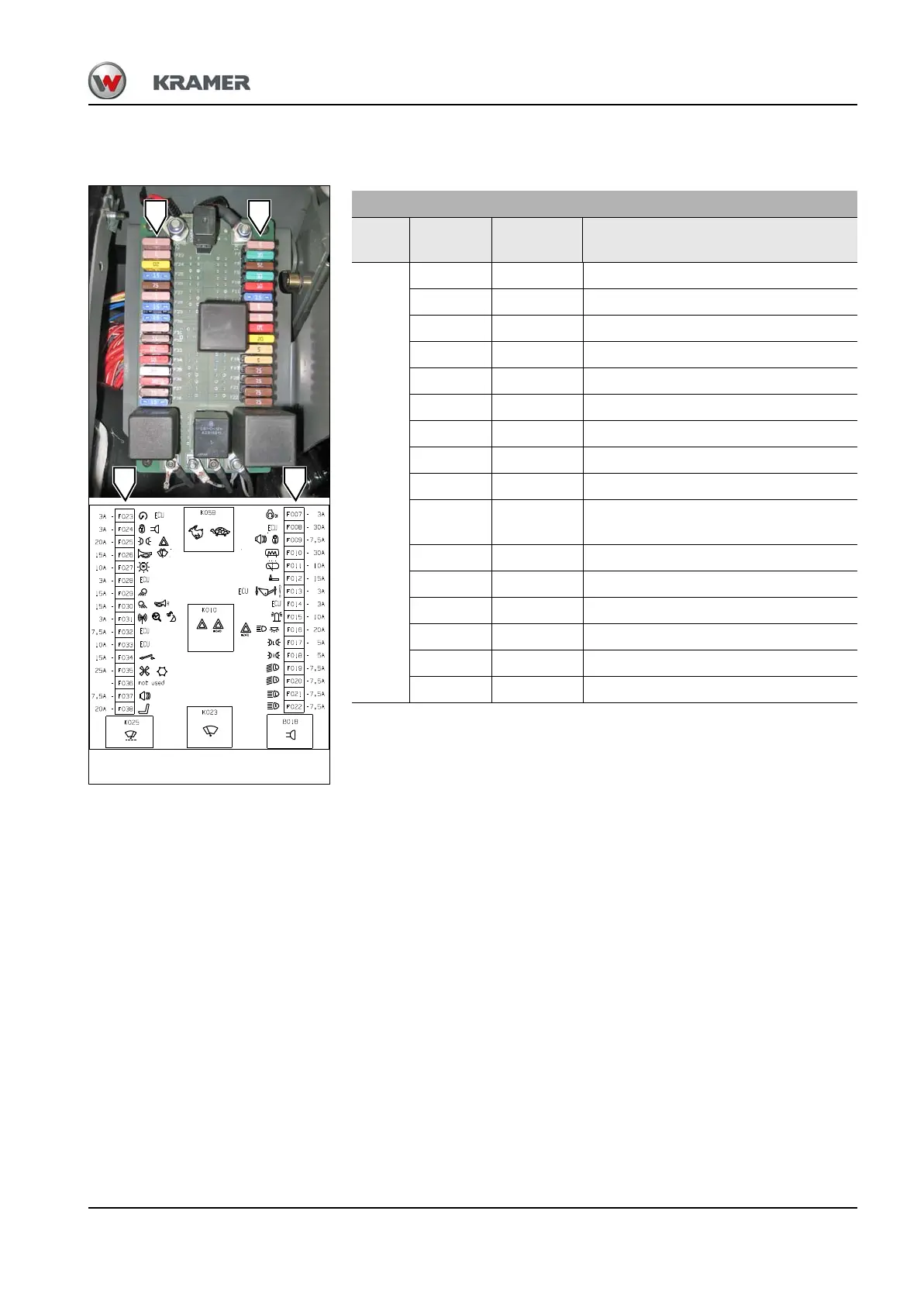

Fuse assignments (pos. A)
Fig. 312
A B
A B
Fuses in rear switching console in instrument panel, front left
Pos. BKM
Rated
current (A)
Protected circuit
A
F007 3 Starting key
F008 30 Cabin controller
F009 7,5 Radio and immobiliser
F010 30 Window heating
F011 10 Rear wiper
F012 15 12 V power outlet
F013 3 Cabin controller / overload warning
F014 3 Cabin controller
F015 10 Rotating beacon
F016 20
Hazard warning light / Flash light /
Interior light
F017 5 Left parking light / searchlight
F018 5 Right parking light / searchlight
F019 7,5 Low beam (left)
F020 7,5 Low beam (right)
F021 7,5 High beam (left)
F022 7,5 High beam (right)
