3 Introduction
Symbols

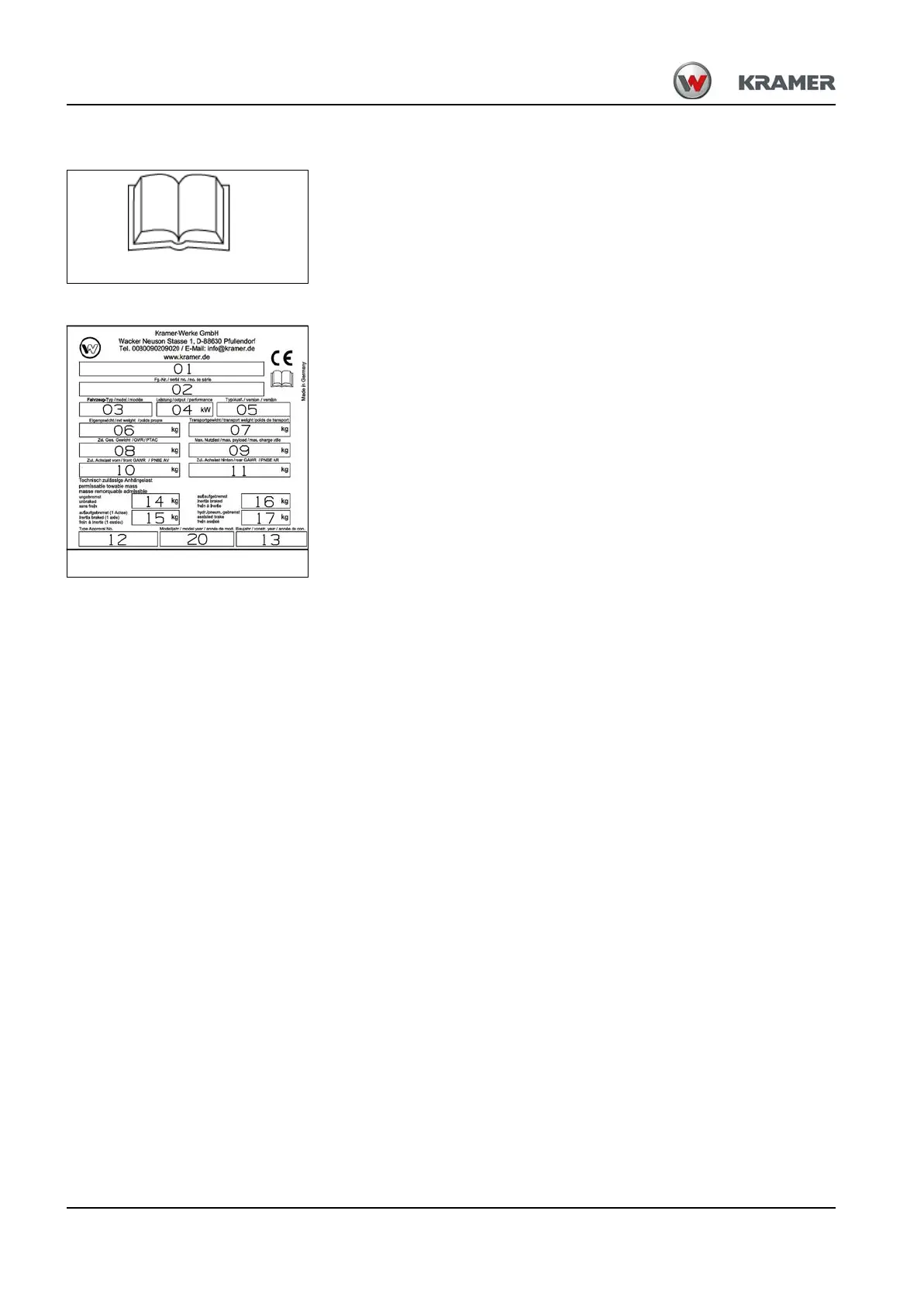

The “Book” symbol on the signs and type labels indicates that the
Operator’s Manual contains more detailed information and explanations.
Type label
The type label is located at the front right of the machine frame
(on one side of the loader unit bulkhead).
The CE mark on the type label means that the machine meets the
requirements of the Machine Directive 2006/42 EC within the European
Community and that the conformity procedure has been performed.
Example: type label indications
1. Machine designation
Wheel loader
2. Serial no.
352 04 xxxx
3. Machine model
352
4. Output (kW)
55,4 (74,4)
5. Machine model/version
352-04S
6. Dead weight (kg)
–
7. Transport weight (kg)
–
8. Permissible maximum weight (kg)
7000 (15432.36 lbs.)
9. Maximum payload (kg)
–
10.Front axle weight rating (kg)
4480 (9876.71 lbs.)
11.Rear gross axle weight rating (kg)
4480 (9876.71 lbs.)
12.Check number of EC approval
(only for machines with agricultural
and forestry licence)
e1*2003/37*xxxx*xx
13.Year of construction
xxxx
14.Gross unbraked trailer weight
rating
1
(kg)
1. Optional ball hitch – see chapter 9 “Trailer weight/drawbar load: trailer couplings (option)” on
page 9-24
750 (1653.47 lbs.)
15.Gross trailer weight rating
overrun brake (kg)
–
16.Gross trailer weight rating (kg)
overrun brake (1 axle)
3500 (7716.18 lbs.)
17.Gross trailer weight rating (kg)
(hydraulically/pneumatically braked)
14000 (30864.72 lbs.)
20.Model year
xxxx
Other information – see chapter 9 “Technical data” on page 9-1
