Introduction
The video and audio architecture is the same for the SMP-xx,SMP-xx-R and MP-xx frames.
SMP-xx frame - up to 4 video processing cards supporting up to 32 inputs and up to 2 independent multi-viewers.

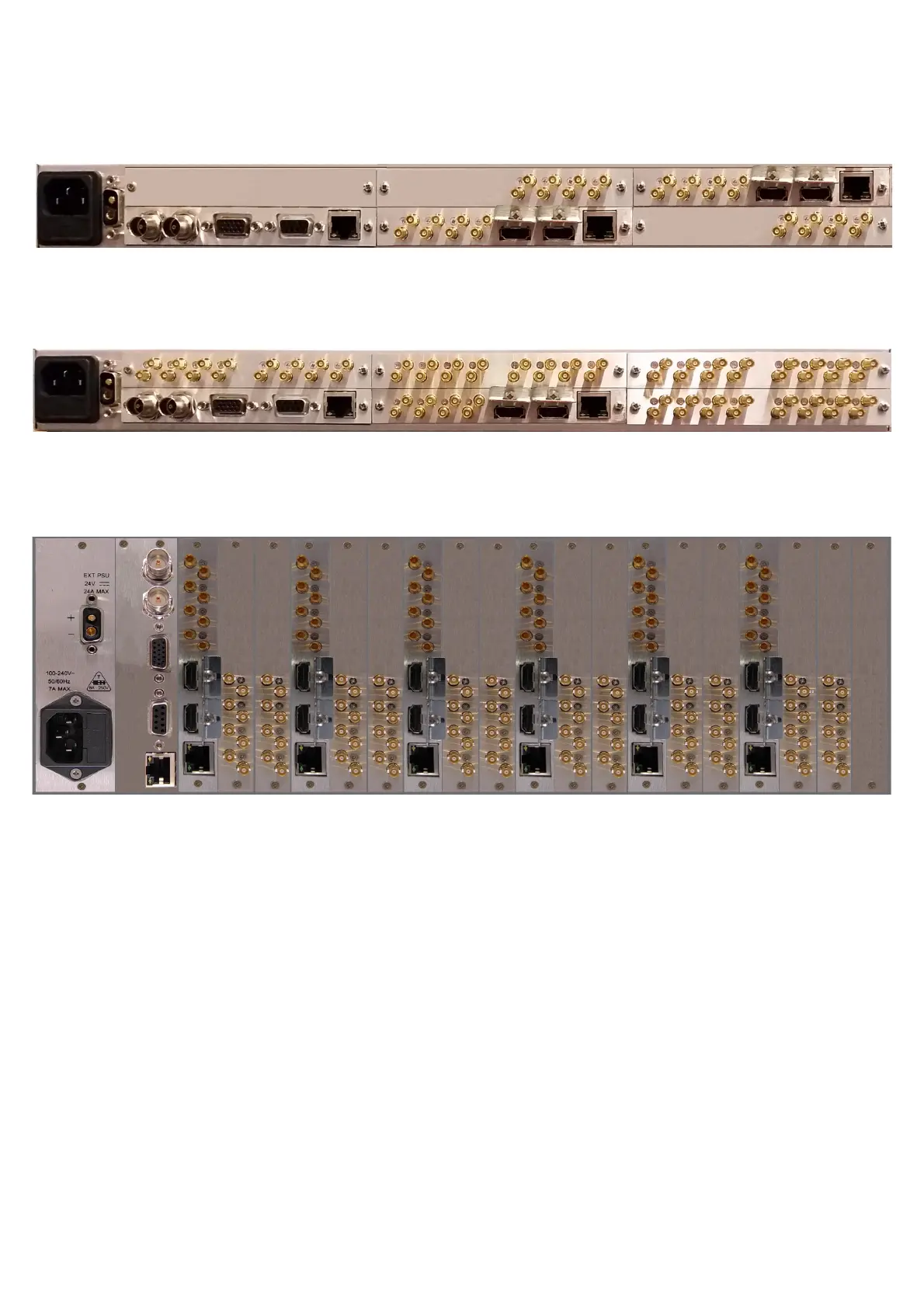

Rear View of a 2 x 4k quad input multiviewer
SMP-xx-R frame - up to 4 video processing cards supporting 32 inputs and 32 routing inputs.
Rear View of a 4k 32 input multiviewer with 32 routing outputs
MP-xx frame – up to 18 video processing cards supporting 144 inputs and up to 9 independent multiviewers.
Rear View of a 6 x 4k 16 input multiviewer
