SMP-xx-R (Integrated routers)
The SMP-xx-R frame has two integrated 32x32 non-blocking routers.
MV input router; offers a 32x32 non-blocking multi-viewer input capability which allows any SDI input to be routed to
any of the input channels on any VIP4.
SDI router; this is independent of the MV input router and functions as a stand-alone 32x32 non-blocking SDI router.

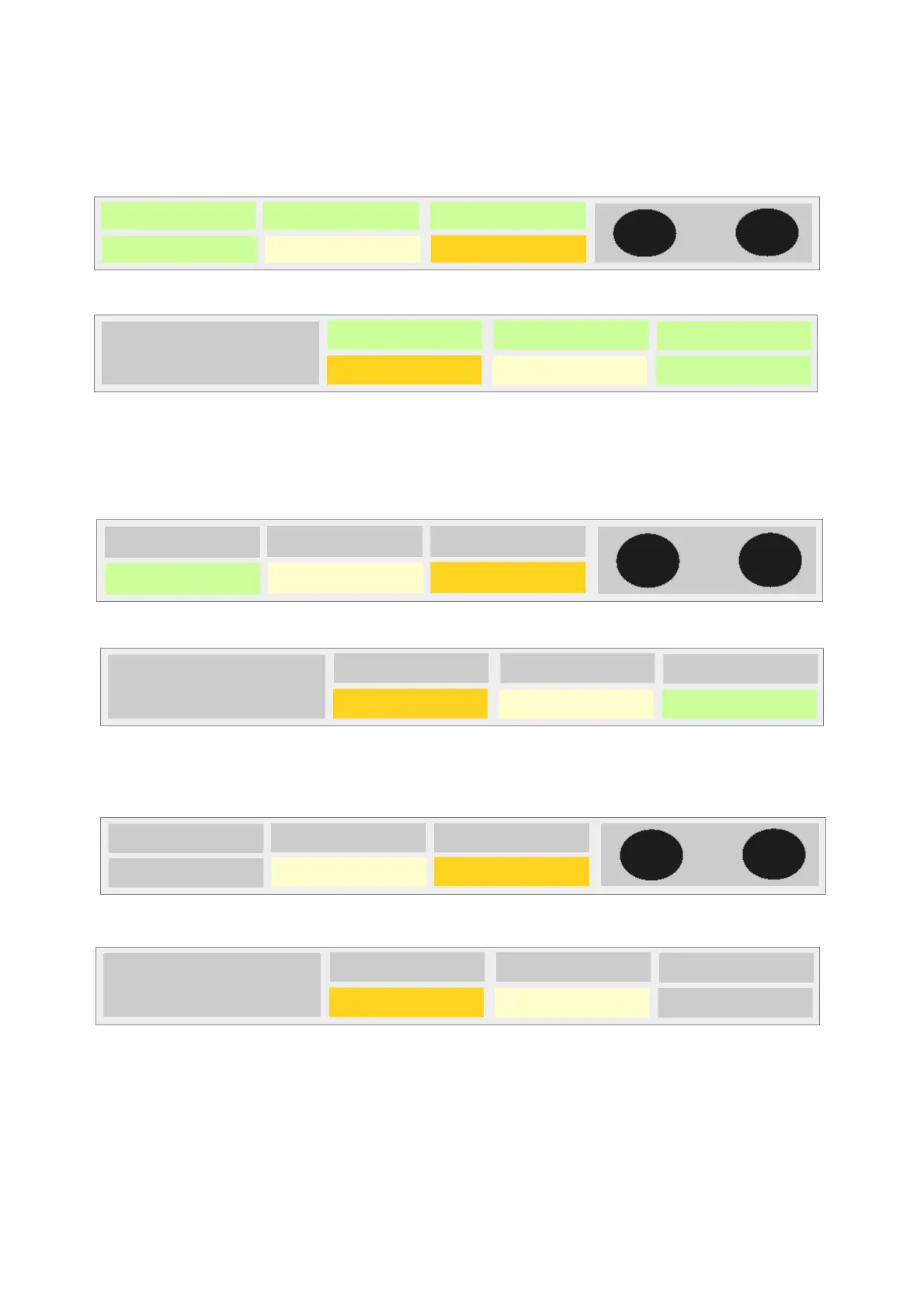

SMP-32-R, 32 channel input and output multi-viewer and SDI router:
Front View (Processing Cards)
Rear View (Input-Output Cards)
The router architecture also allows asymmetric routing for more cost effective solutions.
SMP-32-R, 32 x 8 asymmetric input multi-viewer
Front View (Processing Cards)
Rear View (Input-Output Cards)
SMP-32-R, 32 x 32 non-blocking SDI router
Front View (Processing Cards)
Rear View (Input-Output Cards)
Version 0.5
VIP4 (Slot 5)
Net (Slot 0)
VIP4 (Slot 4)
MVC2 (Slot1)
VIP4 (Slot 3)
PSU
VIP4 (Slot 2)
PSU
PSU
RMP-SD8R (Slot 5)
MPX-RNG (Slot 0)
RMP-SD8R (Slot 4)
RMP-MVCS8 (Slot1) RMP-SD8R (Slot 2)
RMP-SD8R (Slot3)
PSU
RMP-SD8R (Slot 5)
MPX-RNG (Slot 0)
RMP-SD8R (Slot 4)
RMP-MVCS8 (Slot1) RMP-SD8 (Slot 2)
RMP-SD8R (Slot3)
Net (Slot 0)
MVC2 (Slot1)
VIP4 (Slot 2)
Empty (Slot 3)
Empty (Slot 5)Empty (Slot 4)
PSU
Net (Slot 0)
MVC2 (Slot1)
Empty (Slot 2)
Empty (Slot 3)
Empty (Slot 5)Empty (Slot 4)
PSU
PSU
RMP-SD8R (Slot 5)
MPX-RNG (Slot 0)
RMP-SD8R (Slot 4)
RMP-MVCS8 (Slot1) RMP-SD8R (Slot 2)
RMP-SD8R (Slot3)
