9
1 Switch OFF the power on each device before connecting
it
to your VM-24H. After connecting your VM-24H, switch on its
power and then switch on the power on each device
2 Using the Kramer HD1v1Icopper cables
3 As required. Up to four outputs can be connected. Not all outputs need to be connected
4 Only connections from the first two acceptors and the last two acceptors are shown
in
Figure 2
4. Connect the power cord to the mains electricity (not shown in
"-"'==/
5.
If
required, acquire the EDID (see sectionM).
To connect the
VM-24H,
as illustrated
in
the example do the
following! :
1.
Connect" the two HDMI sources, for example, a DVD player and a set top
box, to the INPUT 1and INPUT 2 connectors, respectively.
2. Connect the HDMI OUTPUT connectors" to up to 4 HDMI acceptors,
using Kramer HDMI copper cables. In this example
4,
connect the:
• OUTPUT 1 connector to acceptor 1 (for example, a plasma
display)
• OUTPUT 2 connector to acceptor 2 (for example, an LCD TV)
• OUTPUT 3 connector to acceptor 3 (for example, an LCD TV)
• OUTPUT 4 connector to acceptor 4 (for example, a plasma
display)
3.
If
required, connect a PC and/or controller to the RS-232 port (see section

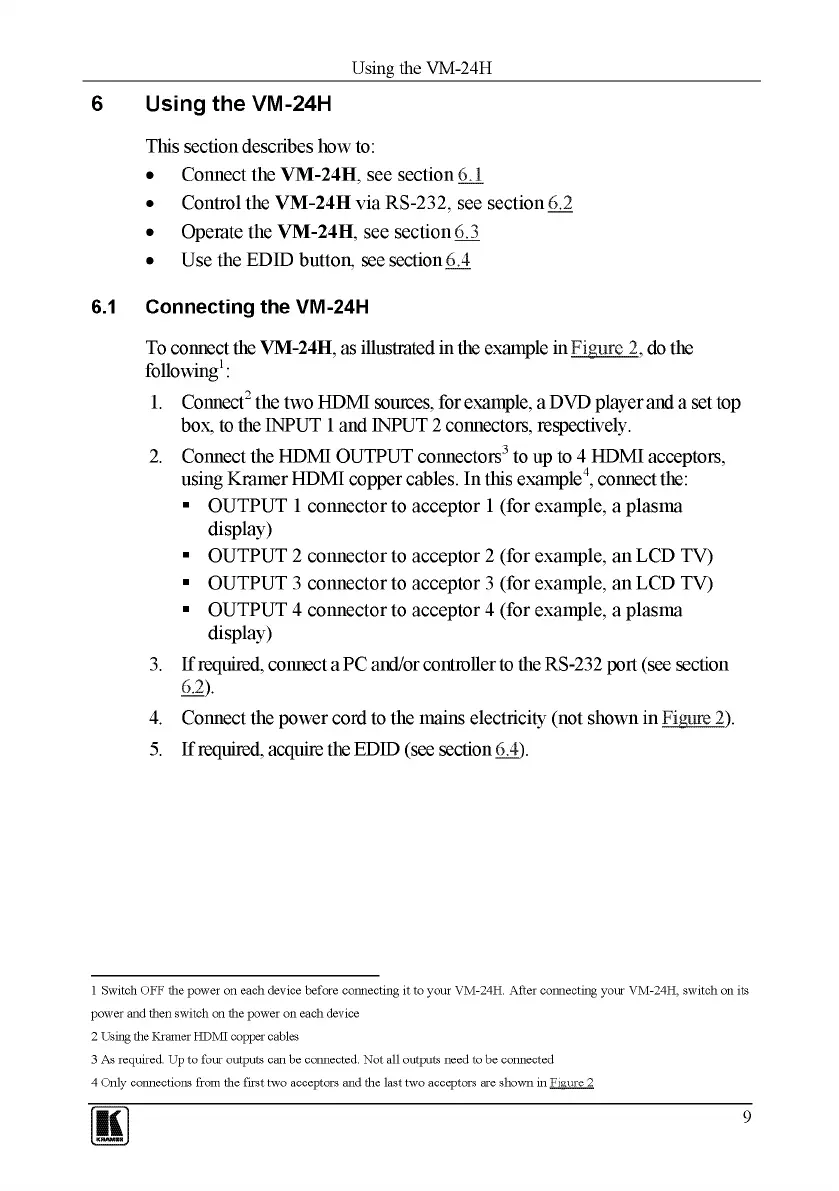

6.1 Connecting the VM-24H
This section describes how to:
• Connect the
VM-24H,
see section
• Control the
VM-24H
via RS-232, see section 6.2
• Operate the
VM-24H,
see section 6.3
• Use the EDID button, see section 6.4
6 Using the VM-24H
Using the VM-24H
