11
To operate the
VM-24H:
1. Turn ON the POWER.
2. Select the desired input.
3.
If
required, press the EDID button to acquire or change the EDID data
(see section
6.3 Operatingthe VM-24H

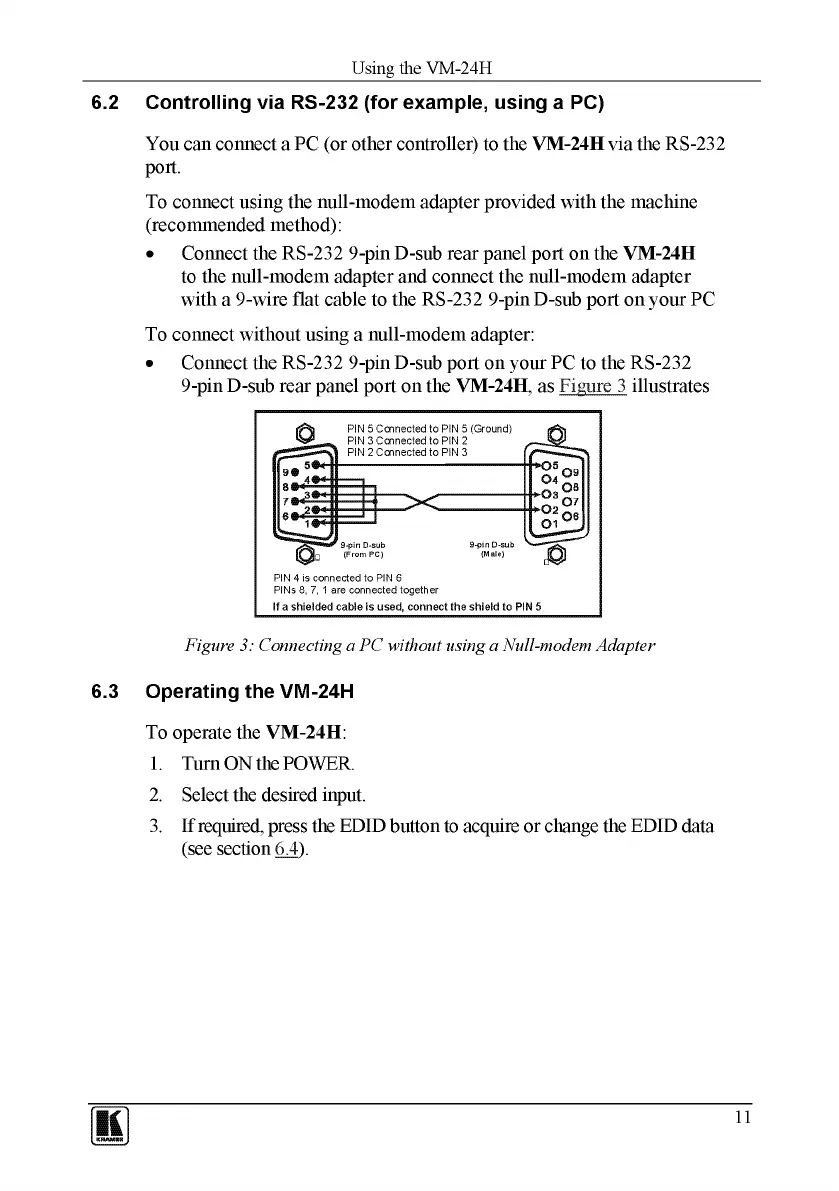

Figure
3:
Connecting a PC without using a Null-modem Adapter
PIN 4 is connected to PIN 6
PINs 8, 7, 1 are connected together
If
a
shielded cable is used, connect the shield to PIN 5
9-pinD-sub
(Male)
You can connect a PC (or other controller) to the
VM-24H
via the RS-232
port.
To connect using the null-modem adapter provided with the machine
(recommended method):
• Connect the RS-232 9-pin D-sub rear panel port on the
VM-24H
to the null-modem adapter and connect the null-modem adapter
with a 9-wire flat cable to the RS-232 9-pin D-sub port on your PC
To connect without using a null-modem adapter:
• Connect the RS-232 9-pin D-sub port on your PC to the RS-232
9-pin D-sub rear panel port on the
VM-24H,
as illustrates
6.2 Controlling via RS-232(for example,using a PC)
Using
the
VM-24H
