13
1 If you want to cancel the EDID modification, wait for a few seconds without touching any button
2 The factory-default which is programmed into the VM-24H before it is shipped
3 The EDID acquired is a weighted average of all the connected outputs. For example,
if
several displays
with
different
resolutions are connected to the outputs, the acquired EDID supports all the resolutions, as well as other parameters included
in the EDID

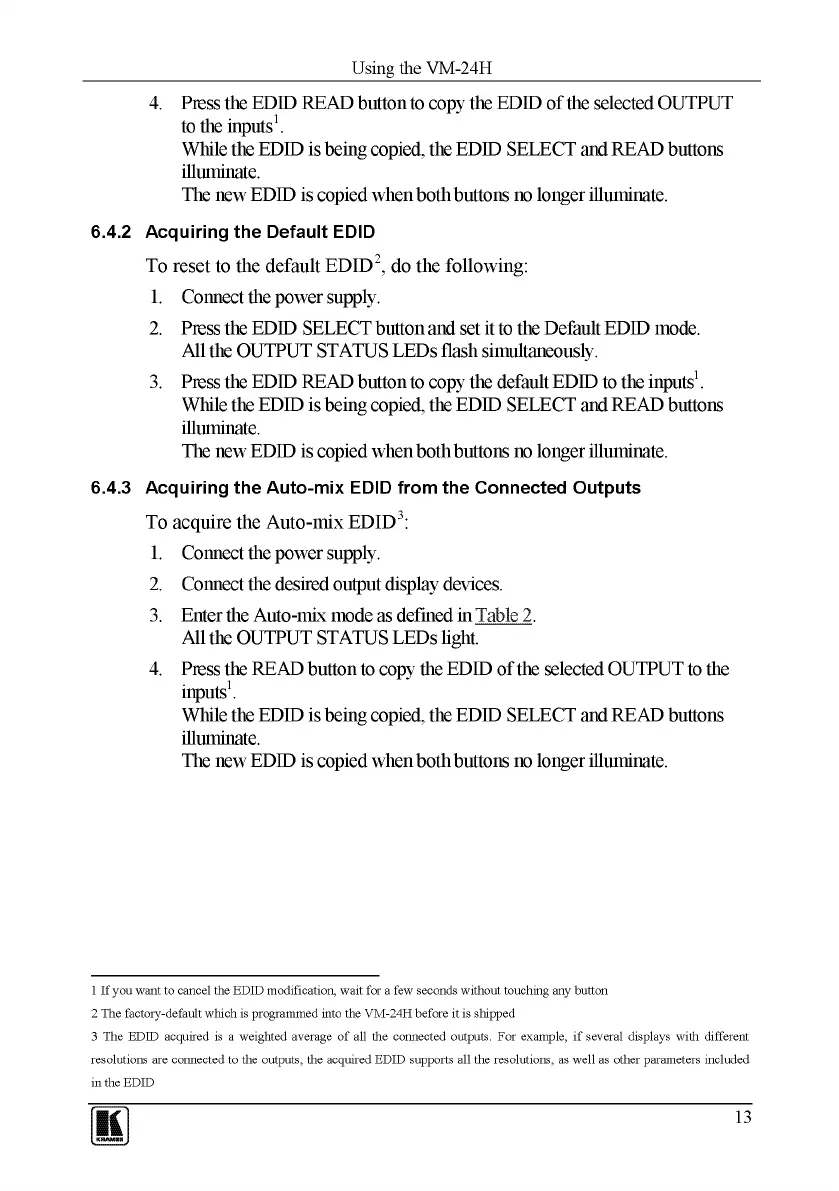

4. Press the EDID READ button to copy the EDID of the selected OUTPUT
to the inputs! .
While the EDID is being copied, the EDID SELECT and READ buttons
illuminate.
The new EDID is copied when both buttons no longer illuminate.
6.4.2 Acquiring the Default EDID
To reset to the default EDID2, do the following:
l.
Connect the power supply.
2.
Press the EDID SELECT button and set it to the Default EDID mode.
All the OUTPUT STATUS LEDs flash simultaneously.
3. Press the EDID READ button to copy the default EDID to the inputs'.
While the EDID is being copied, the EDID SELECT and READ buttons
illuminate.
The new EDID is copied when both buttons no longer illuminate.
6.4.3 Acquiring the Auto-mix EDID from the Connected Outputs
To acquire the Auto-mix EDID3:
l.
Connect the power supply.
2.
Connect the desired output display devices.
3. Enter the Auto-mix mode as defmed
All the OUTPUT STATUS LEDs light.
4. Press the READ button to copy the EDID of the selected OUTPUT to the
inputs'.
While the EDID is being copied, the EDID SELECT and READ buttons
illuminate.
The new EDID is copied when both buttons no longer illuminate.
Using the
VM-24H
