Kramer Electronics Ltd.
VM‑4HDT, VM‑3HDT, VM‑2HDT – Connecting the VM‑4HDT, VM‑3HDT and VM‑2HDT
8
HDBT RJ-45 Pinout
Use a straight pin-to-pin cable with RJ-45 connectors.
We recommend that for HDBT cables, the ground shielding be connected/soldered to the
connector shield.
For optimum range and performance use the recommended Kramer cables available at
www.kramerav.com/product/VM-4HDT.

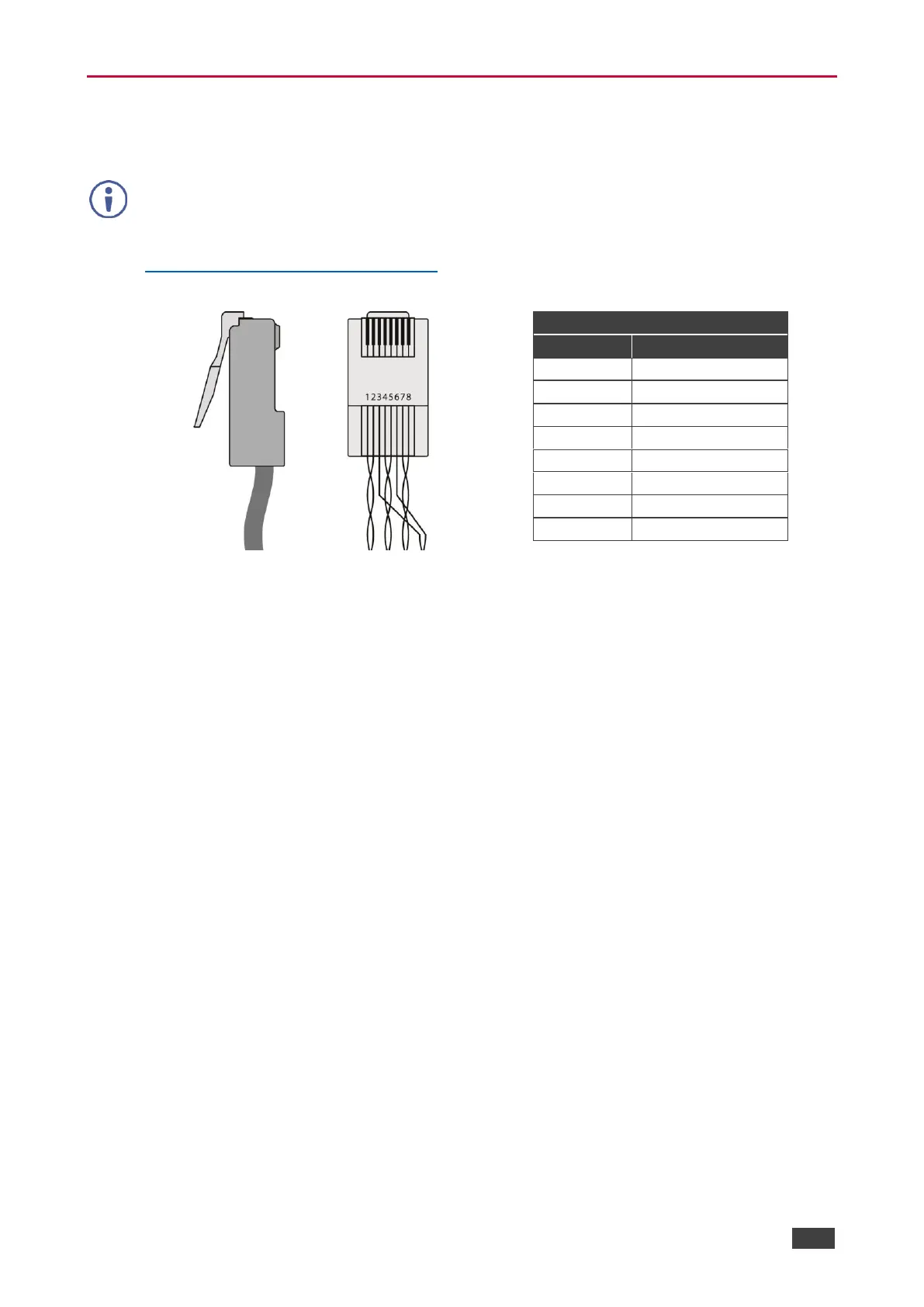

Figure 6: HDBT Connector Pinout
PIN EIA /TIA 568B
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
