Kramer Electronics Ltd.
VM‑4HDT, VM‑3HDT, VM‑2HDT – Introduction
4

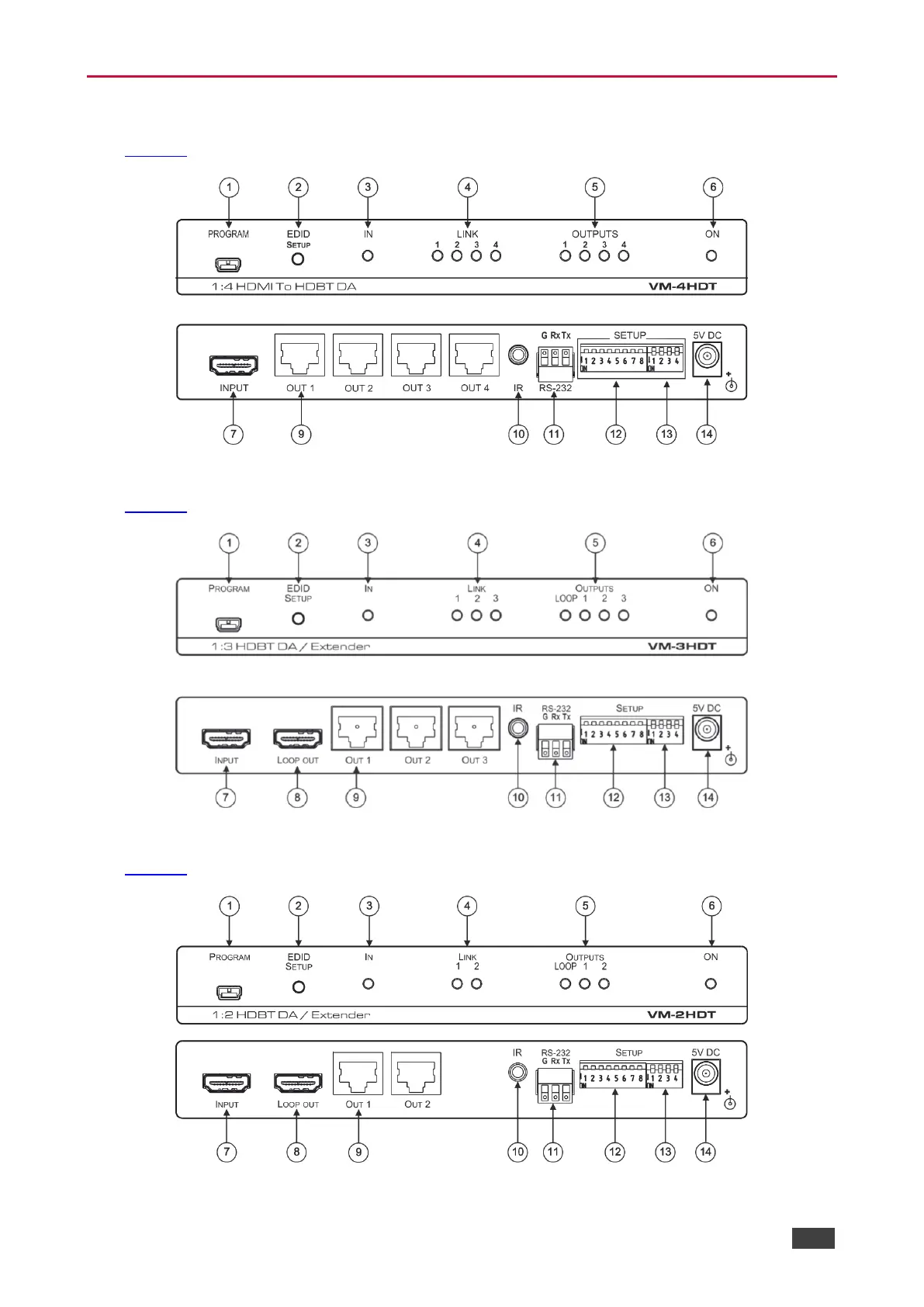

Defining the HDMI to HDBT DA
Figure 1 defines the VM‑4HDT.
Figure 1: VM‑4HDT 1:4 HDMI to HDBT DA
Figure 2 defines the VM‑3HDT.
Figure 2: VM‑3HDT 1:3 HDBT DA/Extender
Figure 3 defines the VM‑2HDT.
Figure 3: VM‑2HDT 1:2 HDBT DA/Extender
