Kramer VP-440X Quick Start Guide

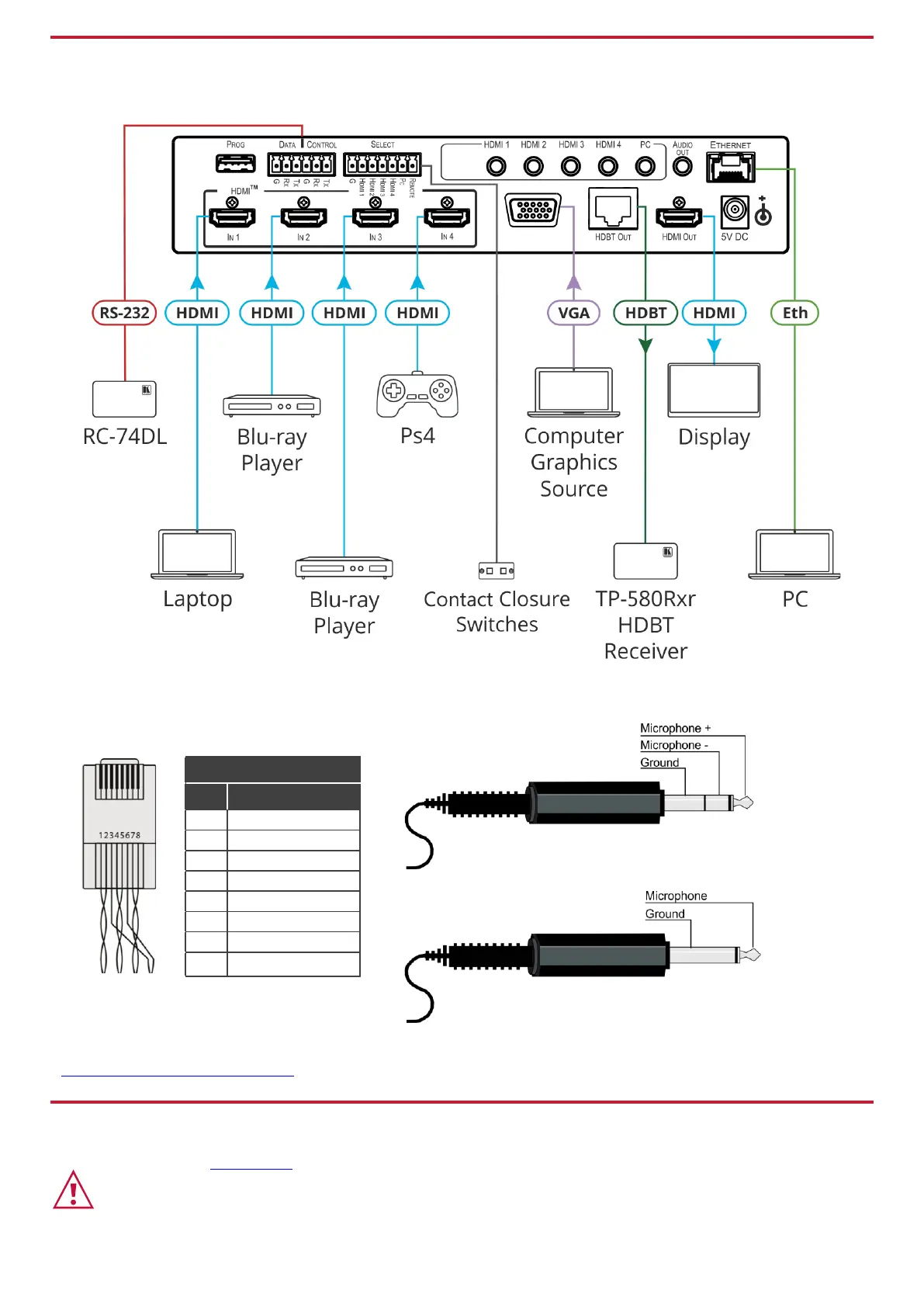

Step 4: Connect the inputs and outputs
Always switch OFF the power on each device before connecting it to your VP-440X. For best results, we recommend that you
always use Kramer high-performance cables to connect AV equipment to VP-440X.
RJ-45 Pinout:
Microphone Pinout:
For HDBT cables, it is recommended that the
cable ground shielding be connected/soldered
to the connector shield.
The microphone 6mm jack pinout for a condenser microphone
The microphone 6mm jack pinout for a dynamic microphone.
PIN EIA /TIA 568B
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
For optimum range and performance use the
recommended Kramer cables available at
www.kramerav.com/product/VP-440X.
Step 5: Connect the power
Connect the power adapter to VP-440X and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.
• There are no operator serviceable parts inside the unit.
Warning:
• Use only the power cord that is supplied with the unit.
• Disconnect the power and unplug the unit from the wall before installing.

Kramer VP-440X Specifications

General

Control type	Buttons
Product color	Black
EDID management	Yes
Housing material	Aluminum
Scaled resolutions	640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1280 x 768, 1280 x 800, 1360 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 3840 x 2160
HDMI in	4
RJ-45 ports quantity	2
Number of HDMI outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
HDCP version	1.4/2.2
Supported frame rate	24, 25, 30, 50, 60 fps
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Supported chroma subsampling	4:4:4
Power consumption (typical)	18 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Package depth	212 mm
Package width	351 mm
Package height	72 mm
Package weight	1600 g

Weight and Dimensions

Depth	163 mm
Width	214.6 mm
Height	43.6 mm
Weight	1100 g
