Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter
9

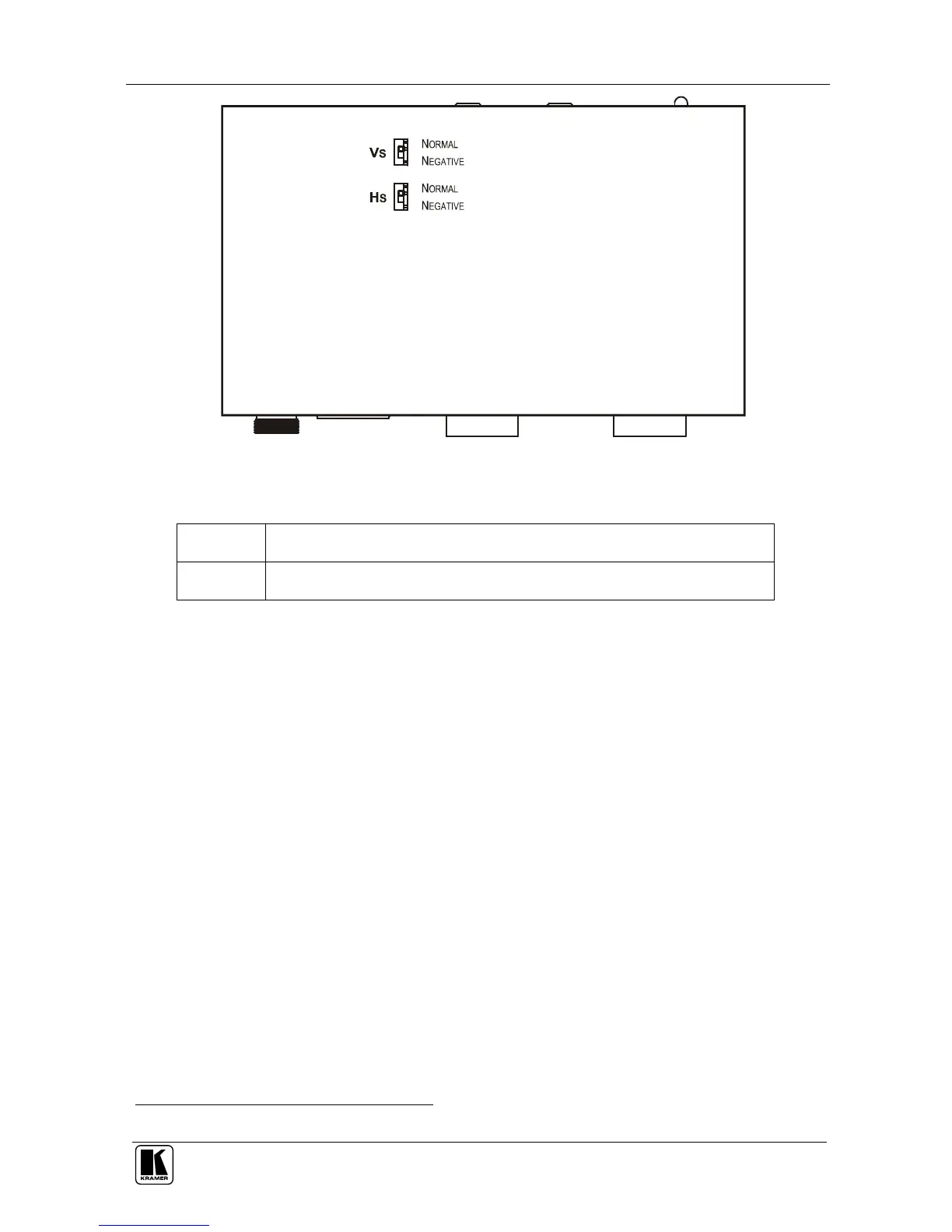

Figure 3: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter
Table 3: VP-200XLTHD XGA Line Amp / CAT 5 Transmitter Features
VS Switch Slide the switch downward to change the VS polarity to negative polarity
1
;
slide the switch upward to retain the polarity (default)
HS Switch Slide the switch downward to change the HS polarity to negative polarity
1
;
slide the switch upward to retain the polarity (default)
6 Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter
This section describes the topside (see section 6.1), and the underside (see
section 6.2) of the VP-300T 1:2 XGA DA/ CAT 5 Transmitter.
6.1 Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Topside)
The VP-300T is a high-performance distributor for computer graphics
signals, accepting one input, providing necessary buffering and isolation,
and distributing the signal to its identical 2 outputs, as well as transmitting it
over UTP CAT 5 cable to its appropriate receiver. In particular, the
VP-300T has a:
 Video bandwidth exceeding 430MHz, ensuring transparency even
when operating at the highest resolutions
 Transmission range of more than 300ft (more than 100m) over
UTP cabling
 Switch for ID Bit control
 Is 12V DC fed
1 Downgoing syncs
