Connecting the VP-5T/VP-5THD and the VP-5R
23
11.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors
Table 10 and Figure 13 define the UTP CAT 5 PINOUT, using a straight
pin to pin cable with RJ-45 connectors:
Table 10: CAT 5 PINOUT
EIA /TIA 568A EIA /TIA 568B
PIN Wire Color PIN Wire Color
1 Green / White 1 Orange / White
2 Green 2 Orange
3 Orange / White 3 Green / White
4 Blue 4 Blue
5 Blue / White 5 Blue / White
6 Orange 6 Green
7 Brown / White 7 Brown / White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8
Pair 4 7 and 8

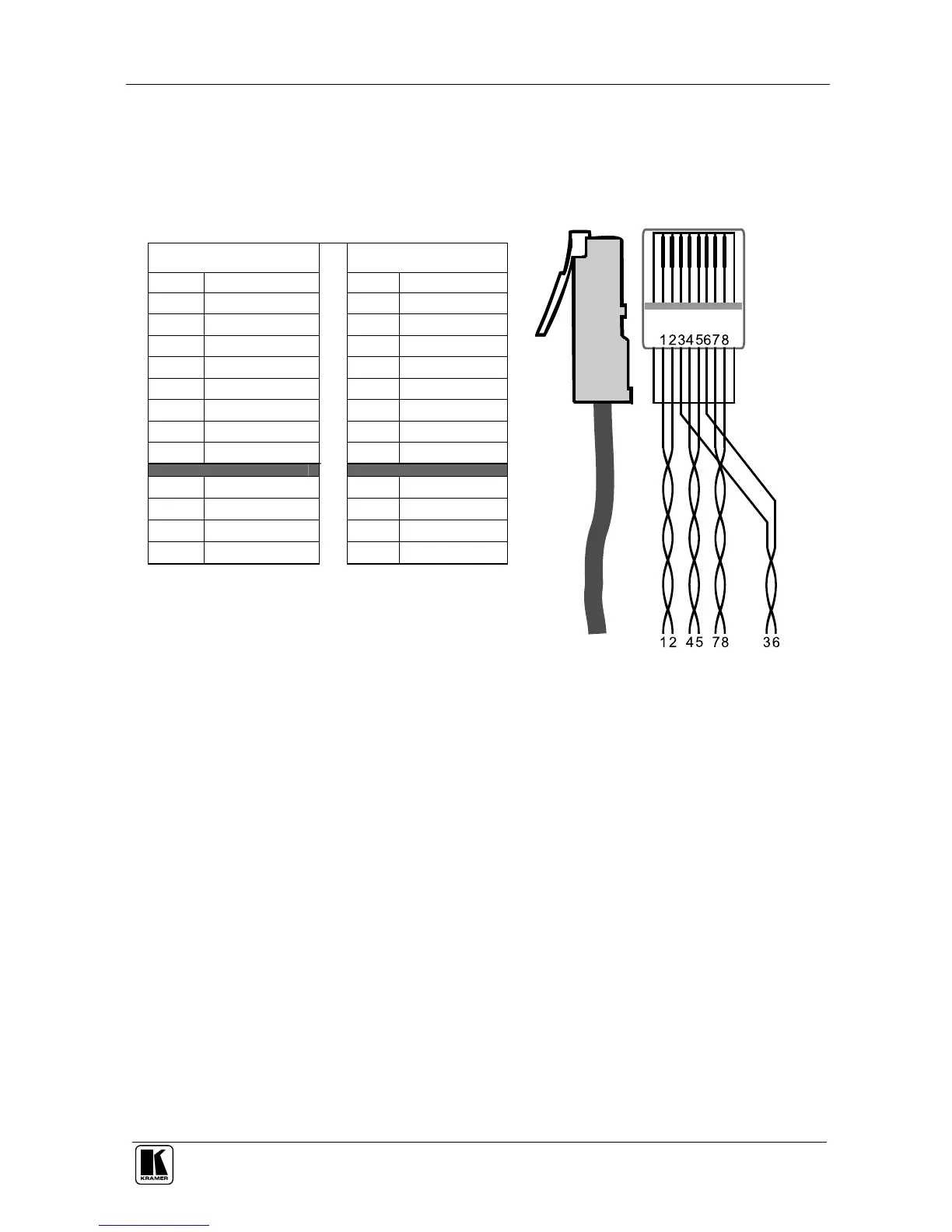

Figure 13: CAT 5 PINOUT
