Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter
10
Figure 4 and Table 4 define the VP-300T:

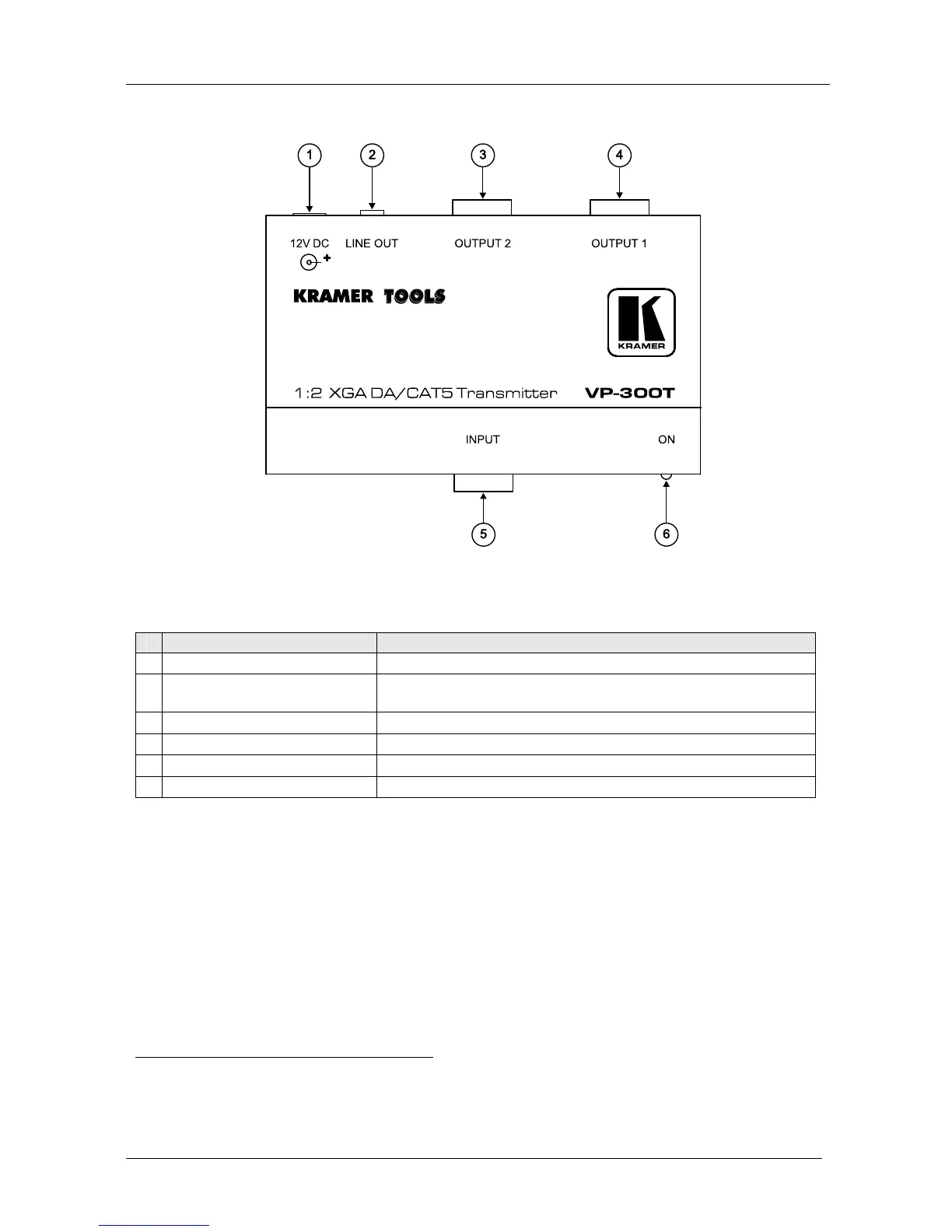

Figure 4: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Topside)
Table 4: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Topside) Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 LINE OUT RJ-45 Connector
Connects to
1
the LINE IN RJ-45 connector on the TP-120 XGA Line
Receiver
2
or the VP-5R CAT 5 Receiver / 1:5 VGA/UXGA Distributor
3 OUTPUT 2 15-pin HD Connector Connect to the XGA acceptor 2
4 OUTPUT 1 15-pin HD Connector Connect to the XGA acceptor 1
5 XGA INPUT 15-pin HD Connector Connect to the XGA source
6 ON LED Illuminates when receiving power
6.2 Your VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Underside)
Figure 5 and Table 5 define the underside of the VP-300T 1:2 XGA DA/
CAT 5 Transmitter:
1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 10 and Figure 13)
2 Refer to the separate user manual: PT-110, PT-120, TP-120, WP-110, which can be downloaded from the Internet at this
URL: http://www.kramerelectronics.com
