Kramer VS-44H2 Quick Start Guide

#

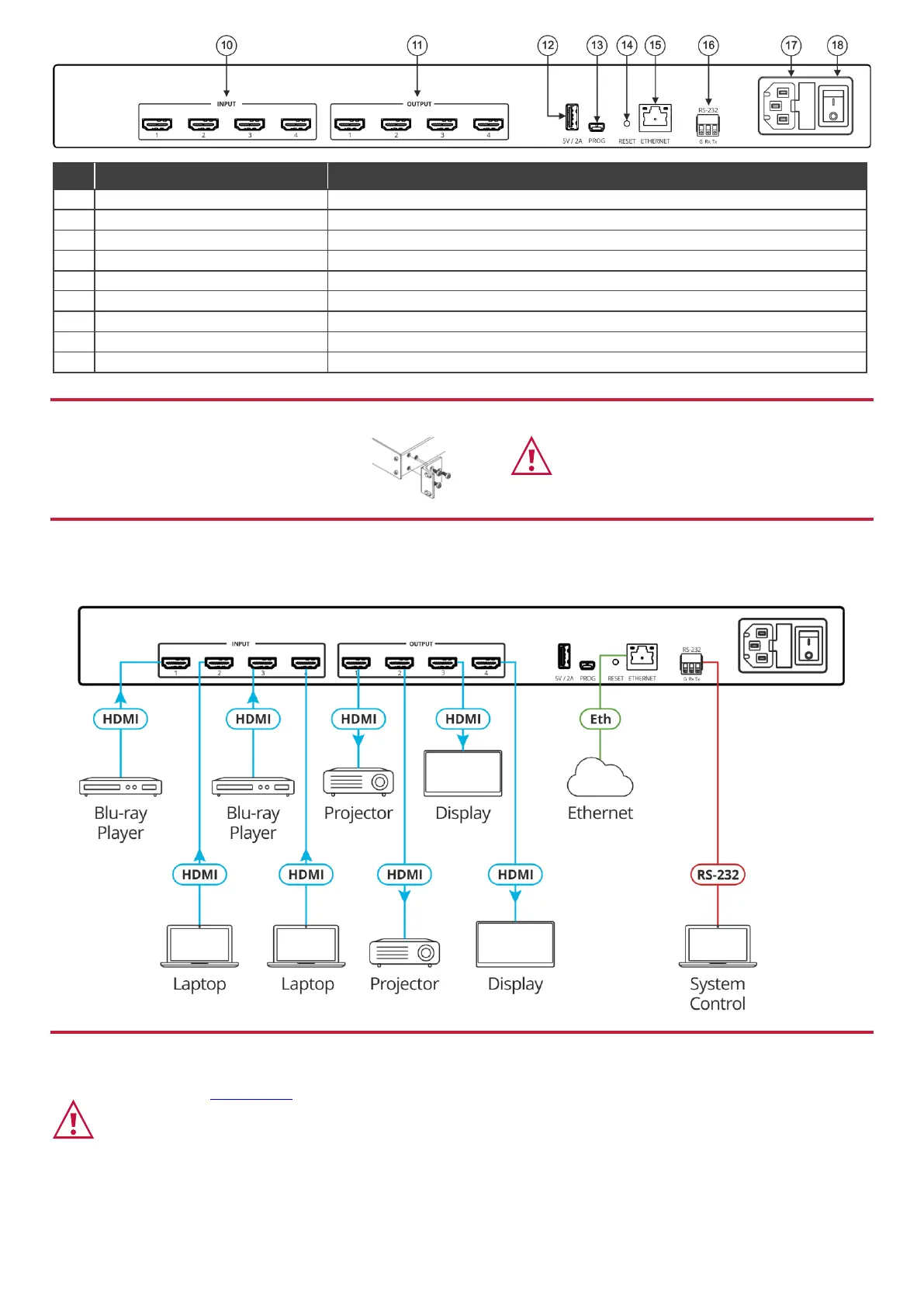

Feature
Function
10
HDMI™ IN Connectors (1 to 4)
Connect to up to 4 HDMI sources.
11
HDMI OUT Connectors (1 to 4)
Connect to up to 4 HDMI acceptors.
12
5V/2A USB Port
Use to charge a device.
13
PROG USB Mini port
Connect to a PC/serial controller to control the device.
14
Reset Button
Press and hold for about 8 seconds to reset IP settings to factory default values.
15
ETHERNET RJ-45 Connector
Connect to a PC via a LAN.
16
RS-232 9-pin D-sub Connector
Connect to a PC/serial controller to control the device.
17
Mains Power Connector Fuse
Plug in the power cord.
18
Power Illuminated Switch
Turn the device on and off.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Step 3: Mount VS-44H2
To rack mount the machine, attach both rack ears
(by removing the screws from each side of the
machine and replacing those screws through the
rack ears) or place the machine on a table.
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
Step 4: Connect the inputs and outputs
Always switch OFF the power on each device before connecting it to your VS-44H2. For best results, we recommend that you
always use Kramer high-performance cables to connect AV equipment to the VS-44H2.
Step 5: Connect power
Connect the power cord to VS-44H2 and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.
• There are no operator serviceable parts inside the unit.
Warning:
• Use only the power cord that is supplied with the unit.
• Disconnect the power and unplug the unit from the wall before installing.
• Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.
• To ensure continuous risk protection, replace fuses only according to the rating specified on the product label which located on the bottom of the unit.
