Kramer WP-561 - WP-562 HDMI Receiver Module Details

Your WP-561, WP-562 HDMI Transmitter/Receiver Pair
9
4.2 Your WP-562 HDMI Line Receiver
Figure 4
, Figure 5, Figure 6, and Table 2 define the receiver module.

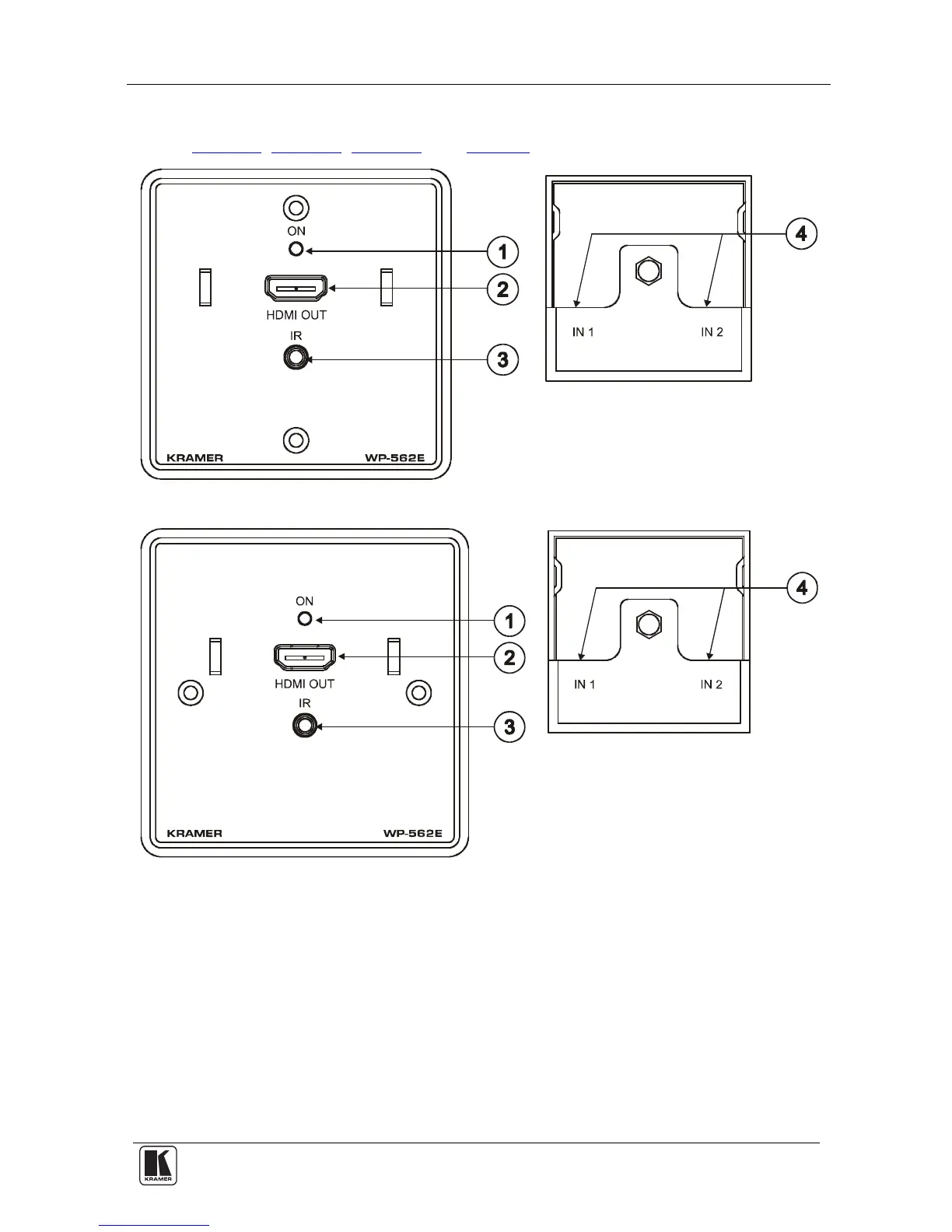

Figure 4: WP-562 HDMI Line Receiver Belgian/German Model Functions
Figure 5: WP-562 HDMI Line Receiver UK/European Model Functions
