Kramer WP-561 - Figure 6: WP-562 HDMI Line Receiver US Model Functions; Table 2: WP-562 HDMI Line Receiver Functions

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your WP-561, WP-562 HDMI Transmitter/Receiver Pair
10

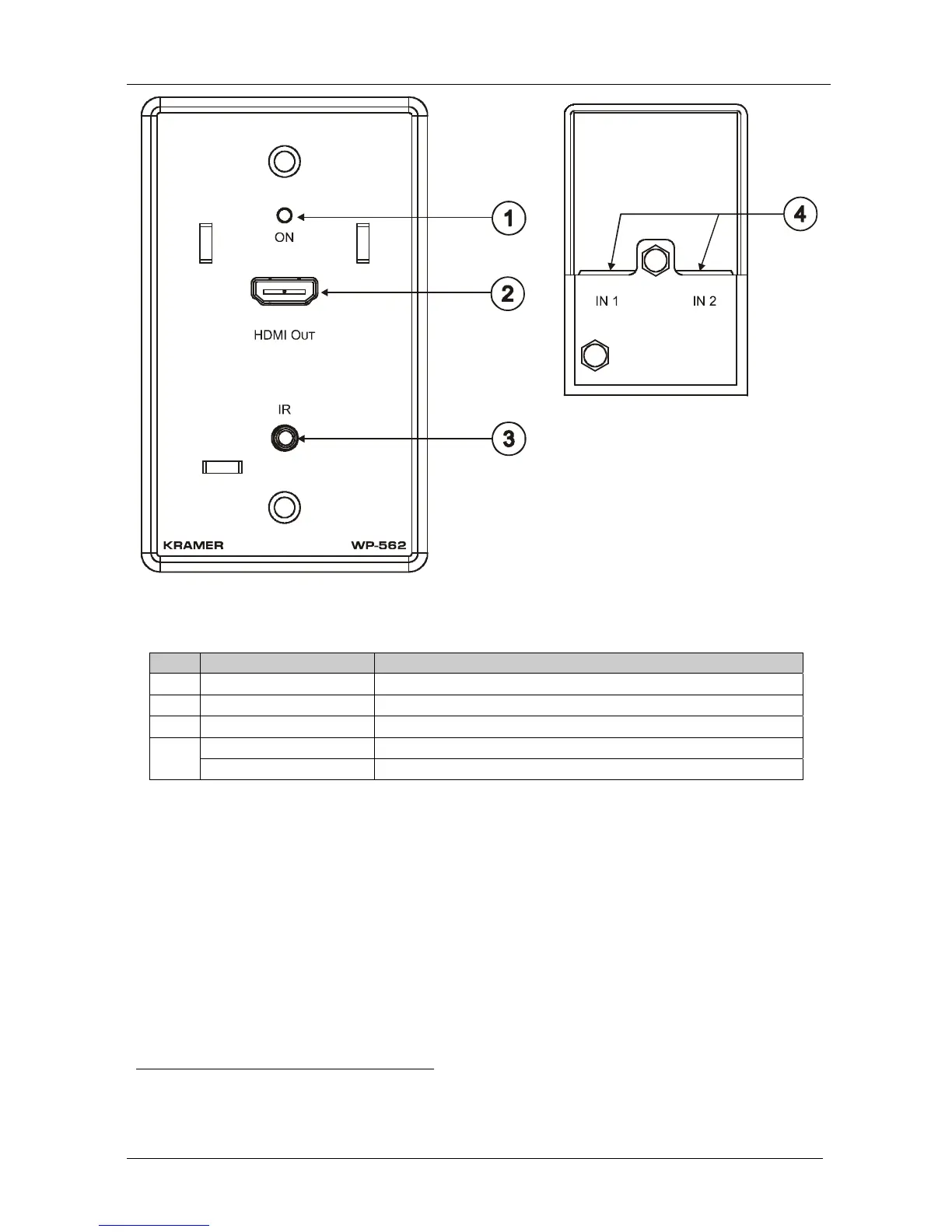

Figure 6: WP-562 HDMI Line Receiver US Model Functions
Table 2: WP-562 HDMI Line Receiver Functions
# Feature Function
1 ON LED Illuminates red when powered on, green when transmitting data
2 HDMI OUT Connector Connects to an HDMI acceptor
3 IR 3.5mm Mini Jack Connects to an IR transmitter or IR receiver
1
4 IN 1 Connector Connects to the OUT 1 RJ-45 connector on the WP-561
IN 2 Connector Connects to the OUT 2 RJ-45 connector on the WP-561
1 Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or
C-A35M/2IRE
