Kraus Bolden KPF-1610 Installation Manual

Connect waterlines(5A&B)
to angle stops. Tighten
both ends of waterlines
with a wrench until snug.
Turn on hot and cold angle
stops and check for leaks
Step 6: Flush spray hose
Step 7: Check for leaks
Remove spray head (1) from
spray hose (6). Hold tip of
spray hose (6). Turn faucet on
and let the water run for 60
seconds to ush any debris
Check for leaks at the
connections. Retighten if
necessary

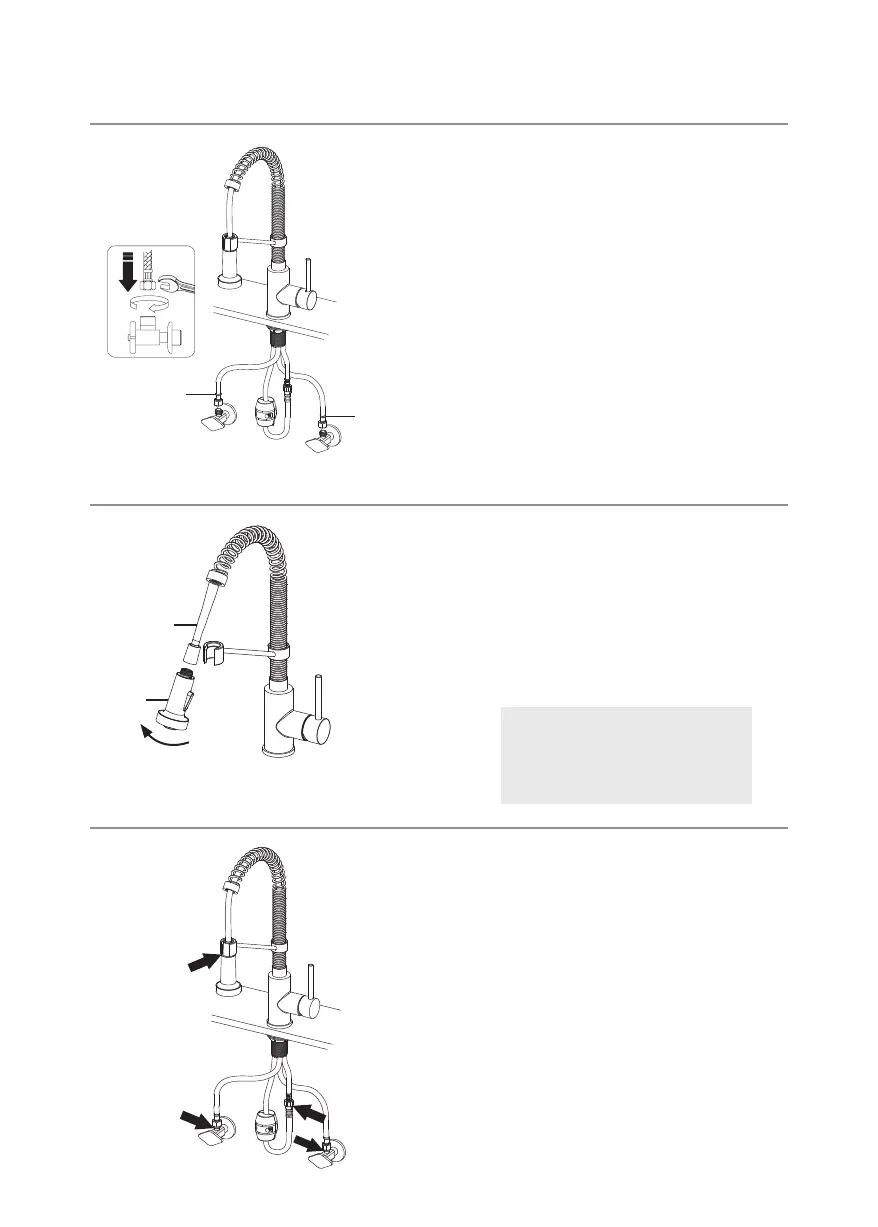

Step 5: Connect waterlines
NOTE: Please make sure
washer (7) is installed
attaching spray head to hose
1. Diagram and Parts List
Step1: Remove mounting hardware
Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight
Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose
1
6
1. Diagram and Parts List
Step1: Remove mounting hardware
Step2: Install faucet and mounting hardware
Step4: Attach spray hose and counterweight
Step5: Connect angle valve
Step3: Secure mounting hardware
Replacement Parts
Step 7: Flush spray hose
5B
5A
