Shut off main water supply before installing new faucet.

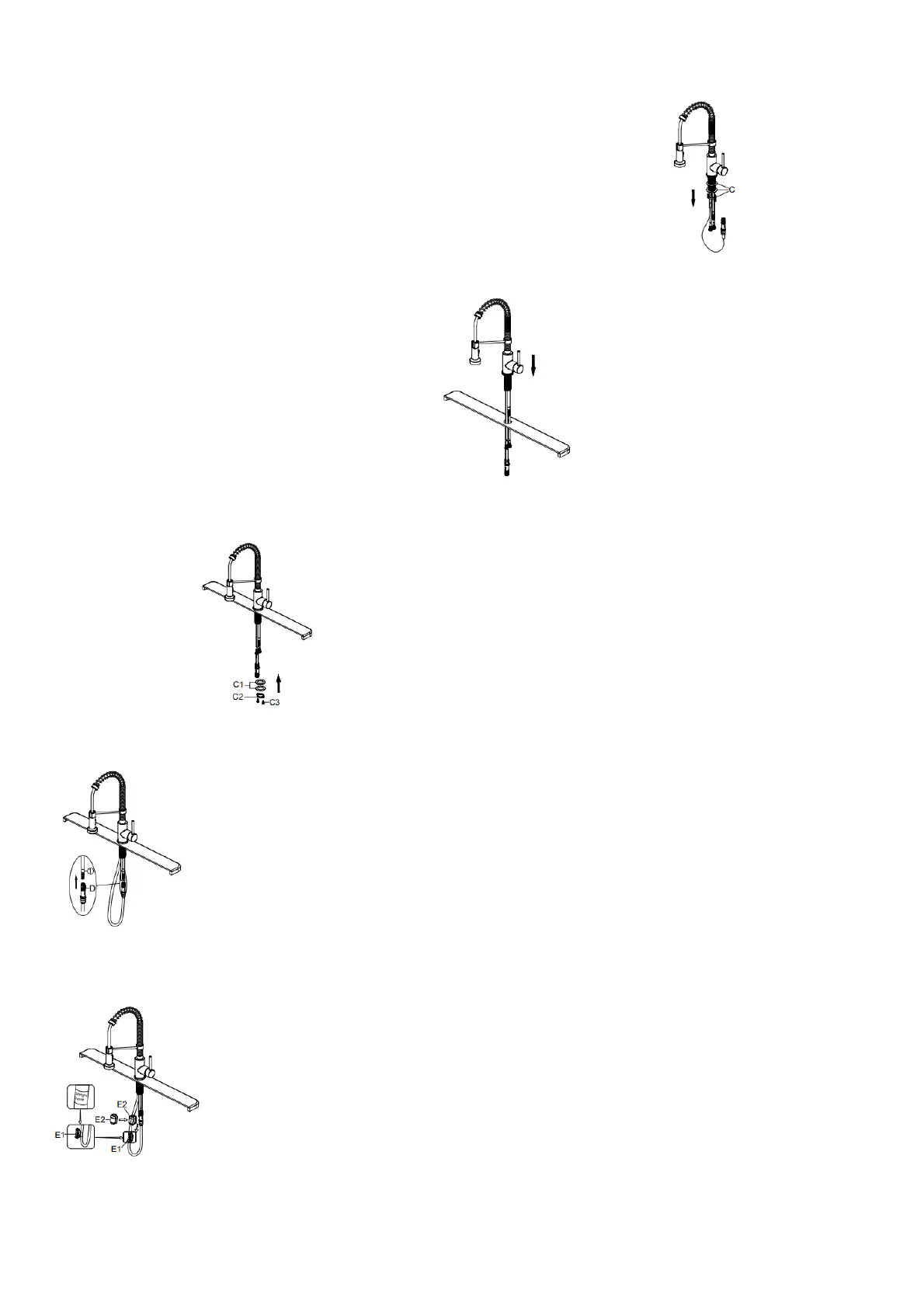

Step 1. Remove mounting hardware

Shut off the water supply. Remove the old faucet. Clean the mounting surface. Remove mounting hardware (C) from faucet body (B). Step 2. Installing the

faucet assembly

Optional No Escutcheon Installation. Insert faucet body through the hole in the sink.

Step 3. Securing the faucet assembly

Install the rubber washer and metal washer (C1) onto the threaded mounting shank. Thread the nut (C2) onto the mounting shank. Lock the nut (C2) into position by tightening the

screws (C3). Do not overtighten.

Step 4. Securing the faucet assembly

Push the quick connector (D) ﬁrmly upward and attach it to the receiving block (1). Pull down moderately to ensure the connection has been made.

Step 5. Securing the faucet assembly

Install the weight clip (E1) at the point of the hose marking “weight here”. Insert the weight (E2) onto the clip (E1) by sliding it down onto the clip (E1).

Step 6. Making the waterline connections

Thread the nut (1) on the supply line onto the outlet of the water supply valve and tighten with a wrench. Do not overtighten.
