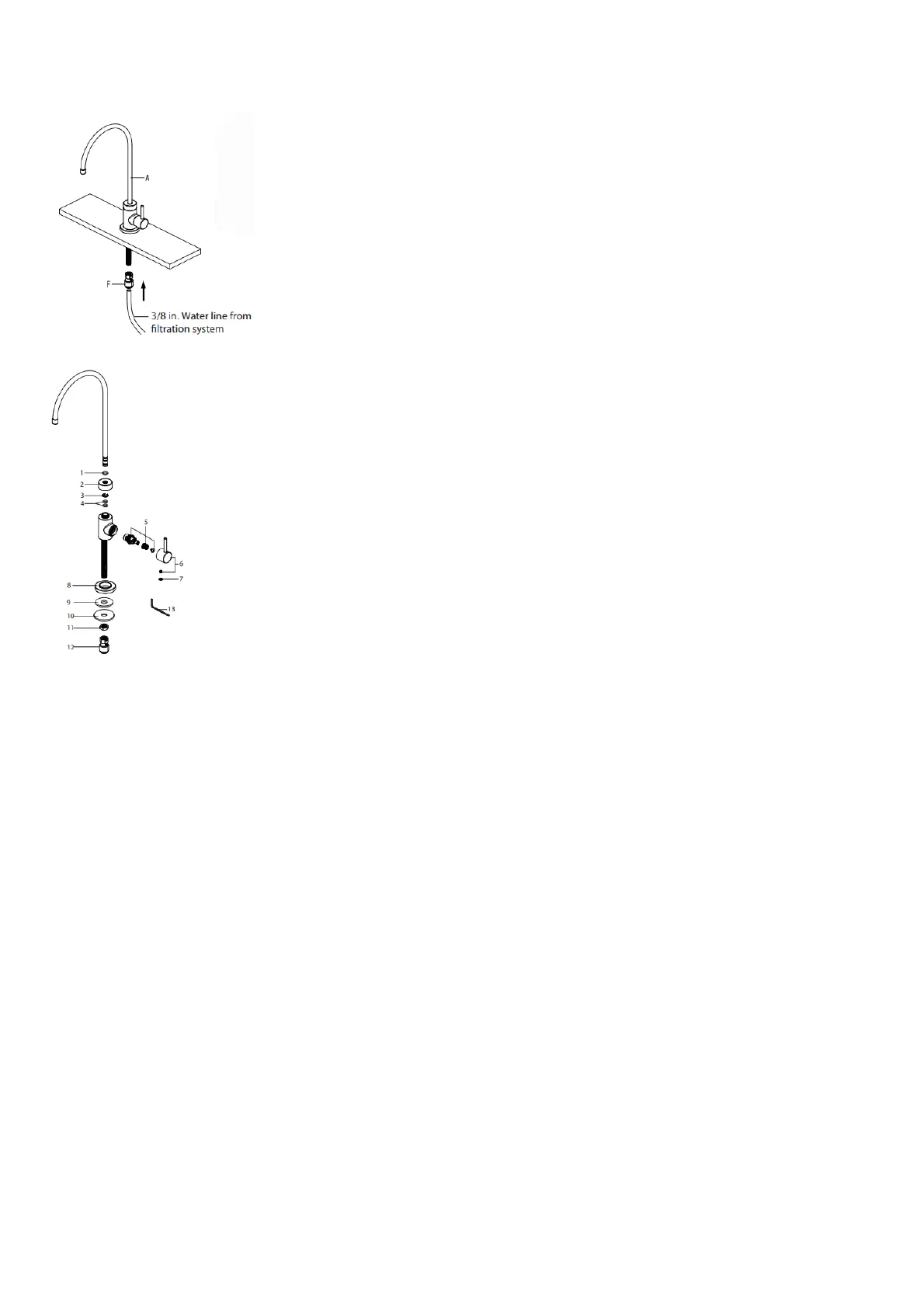

Step 3: Connecting the quick connect adaptor and water line Thread the quick connect adaptor (F) onto the end of the faucet assembly (A) stud, and tighten securely using a
wrench.
Connect the 3/8 in. water line from the filtration system by pushing the line into the connector (F). Pull down on the 3/8 in. line slightly to ensure the quick connect fitting has
engaged.
Replacement Parts
Replacement Parts List Finish / Color Part #
1. O-ring KP27168
2. Spout Nut
CH, SFS, MB, BG,
BB, SFACB, SFSB*
KP27169
3. Locking Ring KP27170
4. O-ring KP27171
6. Handle
CH, SFS, MB, BG,
BB, SFACB, SFSB*
KP27173
5. Cartridge KP27172
7. Index GR, BL* KP27194
8. Flange
CH, SFS, MB, BG,
BB, SFACB, SFSB*
KP27174
9. Rubber Washer KP27175
10. Metal Washer KP27176
11. Mounting Nut KP27177
12. Connector KP27178
*Denotes faucet component color options:
CH – Polished Chrome
SFS – Spot Free Stainless Steel
MB – Matte Black
BG – Brushed Gold
BB – Brushed Brass
SFACB – Spot Free Antique Champagne Bronze
SFSB – Spot Free Black Stainless
GR – Grey
BL – Black
Trouble – Shooting
If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps:
