0703 for a replacement.
Turn off the hot and cold water supply at the angle stops and turn on the old faucet to release any built-up pressure. Remove existing faucet. Clean sink or countertop to
remove any debris, plumber’s putty, or silicone.
Flush angle stops to release any debris prior to installation.
Pre-drilled hole size requirement: 1 3/8″ (min)
Max countertop thickness: 1 3/4”
For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or Customerservice@kraususa.com

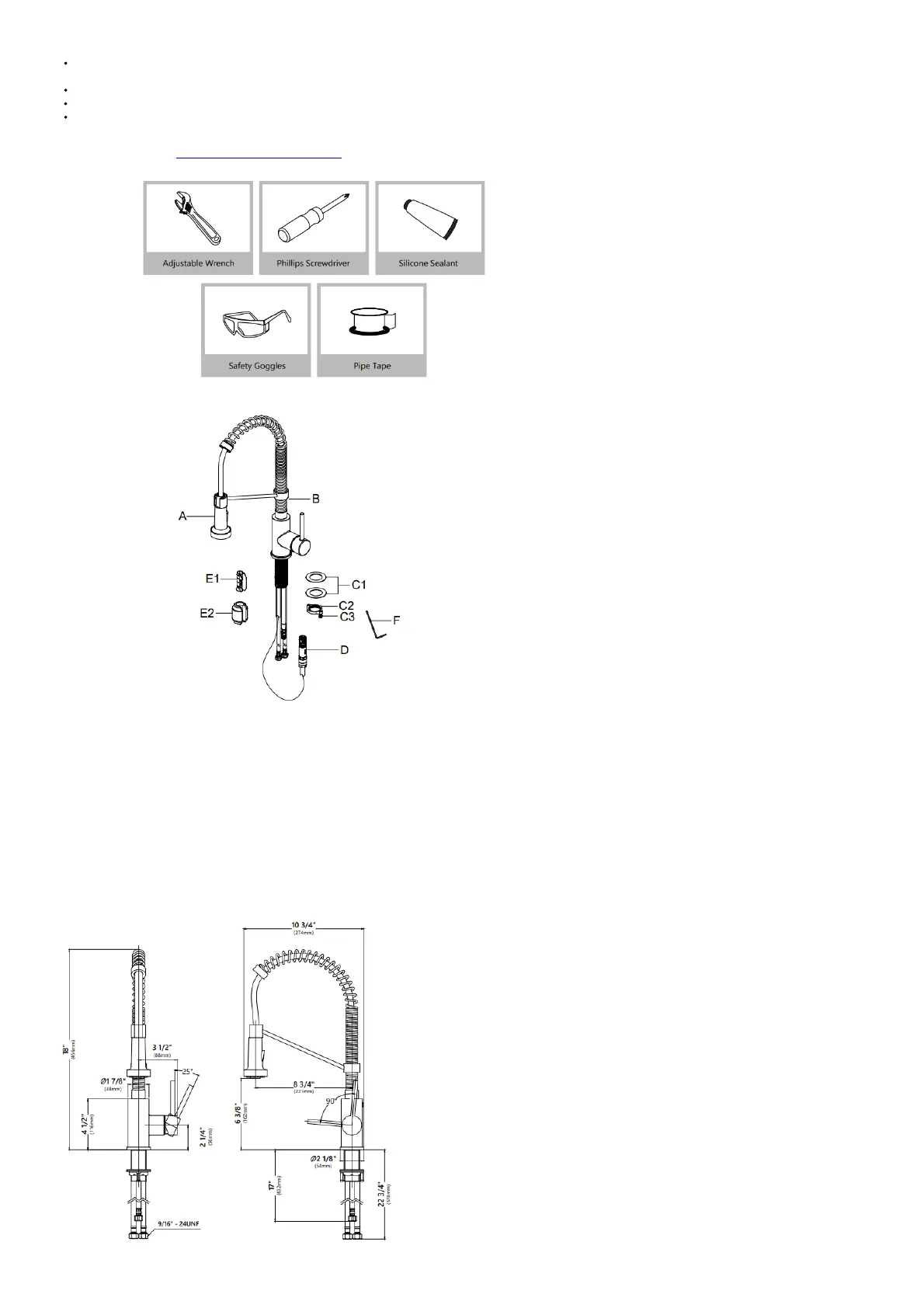

Tools Required
Diagram and Parts List
A. Spray Head
B. Faucet Body
C. Mounting Hardware
• Rubber & Metal Washer
• Mounting Nut
• Mounting Screws
D. Quick Connector
E. Weight
• Weight Clip
• Weight
F. 2.5mm Hex Wrench
Faucet Dimension
Installer Tip:
